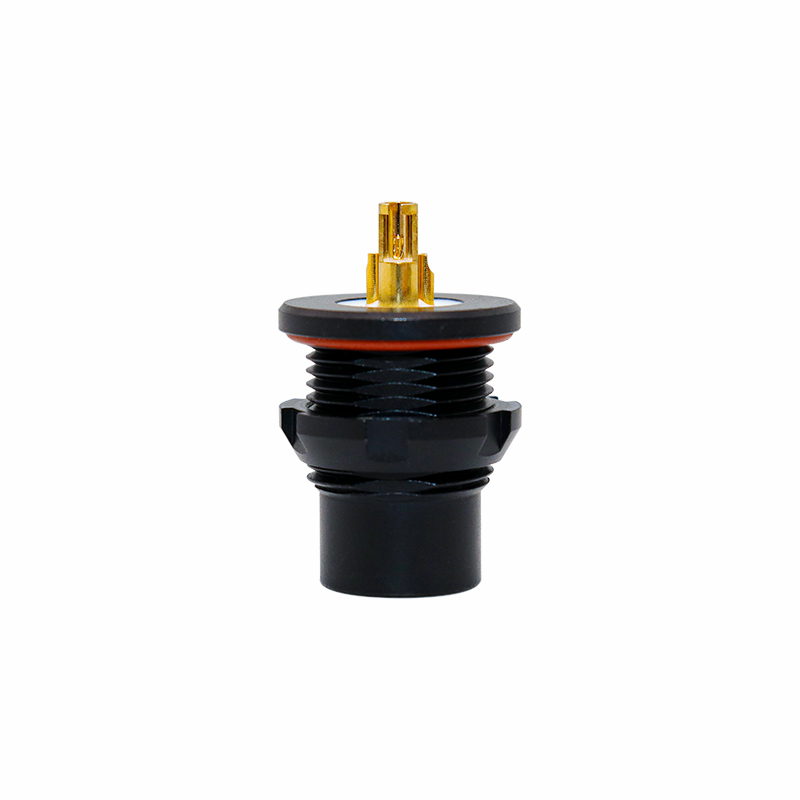

HEN.1F.803.KLL is a customized 1-coax 3-signal connector with an IP68 waterproof rating in the mated state. All materials are RoHS compliant. Pin Configuration can be adjusted according to customer's requirements.
Excellent weather resistance, operating temperature ranges from -55℃ to 200℃, withstands ≤95% high humidity at 60℃, resists 60bar high pressure, passes 96-hour salt spray test, and adapts to various harsh working conditions.
Outstanding shielding performance with 75dB at 10MHz and 40dB at 1GHz, effectively resists electromagnetic interference, ensures stable signal transmission, and is suitable for high-precision equipment.
High-quality electrical parameters, including 1 channel 50Ω coaxial + 3 channels low-voltage pins, contact resistance ≤5mΩ/15mΩ, rated current 7A, withstand voltage 875V(AC), with low transmission loss.
Robust mechanical performance, resistant to 15g vibration (10Hz~2000Hz) and 100g shock (6ms), mechanical mating life of 5000 cycles, and IP68 waterproof rating in mated state.
Durable and compliant materials, gold-plated beryllium copper contacts, black chrome-plated brass housing, PPS+PTFE insulation materials, all materials comply with RoHS requirements.
Parameters | Specifications |
Operating Temperature | -55°C~150°C |
Humidity(max) | <=95%[at 60°C/140°F] |
Salt Spray Corrosion | 96hr |
Vibration | 15g[10Hz~2000Hz] |
Insulation Resistance | 5000mΩ[at 5000V AC] |
Withstand Voltage | 875V |
Housing Material | Black Chrome Plated Brass |
Insulator Material | PPS+PTFE |
Contact Material | Gold-plated Beryllium Copper |
Contact Diameter | 0.5mm&0.9mm |
Rated Current | 7A |
Insulator Resistance | 5000 mΩ[at 5000V AC] |
Contact Resistance | <=12.5 mΩ |
IP Rate | TIP68(Mated) |
Industrial automation field, adapted to industrial robots, PLC, servo systems and other equipment, the vibration and interference resistance ensure stable signal and power transmission in industrial sites.
Precision detection field, used in semiconductor testing instruments and precision measuring equipment, high shielding and low contact resistance ensure accurate detection data and distortion-free transmission.
Marine engineering field, suitable for marine detection equipment and underwater monitoring terminals, the performance of high pressure resistance, salt spray resistance and IP68 waterproof adapts to the harsh marine environment.
Aerospace field, matched with aerospace ground test equipment and aviation airborne terminals, wide temperature weather resistance and high mechanical strength meet the needs of aerospace extreme working conditions.
High-end medical field, used in medical precision diagnosis and treatment equipment and medical testing instruments, compliant materials and stable transmission adapt to the high standards of medical scenarios.
It can withstand a maximum environmental pressure of 60bar (870psi) and reaches IP68 waterproof rating in the mated state, combined with 96-hour salt spray corrosion resistance. These performance features make it effectively resist water intrusion and pressure impact, perfectly adapted to high-pressure and deep-water application scenarios such as marine detection and underwater monitoring.
Equipped with 0.5mm and 0.9mm dual-diameter contact pins with contact resistance ≤5mΩ and ≤15mΩ respectively, the pins match different low-voltage transmission demands. Gold-plated beryllium copper material ensures excellent conductivity and low transmission loss, and cooperates with 50Ω coaxial core to realize efficient and stable transmission of multi-spec signals and power.
It has an ultra-wide operating temperature range of -55°C to 200°C, with high-temperature resistant PPS+PTFE insulation material and high-strength metal shell. It can maintain stable mechanical structure and electrical performance in extreme cold and high-temperature environments, meeting the transmission needs of aerospace ground testing and high-temperature industrial equipment.
