QM Metal Push Pull Connectors are high-reliability circular connectors designed for demanding applications that require strong mechanical durability, secure mating, stable signal transmission and long service life. Built with high-quality metal housings and precision-engineered internal structures, this product range is suitable for medical equipment, industrial systems, outdoor devices, security and defense equipment, optical instruments, transportation systems and other professional applications.
Most QM metal push pull connectors support up to 10,000 mating cycles, making them suitable for high-load, frequent-connection and long-term operating environments. For harsh conditions such as outdoor installations, humid environments, underwater applications, vibration-intensive equipment and vacuum-related systems, IP68-rated variants, low-leakage structures, flange-mount designs and anti-rotation locking options are available.
The series also supports advanced electrical and hybrid transmission requirements. With high-performance PEEK inserts, QM metal connectors provide excellent insulation performance, stable signal integrity and strong adaptability for customized contact layouts. Optional customized inserts can support 10G high-speed signal transmission and hybrid integration such as optoelectronic, coaxial, high-low voltage, fluid-electric and pneumatic-electric configurations.
Key Features
Rugged metal housing
Provides excellent mechanical strength, durability and protection for demanding professional equipment.
Up to 10,000 mating cycles
Suitable for applications requiring frequent connection, disconnection and long-term reliable operation.
Reliable push-pull self-latching mechanism
Enables fast mating and secure locking while reducing the risk of accidental disconnection.
IP68-rated options available
Suitable for outdoor, humid, underwater and harsh-environment applications requiring enhanced sealing performance.
Low-leakage options for special environments
Available for vacuum-related or sealed-system applications where leakage control is important.
Flange-mount design options
Provide stronger installation stability for panel-mounted equipment and fixed device interfaces.
Anti-rotation ratchet locking structures
Help improve connection security and installation reliability in vibration or high-load environments.
Ultra-miniature lightweight options
00B, 00U and 00T series options are available for compact and weight-sensitive equipment such as infrared telescopes and night-vision devices.
PEEK connector inserts
Deliver excellent insulation performance, high stability and reliable signal integrity for precision applications.
10G high-speed signal support
Customized inserts can support high-speed signal transmission for advanced electronic and data systems.
Hybrid transmission capability
Supports optoelectronic, coaxial, high-low voltage, fluid-electric and pneumatic-electric hybrid connector designs.
Compatible replacement support
B, T and K series are designed for compatibility with major international connector brands, with free compatibility testing available.

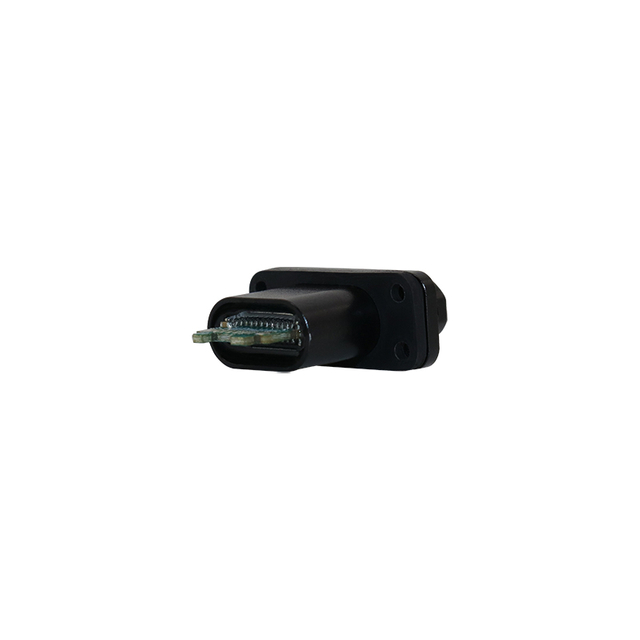

Patented flat push-pull Type-C option
QM's flat push-pull Type-C connector combines compact design, high integration and secure self-latching performance for portable equipment.
Applications
QM Metal Push Pull Connectors are suitable for equipment that requires strong mechanical protection, stable transmission and reliable performance in frequent-use or harsh operating environments.
Typical applications include:
Medical devices and surgical equipment
Industrial automation systems
Outdoor instruments and monitoring equipment
Security and defense equipment
Infrared telescopes
Night-vision helmets
Optical and optoelectronic devices
Underwater and marine equipment
Vacuum-related systems
Transportation and rail systems
Test and measurement instruments
Robotics and unmanned systems
Portable high-integration equipment
Semiconductor and precision electronic equipment
Compared with plastic push pull connectors, metal push pull connectors are more suitable for applications requiring higher mechanical strength, longer mating life, stronger environmental resistance, shielding performance and advanced hybrid transmission capability.
Custom Options
QM provides flexible customization for metal push pull connectors according to application environment, signal type, installation structure and replacement requirements.
Available custom options include:
Custom contact layouts
High-density pin configurations
10G high-speed signal inserts
PEEK insert customization
IP68 waterproof structure
Low-leakage sealing structure
Flange-mount receptacle options
Anti-rotation locking structure
Ultra-miniature lightweight designs
Optoelectronic hybrid configurations
Coaxial hybrid configurations
High-low voltage hybrid configurations
Fluid-electric hybrid solutions
Pneumatic-electric hybrid solutions
Cable assembly and wire soldering support
Compatibility testing for B / T / K series replacement projects
Custom flat push-pull Type-C connector solutions
For harsh-environment or replacement projects, customers can provide the original connector model, operating environment, sealing requirement, pin count, signal type, mating cycle requirement, cable specification and installation method. QM can help recommend a suitable metal push pull connector series or custom configuration.
Need a rugged metal push pull connector?
Send us your original connector model, pin count, signal type, current and voltage requirement, waterproof rating, leakage requirement, cable specification, installation method and application environment. QM can help recommend a suitable Metal Push Pull Connector series or develop a custom hybrid solution for your equipment.
FAQ
What are metal push pull connectors used for?
Metal push pull connectors are used in professional equipment that requires secure locking, high durability, stable signal transmission and strong environmental resistance. Typical applications include medical devices, industrial systems, outdoor equipment, defense devices, optical instruments, marine systems and test equipment.
How are metal push pull connectors different from plastic push pull connectors?
Plastic push pull connectors are often selected for lightweight medical, diagnostic and compact equipment. Metal push pull connectors are more suitable for applications requiring stronger mechanical protection, longer mating life, better shielding, improved sealing and harsh-environment durability.
How many mating cycles do QM metal push pull connectors support?
Most QM metal push pull connectors support up to 10,000 mating cycles, making them suitable for frequent connection and long-term professional use.
Are IP68 waterproof metal push pull connectors available?
Yes. QM offers IP68-rated metal connector variants for outdoor, humid, underwater and harsh-environment applications. The final sealing solution can be selected according to the equipment structure and operating conditions.
Can QM metal connectors support high-speed signal transmission?
Yes. Customized inserts can support 10G high-speed signal transmission, helping meet the needs of advanced electronic, data, imaging and precision equipment applications.
Do QM metal connectors support hybrid transmission?
Yes. QM can customize hybrid metal push pull connectors that integrate optoelectronic, coaxial, high-low voltage, fluid-electric or pneumatic-electric transmission into one connector interface.
Are QM B, T and K series connectors compatible with international brands?
Yes. QM B, T and K series are designed for compatibility with major international push pull connector brands. Free compatibility testing can be provided based on customer samples, drawings or part numbers.
What information should I provide for connector selection?
You can provide the application environment, pin count, signal type, current and voltage requirements, waterproof or sealing requirement, cable specification, installation method, original connector model and expected mating cycle requirement.
