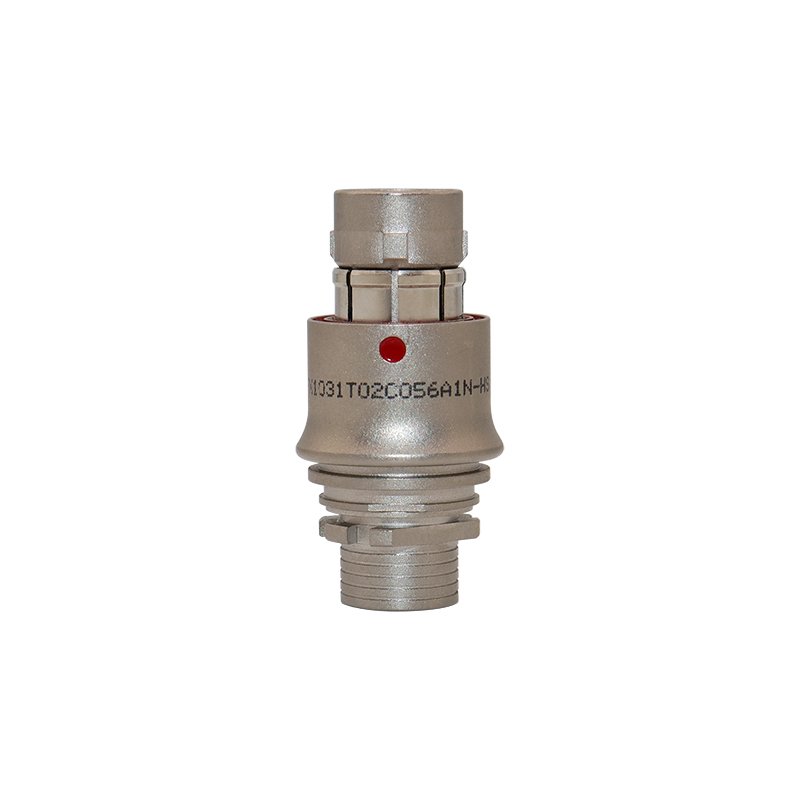

FX1031T02C056A1N-HS
QM (QUANMA)
| Quantity: | |
|---|---|
As one hybrid precision member of ZLY connector lineup, this model adopts partitioned insert layout with different-diameter pins. Modified PEEK insulator physically separates power and signal channels to eliminate electromagnetic crosstalk induced by high-current loads. Its CNC-machined shell is made of black-chrome coated brass while lock accessories use nickel-plated brass, and low-temperature cured special sealant filled inside limits gas leakage down to 10⁻⁶mbar·l/s for wiring inside vacuum chambers and pressure-resistant instruments. Gold-plated tin bronze is adopted for all conductive components; finished products pass rigorous reliability tests including 96h neutral salt spray, alternating damp heat and 300g instantaneous shock, supporting over 5000 stable mating cycles. The integrated full-perimeter shielding ring brings graded EMI attenuation: 75dB shielding efficiency at 10MHz and 40dB at 1GHz. Electric specifications differ per pin dimension: 2A for Φ0.5mm pins and 7A for Φ0.7mm counterparts, with 900V AC rated withstand voltage and ≥5000MΩ insulation resistance. Stable performance is guaranteed within -55℃~125℃ and ≤95%RH @60℃ without parameter drift. Its multi-circuit integrated design replaces scattered discrete connectors to save cabinet wiring space, and customized pin assignment & cable outlet are available according to clients’ PCB drawing and panel opening dimension.
Ten power plus two signal pins are integrated inside one single insert to replace separate power and signal connectors, cutting internal installation space and simplifying harness routing for lightweight and compact optoelectronic equipment development.
Full mated connector meets IP68 rating against temporary submersion and dust intrusion, while internal customized potting realizes ultra-low gas leakage at 10⁻⁶mbar·l/s for inert-gas sealed cabins and vacuum inspection instruments requiring strict airtightness.
Reinforced insert locating structure withstands 300g transient shock within 6ms to adapt bumpy UAV flight and high-frequency vibration of field mobile equipment; push-pull latches remain intact after 5000 insertions to avoid unexpected disconnection during equipment operation.
Integrated annular metal shielding filters wideband stray interference with graded attenuation from low RF to GHz range, ensuring distortion-free transmission of HD video and low-speed control weak signals.
Combination of black-chrome brass housing, gold-plated tin bronze contacts and high-temperature PEEK insulator passes 96-hour salt spray test; electric parameters stay stable under extreme temperature fluctuation and high humidity sealed surroundings.
Two kinds of pins are designed with differentiated rated current and contact resistance: ≤15mΩ for Φ0.5mm and ≤12.5mΩ for Φ0.7mm alongside steady 5000MΩ insulation resistance to separate power and signal loads and prevent circuit overheating failure.
Parameters | Specifications |
Operating Temperature | -55°C~125°C |
Humidity(max) | <=95%[at 60°C/140°F] |
Salt Spray Corrosion | 1000hr |
Shielding | 55dB(1GHz) |
Mating Cycles | 5000+ times |
Contact Material | Gold Plated Tin Bronze |
Housing Material | Dark Nickle Plated Brass |
Insulator Material | PEEK |
Other Shell Material | Nickel-plated Brass |
Contact Diameter | 0.5mm * 10pin 0.7mm * 2pin |
Shock Resistance | 2940m/s2,<=1us Instantaneous Interruption |
Rated Current | 0.5: 2A 0.7: 7A |
Rated Voltage | 900V AC |
Insulator Resistance | >=5000 mΩ[at 500V DC] |
IP Rate | IP68(Mated) |
Differential Transmission Rate | 250Mbps |
Designed for mapping and ground-detection UAV pods to integrate onboard power supply, gimbal servo control and HD video backhaul wiring. Superior shockproof performance offsets airborne bump while IP68 sealing prevents erosion from high-altitude rain and condensation.
Applied on thermal imaging and laser ranging binocular devices; compact dimension reduces inner lens space and full shielding blocks outdoor RF interference to realize integrated wiring of imaging power and ranging signals.
Matched with individual night vision goggles and portable geological prospecting detectors; quick push-pull lock simplifies field disassembly and maintenance, and wide-temperature adaptability fits frigid desert and humid tropical field conditions.
Deployed on frontier inspection terminals, anti-UAV detectors and mobile field command devices; high airtightness plus full shielding resists field dust, moisture and EMI to maintain stable data communication under harsh combat surroundings.
Installed on field environmental monitors, industrial analytical instruments and geological sampling equipment; pressure and damp resistance adapts to drastic outdoor temperature shift and temporary water immersion, and hybrid layout optimizes internal harness design.
Serves as interconnect port for aerospace ground simulation benches and miniature satellite auxiliary equipment; ultra-high airtightness fits inert-gas sealed test chambers and outstanding thermal-shock resistance meets system reliability verification standards.
Part Number | Meaning FX | 102 | T02 | F | 056 | A1 | N | - | H | S | 01 |
Shell Code | 101-102-103-1031-104-105-106 | ||||||||||
Gender | T02-Male Z02-Female | ||||||||||
Housing Material | Aluminum alloy, satin nickel plating -F; Aluminum alloy, pearl chrome plating -XC | ||||||||||
Copper alloy, satin nickel plating -C; Copper alloy, pearl chrome plating -CC | |||||||||||
Copper alloy, black chrome plating -K | |||||||||||
Contact Code | Please contact us | ||||||||||
Contact Form | Pin-A1 Hole-B1 | ||||||||||
Key Positioning | N-A-B-C | ||||||||||
Separator | - | ||||||||||
Welding Method | Welding-H | ||||||||||
Straight PCB Pin | |||||||||||
Right-angle PCB Pin | |||||||||||
Optional grounding tab for plug | No Grounding Tab-0 | ||||||||||
With Grounding Tab-1 | |||||||||||
Cable type optional for socket | Molded Type-S | ||||||||||
Clamp Type-J | |||||||||||
Variables | 01\02\03... | ||||||||||
