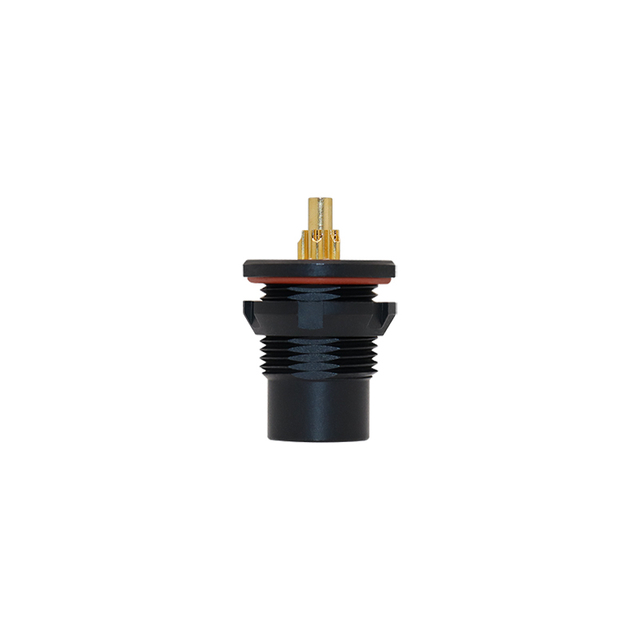

Product QM Coaxial Hybrid Push Pull Connectors are customized high-performance interconnect solutions designed for precision coaxial signal transmission in harsh and demanding environments. By integrating one coaxial channel with multiple signal channels in a single push-pull connector interface, this solution supports stable transmission for equipment that requires both high-quality coaxial signals and standard electrical signal connections.
This connector is suitable for industrial automation, precision testing equipment, marine engineering systems, aerospace devices and high-end medical equipment where signal clarity, shielding performance and environmental reliability are critical. The coaxial channel can be combined with customized signal layouts according to the customer’s equipment structure, transmission requirements and application conditions.
With superior electromagnetic shielding, optimized contact design, low contact resistance and low transmission loss, QM coaxial hybrid connectors help suppress external interference and maintain clear, stable and low-distortion signal transmission. IP68 waterproof protection when mated, together with resistance to temperature variation, humidity, pressure, salt spray, vibration and shock, makes the connector suitable for underwater, high-humidity and harsh industrial environments.
Coaxial and signal hybrid integration
Integrates one coaxial channel and multiple signal channels into one compact push-pull connector interface.
Designed for precision signal transmission
Suitable for applications requiring clear, stable and low-distortion coaxial signal performance.
Low transmission loss
Optimized structure and material selection help reduce signal attenuation in demanding equipment systems.
Low contact resistance
Supports stable electrical performance and reliable long-term signal transmission.
Superior electromagnetic shielding
Helps suppress external interference and maintain signal integrity in high-interference environments.
Flexible configuration adjustment
Coaxial channel, signal contact layout and cable structure can be customized according to project requirements.
IP68 waterproof protection when mated
Suitable for high-humidity, underwater-related and harsh outdoor environments.
Resistance to high and low temperatures
Maintains stable performance across changing operating temperature conditions.
High-pressure environment support
Suitable for applications where the connector may face pressure-related working conditions.
Salt spray resistance
Supports use in marine, coastal and corrosion-prone environments.
Vibration and shock resistance
Maintains stable connection in aerospace, marine, mobile and industrial equipment.
Long mechanical service life
Designed for long-term and high-frequency use in professional equipment.
RoHS-compliant material options
Supports environmental compliance requirements for industrial and medical equipment projects.
Need a coaxial hybrid push pull connector for precision testing, RF signal, marine engineering, aerospace or medical equipment? Contact QM!
A coaxial hybrid push pull connector is a customized connector that integrates one coaxial channel and multiple electrical signal channels into one push-pull locking interface. It is used when equipment requires coaxial signal transmission together with additional signal or control connections.
Coaxial hybrid connectors are suitable for industrial automation, precision testing, marine engineering, aerospace, medical equipment, RF signal systems and other applications requiring stable coaxial signal transmission in demanding environments.
A standard signal connector usually transmits ordinary electrical signals, while a coaxial hybrid connector includes a dedicated coaxial channel for precision signal transmission and can also integrate additional signal contacts in the same interface.
Shielding helps suppress external electromagnetic interference and maintain clear, stable and low-distortion signal transmission, which is especially important for RF, coaxial and precision measurement applications.
Yes. QM can customize the coaxial channel, signal contact layout, shielding structure, cable matching and connector interface according to the customer’s equipment requirements.
Yes. QM coaxial hybrid connectors can support IP68 waterproof protection when mated, making them suitable for high-humidity, outdoor, marine and underwater-related applications.
