Metal Push Pull Connectors for Reliable Plug-to-Receptacle Connections
QM metal push pull connectors combine rugged metal housings with fast self-locking operation. Cable plugs, panel receptacles and customized connector pairs are available for semiconductor, security, testing and other equipment requiring stable transmission and frequent connection.
QM Metal Push Pull Connector Solutions
QM metal push pull connectors provide a fast and dependable interface between a cable plug and an equipment receptacle. Once the plug is inserted, the push-pull self-locking mechanism secures the connection without requiring repeated rotation of a coupling nut. Pulling the release sleeve allows the connector to be disconnected quickly during equipment assembly, testing or maintenance.
The metal connector range includes miniature, waterproof, vibration-resistant, high-density, hermaphroditic and hybrid configurations. Plug and receptacle structures can be selected according to panel space, cable routing, contact quantity, signal type, waterproof requirements and expected mating frequency. Customized contact layouts, cable assemblies and special mounting structures are also available for application-specific equipment.
Explore QM Metal Push Pull Connectors
Why Choose QM Metal Push Pull Connectors?
Built for fast operation, secure mating and demanding equipment integration.

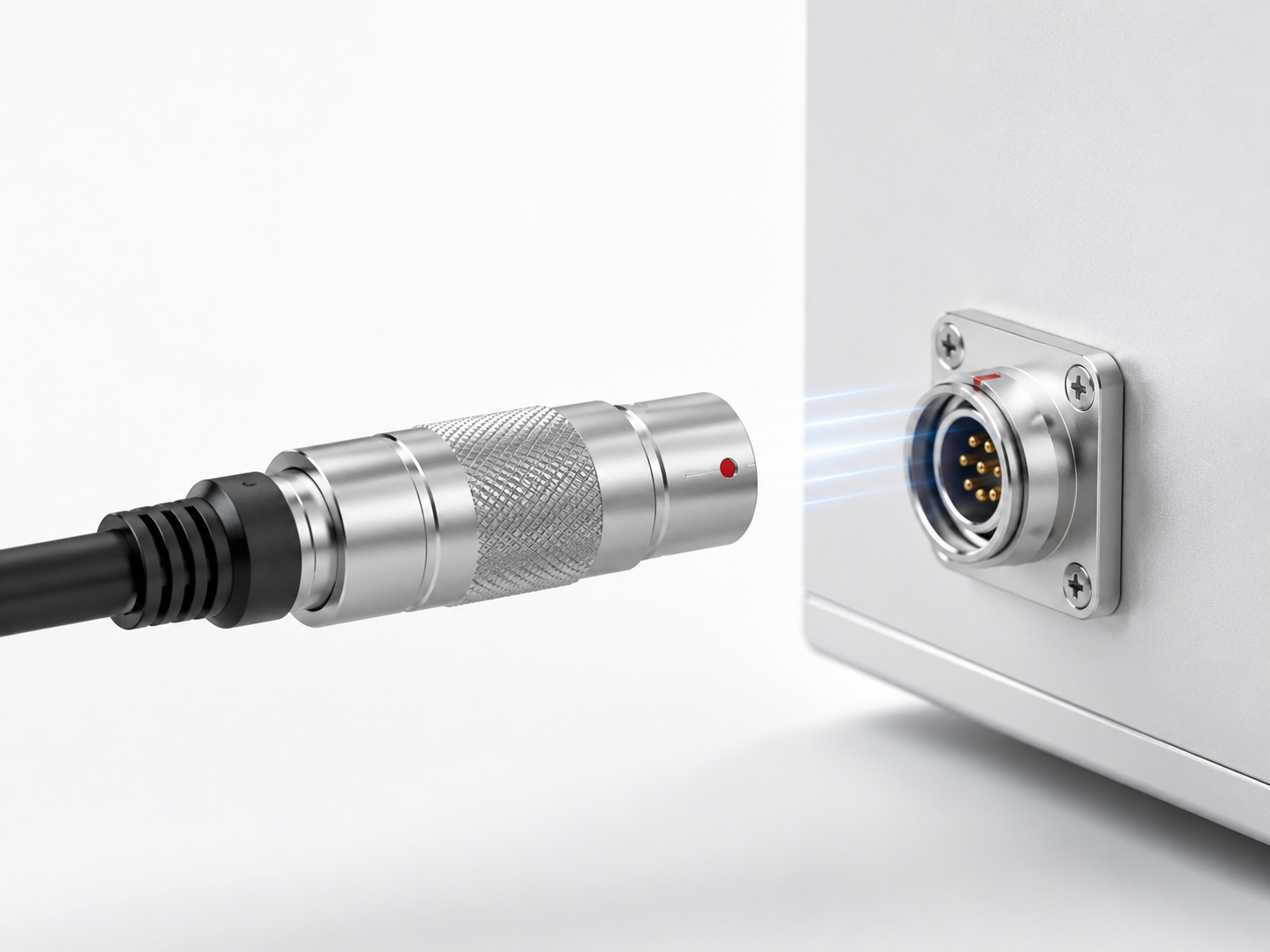

Fast and Secure Push-Pull Locking
Once the cable plug is pushed into the matching receptacle, the internal locking structure engages automatically. Pulling the cable alone does not normally release the connection. To disconnect, the operator pulls the outer sleeve to release the locking mechanism and then removes the plug smoothly.

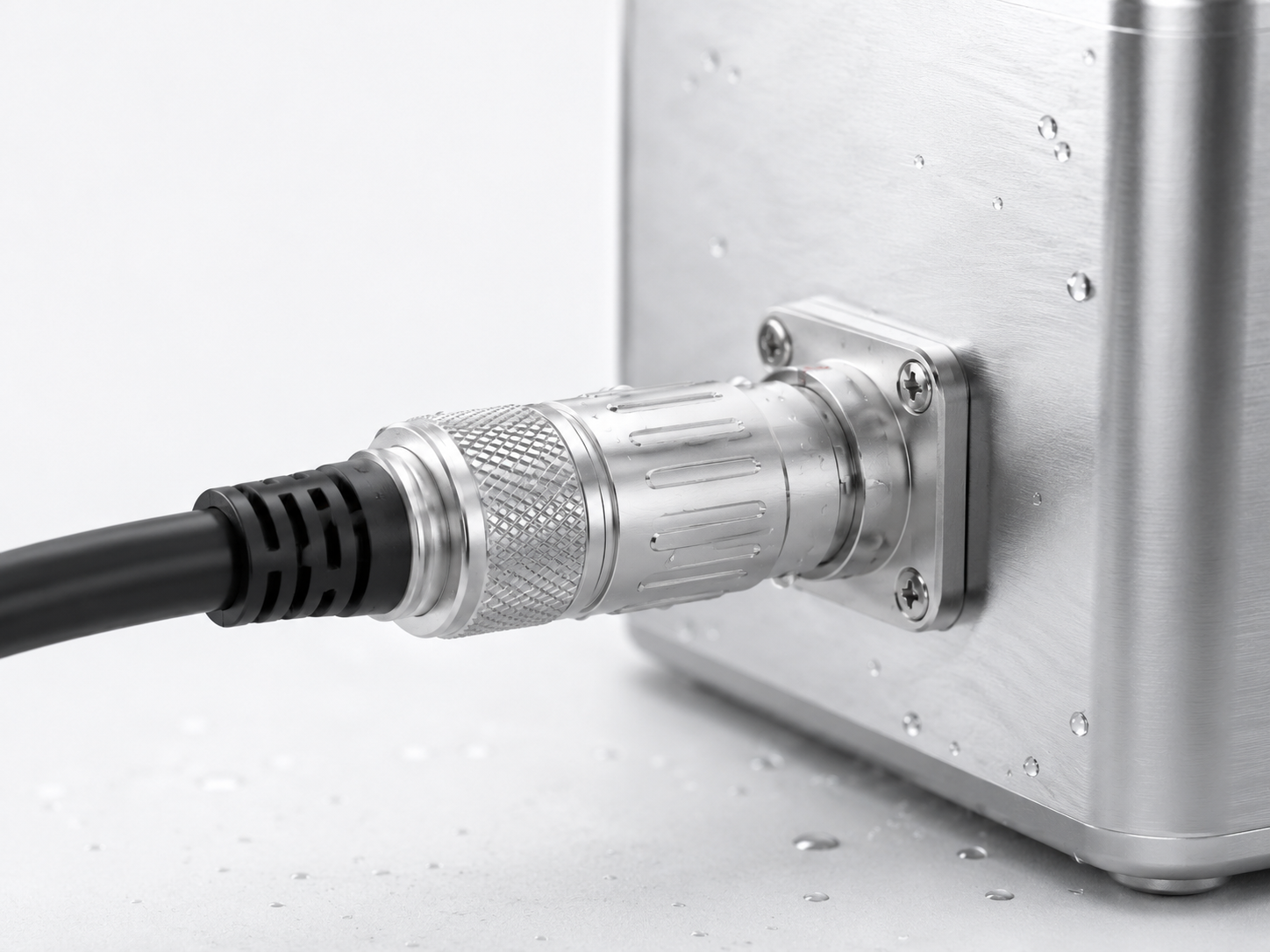

Rugged Metal Housing Protection
The metal housing provides mechanical protection for internal contacts and insulating components. It is suitable for equipment requiring higher structural strength, frequent mating and enhanced environmental resistance. Selected configurations also support IP68 sealing, low-leakage structures, vibration-resistant designs and stable panel installation for demanding operating conditions.
Metal Connector Capability Guide
Final specifications vary by connector series and project requirements.

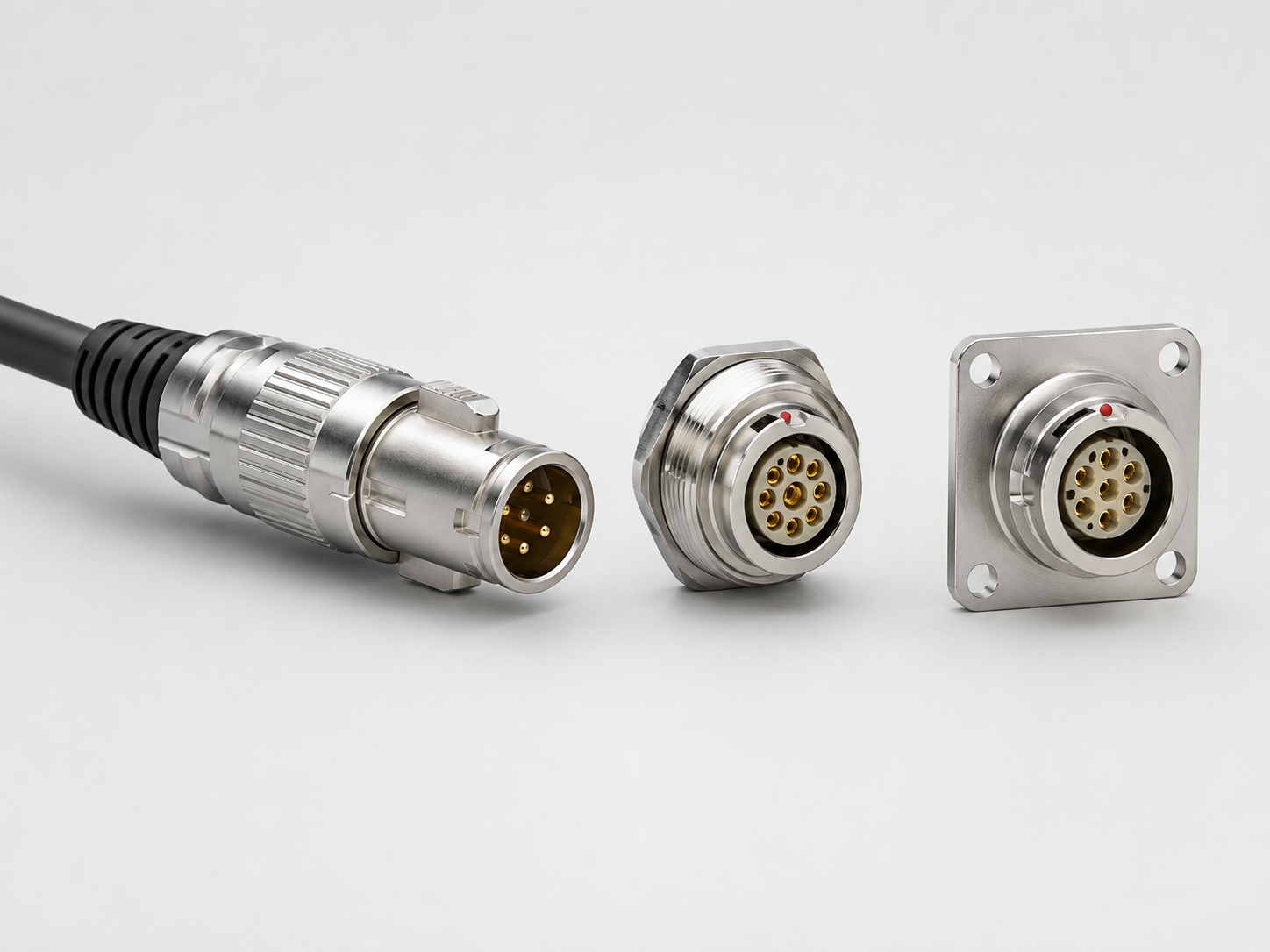

Mechanical Configuration
QM metal connectors combine a rugged housing with push-pull self-locking operation. Most QM metal push pull connectors support up to 10,000 mating cycles. Final mechanical life depends on the selected connector series and product configuration.
Capability Points:
Cable plug configurations
Panel receptacle configurations
Flange-mount receptacle options
Push-pull self-locking
Anti-rotation options
Up to 10,000 mating cycles

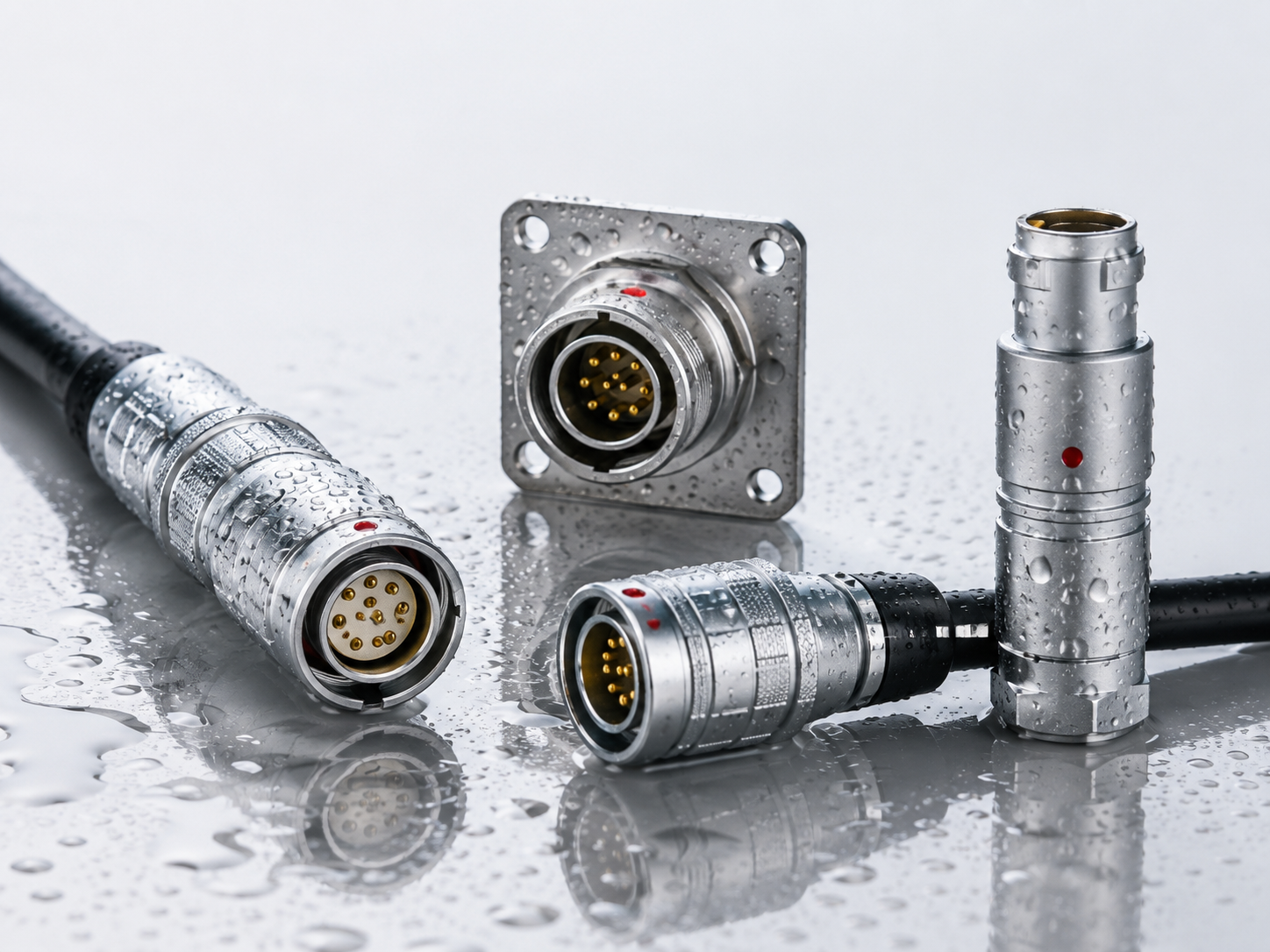

Environmental Protection
Selected connector configurations are available for outdoor, humid, underwater, vibration-intensive, vacuum-related and sealed equipment. The required structure should be confirmed together with the panel installation and cable outlet design.
Capability Points:
IP68-rated options
Low-leakage structures
Vibration-resistant designs
Stable flange mounting
Waterproof cable integration
Harsh-environment adaptation

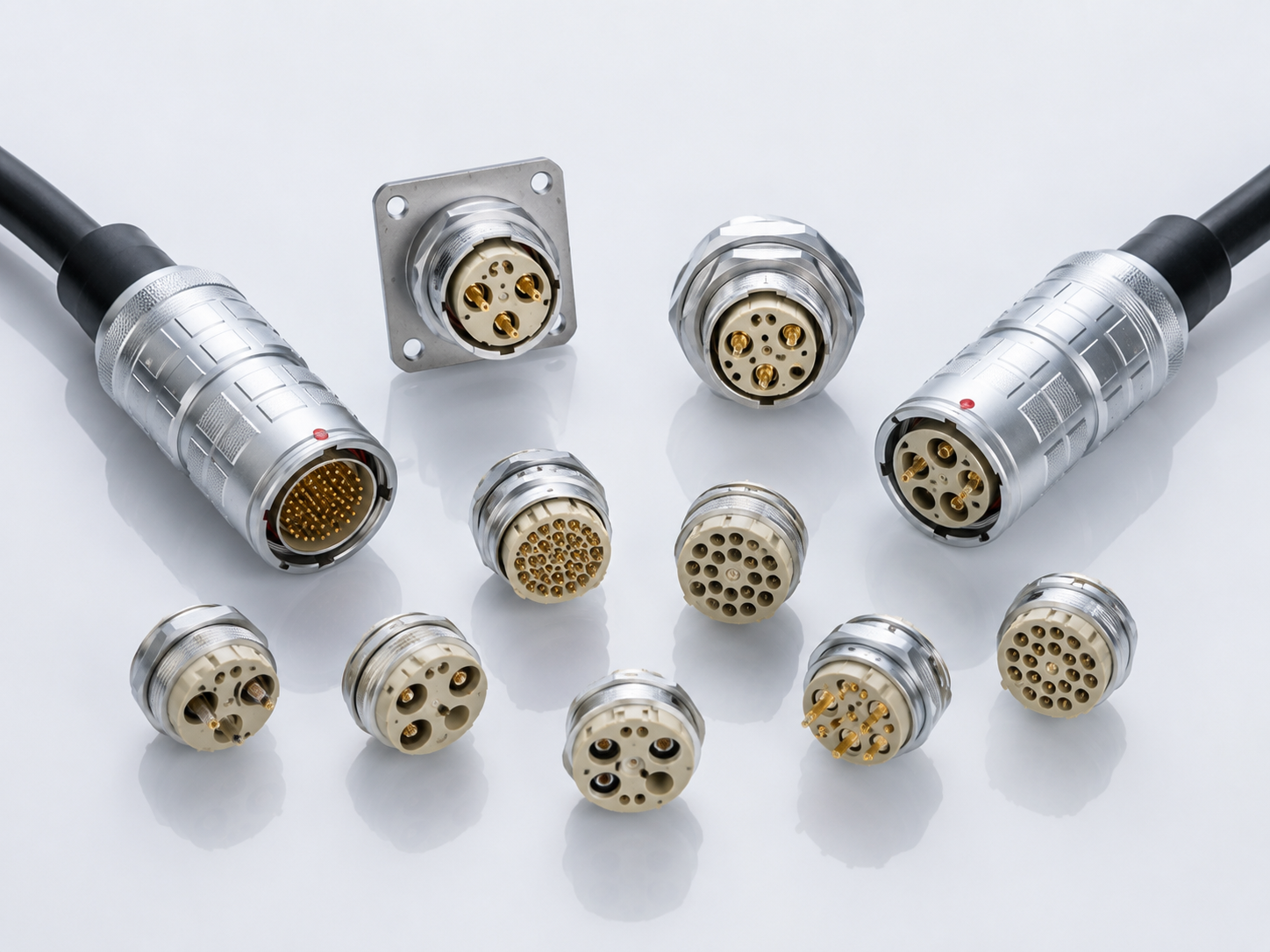

Transmission Integration
QM metal connectors can be configured for standard signals, power and advanced hybrid transmission. Customized inserts and contact arrangements allow multiple transmission functions to be combined within a compact equipment interface.
Capability Points:
High-density contacts
PEEK insert customization
10G signal insert options
Optical-electrical hybrid
Coaxial hybrid
High-low voltage hybrid
Contact Us
Metal Push Pull Connectors for Critical Equipment

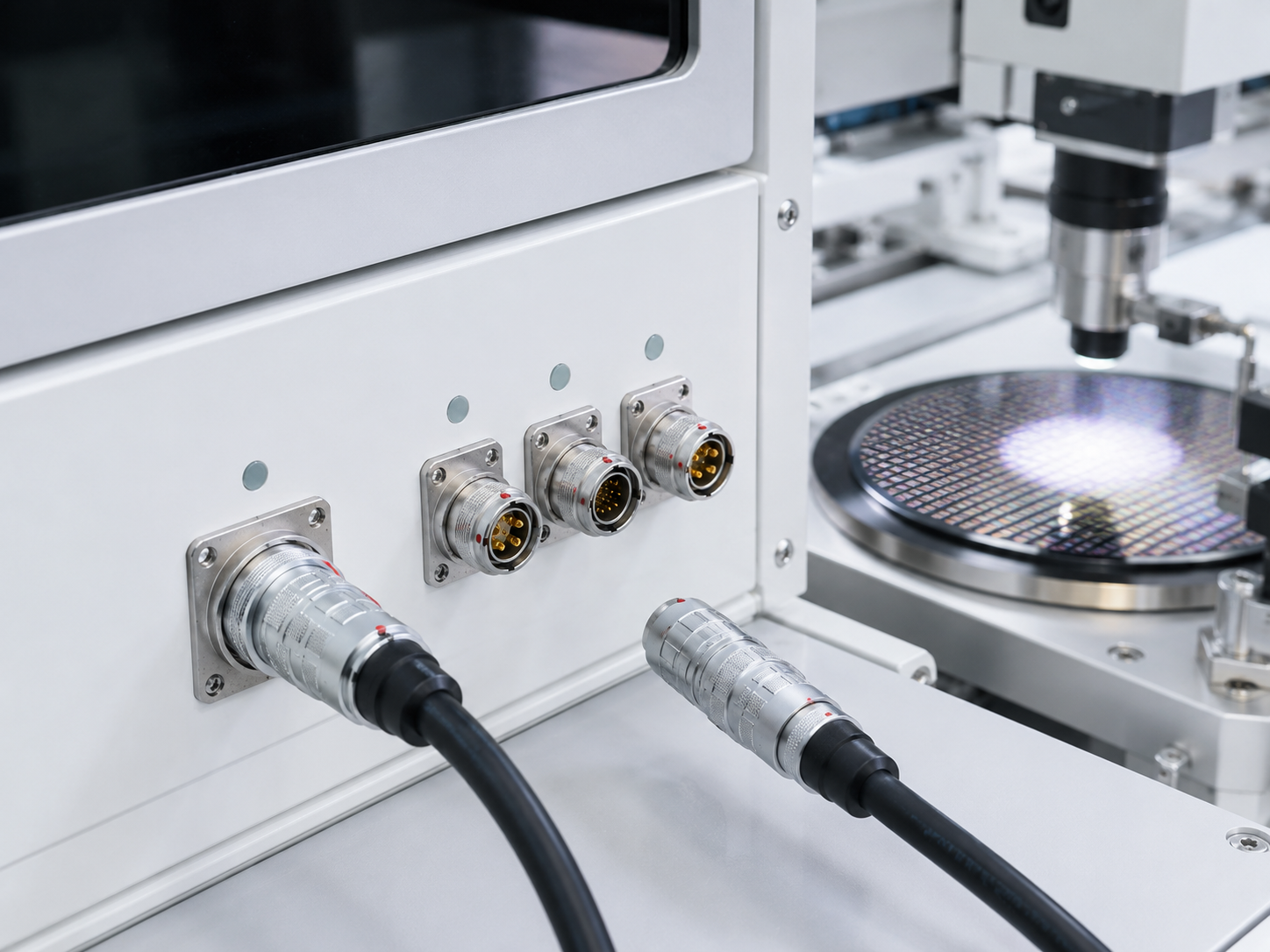

Semiconductor Equipment
Semiconductor production and testing equipment may require compact interfaces, reliable shielding, high cleanliness, low-leakage structures and stable high-speed signal transmission. QM metal push pull connectors can connect removable cable assemblies to fixed equipment receptacles while supporting customized contact layouts, flange mounting and hybrid transmission. The final connector structure can be matched to equipment space, signal type, sealing requirement and maintenance frequency.

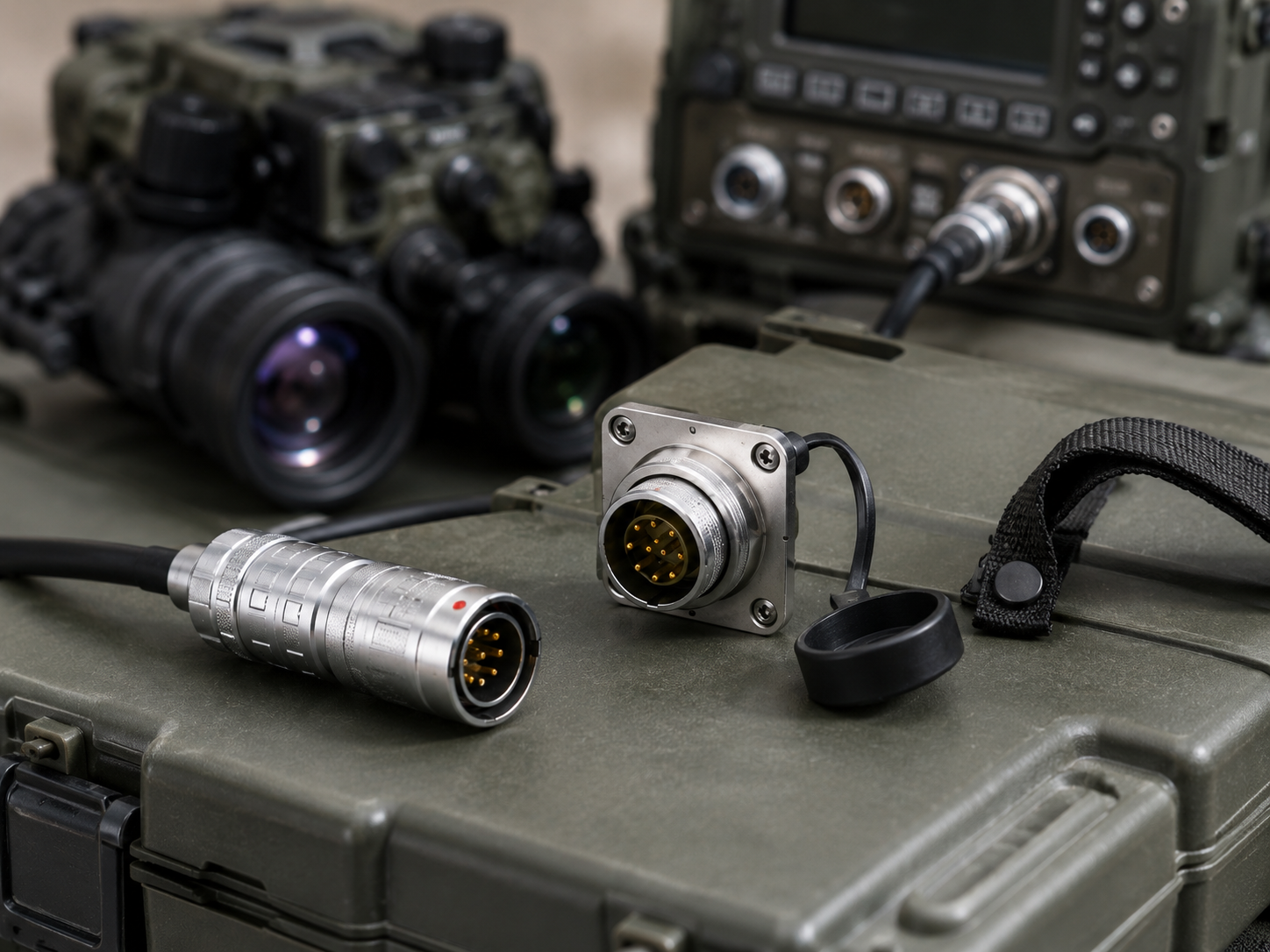

Security and Defense Systems
Security monitoring, night-vision, infrared observation and mobile field equipment can be exposed to vibration, movement, moisture and repeated deployment. Metal cable plugs and equipment-side receptacles provide a mechanically protected connection between external accessories and the main system. IP68, anti-rotation, miniature and vibration-resistant options can be evaluated according to the enclosure structure, operating environment and required transmission functions.

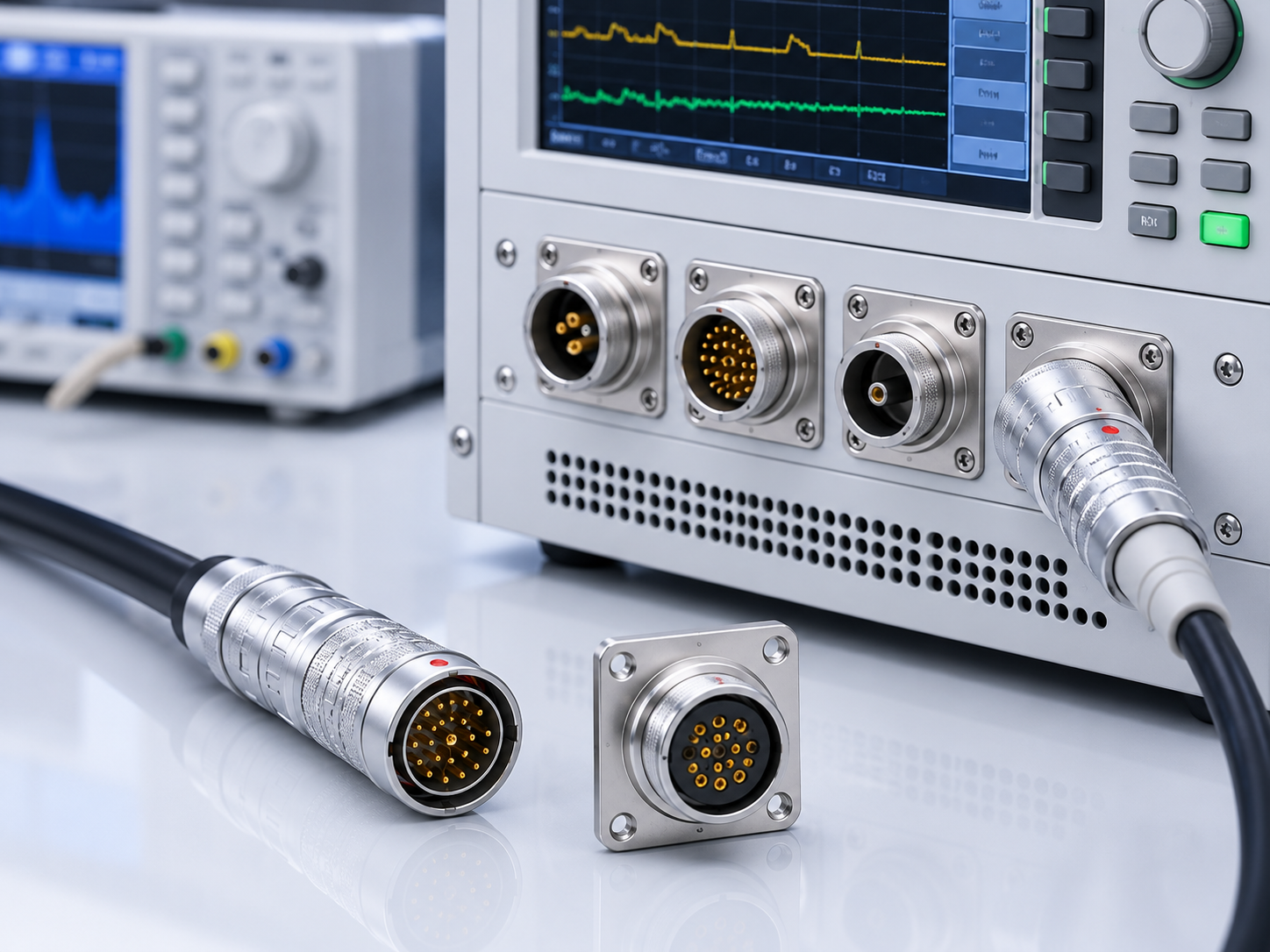

Test and Measurement Equipment
Test instruments, inspection systems and data acquisition equipment often require connectors to be inserted and removed repeatedly during setup, calibration and maintenance. The push-pull self-locking mechanism enables quick operation while keeping the plug secured to the panel receptacle. High-density contacts, customized pin layouts and optional 10G signal inserts can be evaluated according to the number of measurement channels, signal type and required transmission speed.
QM Custom Metal Connector Services
Contact Layout Design
Contact quantity and arrangement can be developed according to signal, power, grounding, communication and reserved-circuit requirements. High-density layouts and customized PEEK inserts are available for projects requiring compact integration.
Sealing and Mounting Options
IP68 sealing, low-leakage structures, flange mounting and anti-rotation designs can be evaluated according to the equipment enclosure, operating environment, cable outlet and connection frequency.
Plug and Receptacle Matching
QM can configure cable plugs, panel receptacles, flange-mounted sockets and matched connector pairs according to installation depth, panel opening, cable direction and available operating space.
Hybrid Transmission Design
Optical-electrical, coaxial, high-low voltage, fluid-electric and pneumatic-electric functions can be integrated into a customized metal connector when the equipment requires multiple transmission types within one interface.
From Requirements to a Custom Metal Connector
A clear development process helps align connector structure, transmission requirements and equipment installation.
Submit Project Requirements
Customer Provides：
Drawing, 3D file or sample
Pin count and signal type
Current and voltage
Installation and environment details
Confirm Connector Configuration
QM Evaluates：
Standard or custom structure
Plug and receptacle arrangement
Contact and keying layout
Sealing and mounting method
Validate and Support Production
The confirmed configuration can proceed to prototype evaluation, allowing the connector fit, mating operation, panel installation, cable routing and contact definition to be checked with the equipment. After approval, QM can support connector manufacturing, cable assembly, wire soldering and application-specific production requirements.
Project Support：
Prototype configuration review
Equipment installation verification
Cable assembly and soldering
Connector production support
Need Help Matching the Plug and Receptacle?
Send the contact quantity, signal type, cable specification, panel installation method and operating environment. QM can help identify a suitable metal connector pair or evaluate a customized configuration.
