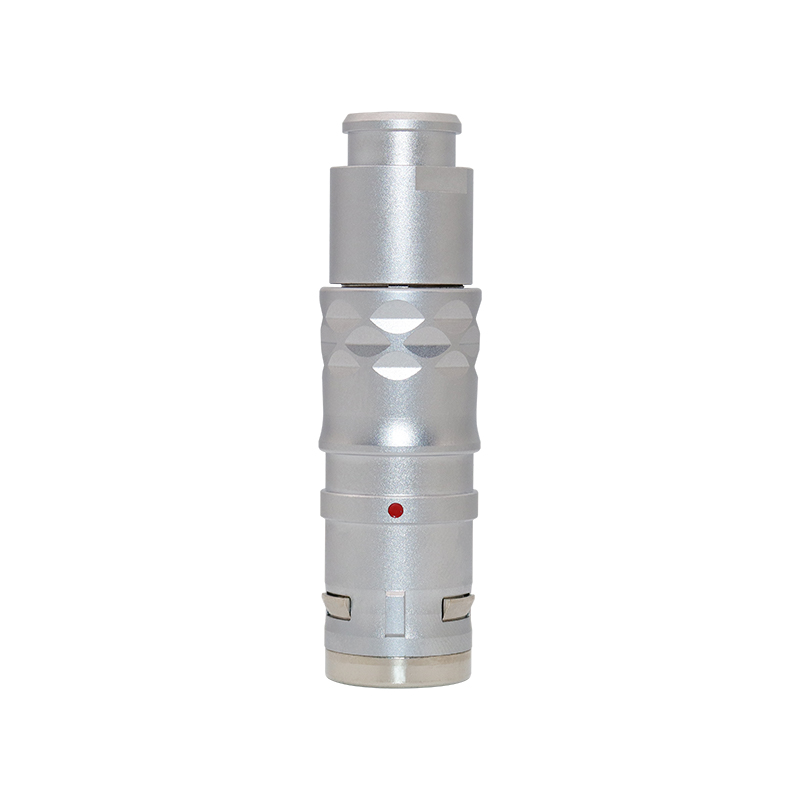

TGG.2K.308.CLLC52Z IP68 Waterproof Metal Push-pull Connector with Sheath

TGG.2K.308.CLLC52Z IP68 Waterproof Metal Push-pull Connector with Sheath

QM TGG.2K.308.CLLC52Z is an 8‑pin compact metal push‑pull self‑locking plug for harsh environments. It features a pearl chrome‑plated copper shell, PPS insulator, and 0.9mm gold‑plated contacts supporting 10A high‑current transmission. The connector offers IP68 sealing, 1000hr salt spray resistance, 360° shielding, ‑55℃~200℃ operating range, 15g vibration resistance, 100g shock resistance, and 10,000+ mating cycles. RoHS compliant, it ensures stable power and signal transmission for security, outdoor, marine, industrial, drone, and special vehicle applications.

Model:
TGG.2K.308.CLLC52Z
Brand:
QM (QUANMA)

Quantity:
Availability:





Inquire Add to Basket

Product Description

Excellent Vibration & Shock Resistance

Optimized structure and stable locking enable it to withstand 15g vibration (10Hz–2000Hz) and 100g shock (6ms). It effectively avoids signal or power interruption caused by vibration and impact during equipment movement.

10A High‑Current Stable Transmission

φ0.9mm high‑conductivity gold‑plated contacts ensure contact resistance ≤9mΩ, insulation resistance ≥5000MΩ and withstand voltage up to 1500V AC. It provides safe and stable high‑current power supply for various equipment.

10,000+ Long Mechanical Life

Wear‑resistant contact surface and precision metal structure ensure over 10,000 mating cycles. It supports frequent plugging and maintenance with high durability and long service life.

Ultra‑Wide Temperature Range from ‑55℃ to 200℃

Stable operation in an ultra‑wide temperature range, maintaining reliable electrical and mechanical performance in extreme cold, high temperature and complex working environments.

Technical Parameters

Parameters	Specifications
Operating Temperature	-55°C~200°C
Humidity(max)	<=95%[at 60°C/140°F]
Salt Spray Corrosion	1000hr
Vibration	15g[10Hz~2000Hz]
Mating Cycles	10000+ times
Contact Material	Gold Plated Tin Bronze
Housing Material	Pearl Chrome Plated Copper
Insulator Material	PPS
Other Shell Material	Nickel-plated Brass
Contact Diameter	0.9mm
Shock Resistance	100g[6ms]
Rated Current	10A
Rated Voltage	1500V AC
Insulator Resistance	5000 mΩ[at 500V AC]
Contact Resistance	<=9 mΩ
IP Rate	IP68

Product Uses

Security & Defense Outdoor Equipment

Suitable for border monitoring, anti‑drone systems, field law enforcement and portable defense devices, providing stable power and signal transmission in harsh outdoor environments.

UAV & Airborne Equipment

Ideal for flight control, pod load and communication connection of drones and airborne equipment. Compact size, shock resistance and IP68 protection ensure stable aerial operation.

Outdoor Industrial Measurement & Control

Applied in industrial automation, geological exploration, environmental monitoring and outdoor instruments. High current and salt spray resistance adapt to long‑term outdoor operation.

Marine & Coastal Equipment

Perfect for marine detection, coastal monitoring and offshore equipment. 1000hr salt spray resistance and IP68 waterproof ensure stable operation in high‑humidity and high‑corrosion marine environments.

Special & Military Vehicles

Used for communication and control connection of special vehicles and military vehicles. High strength, anti‑vibration and wide temperature resistance adapt to cross‑region mobile operations.

Outdoor Communication & Power Supply

Applied in communication base stations, emergency power supply and mobile charging equipment. 10A high current and IP68 protection ensure stable connection in rainy, snowy and dusty environments.

FAQ

Q: What are the core advantages of QM TGG.2K.308.CLLC52Z?

A: It features IP68 protection, 1000hr salt spray resistance, 10A high current, ‑55℃~200℃ wide temperature, 10,000+ mating cycles and excellent anti‑vibration performance, ideal for harsh outdoor and marine environments.

Q: Is it compatible with standard metal push‑pull connectors?

A: Yes. Designed with standard structure and dimensions, it can be directly mated and interchanged with mainstream 2K series metal connectors.

Q: What is the rated current and suitable cable size?

A: Rated current is 10A, suitable for cable diameter from Φ4.1mm to Φ5.0mm.

SMALL SIZE CONNECTORS OUTDOOR PUSH-PULL IP68 CONNECTORS RELIABLE CONNECTOR SECURITY & DEFENSE CONNECTOR K COMPATIBLE CONNECTOR

Related Products

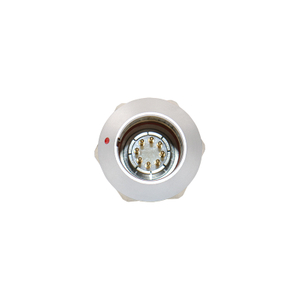

MGG.2K.308.CLA
