Connector locking mechanisms play an important role in the reliability, safety and usability of electrical and electronic equipment. A connector is not only used to transmit power, signals or data. It must also stay securely connected during operation, especially when the equipment is exposed to vibration, frequent movement, limited installation space or repeated plugging and unplugging.
Different connector locking structures are designed for different application needs. Some are made for fast connection and easy release. Some are designed for strong mechanical holding force. Others focus on lightweight structure, visible locking status or long-term fixed installation.

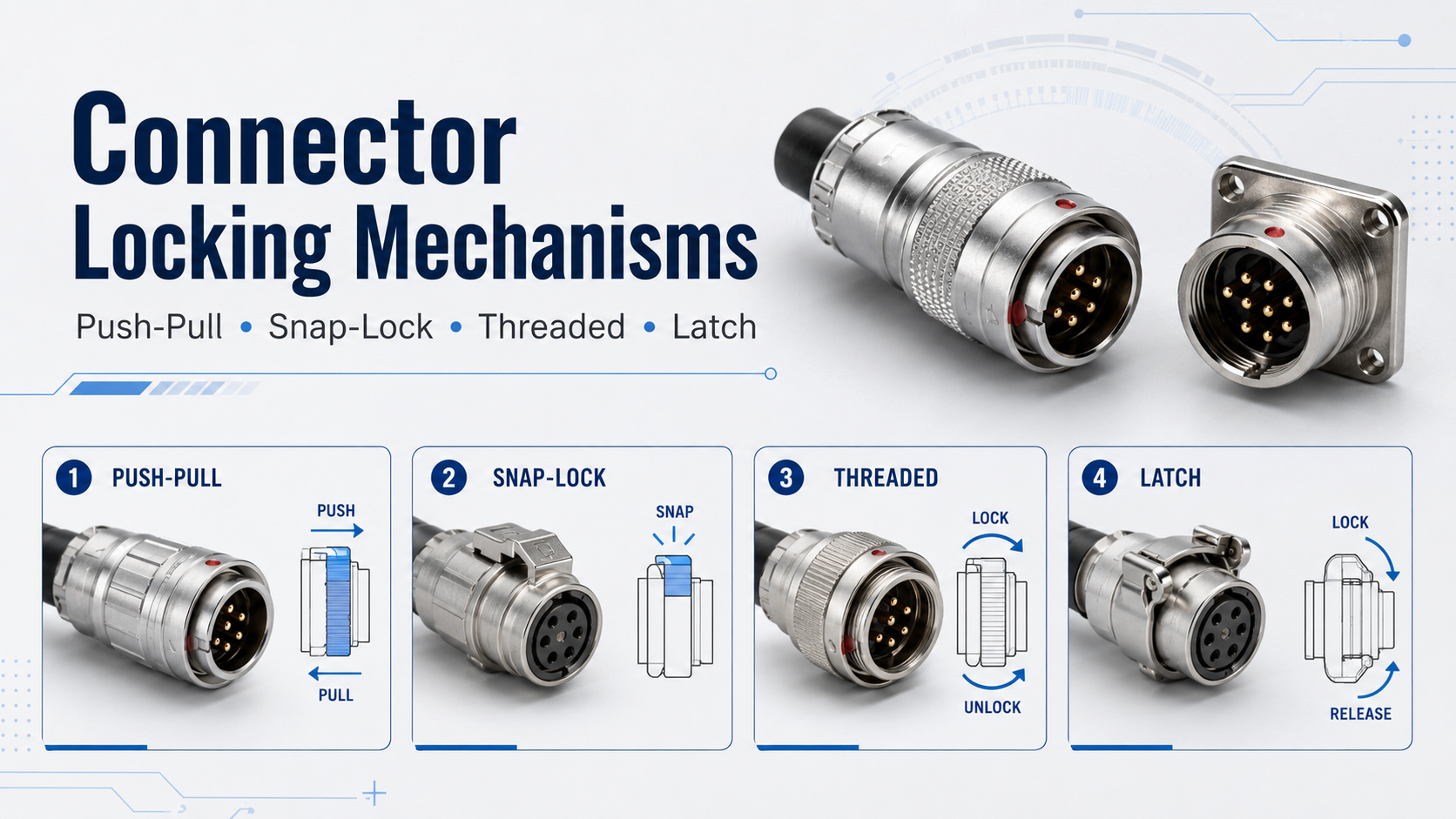

Common connector locking mechanisms include push-pull self-locking, snap-lock or snap-fit locking, threaded locking and latch locking. Understanding how these locking structures work can help engineers, buyers and equipment manufacturers choose a more suitable connector solution for medical devices, industrial equipment, testing instruments, communication systems and other professional applications.
The locking structure is one of the most important mechanical features of a connector. If the connector is not locked properly, the connection may become loose, unstable or disconnected during operation. This can affect power transmission, signal quality, data communication and overall equipment safety.
A suitable locking mechanism can help improve:
Connection stability
Resistance to accidental disconnection
Vibration and shock resistance
Signal and power transmission reliability
Waterproof and dustproof performance
Maintenance efficiency
User operation experience
Long-term connector durability
For precision equipment, the locking structure should not be selected only by appearance. It should be matched with the application environment, installation method, mating frequency, cable direction, operating space and reliability requirements.
For example, a connector used in a frequently maintained medical device may require fast mating and easy release. A connector used in heavy-duty outdoor equipment may require stronger mechanical locking force. A connector used inside a lightweight electronic device may need a simple and compact locking method.
Connector locking mechanisms can be divided into several common types according to how the connector is fixed after mating. The most common locking structures include:
Push-pull self-locking
Snap-lock or snap-fit locking
Threaded locking
Latch locking
Each locking method has its own structure, operation method, advantages and limitations. The right choice depends on the equipment design and working conditions.
Push-pull self-locking is a fast and secure locking mechanism commonly used in circular connectors. In this structure, the plug is pushed directly into the receptacle. After mating, the internal locking structure automatically engages and keeps the connector securely connected. When the user needs to disconnect it, the outer sleeve or release sleeve is pulled back to unlock the connector.
This design allows the connector to be locked and released without rotation. As a result, push-pull self-locking connectors are especially useful in equipment where fast operation, compact installation and frequent connection are required.
A typical push-pull self-locking connector uses an internal locking sleeve, locking claw, spring structure or mechanical retention system. When the plug is inserted into the socket, the locking parts engage automatically. The connector remains fixed until the release sleeve is pulled.
The basic operation is simple:
Push the plug into the receptacle.
The connector locks automatically after mating.
The connection remains secure during use.
Pull the release sleeve to unlock.
Remove the plug smoothly without rotating the connector.
This simple operation is one of the main reasons push-pull self-locking connectors are widely used in professional equipment.
Push-pull self-locking connectors offer several advantages:
Fast mating and unmating
Automatic locking after insertion
No need for rotation during operation
Compact structure for limited installation space
Suitable for frequent plugging and unplugging
Lower risk of accidental disconnection
Good usability in panel-mounted equipment
Clean and professional appearance
Suitable for high-density connector layouts
Because users do not need to rotate the connector, push-pull self-locking connectors are convenient for narrow spaces or equipment panels where hand movement is limited. This makes them suitable for medical devices, industrial automation systems, test and measurement equipment, communication devices, imaging systems and other precision applications.
Although push-pull self-locking is highly efficient, the internal structure requires accurate design and manufacturing. The locking sleeve, contact alignment and mating interface should be precise to ensure smooth operation and long-term reliability.
For applications with extremely heavy mechanical load or continuous external pulling force, the connector should be selected carefully according to the required retention force, material, cable direction and environmental protection level.
Snap-lock locking, also known as snap-fit locking, usually uses plastic clips, elastic tabs or snap structures to hold the connector in place. When the connector is inserted, the snap feature clicks into position. To disconnect it, the user may need to press, lift or release the snap part.
This locking method is common in lightweight electronic devices, internal wiring systems and cost-sensitive applications.
A snap-lock connector usually relies on elastic deformation. During insertion, the locking tab or clip bends slightly and then snaps into a fixed position. This creates a mechanical lock between the plug and the socket.
The locking structure is often simple and easy to operate. In many cases, users can feel or hear a small “click” when the connector is fully locked.
Snap-lock connectors are popular because they are simple, lightweight and economical.
Main advantages include:
Simple structure
Easy operation
Lightweight design
Cost-effective manufacturing
Fast assembly
Suitable for compact internal connections
Useful for low to medium mechanical strength requirements
Snap-lock structures are often used in consumer electronics, plastic housings, internal cable connections, small control modules and light industrial equipment.
Snap-lock structures may not be suitable for every environment. Since many snap-lock connectors use plastic locking features, the clips or tabs may wear, deform or break after repeated use, especially if the connector is frequently mated and unmated.
Compared with metal push-pull self-locking or threaded locking structures, snap-lock locking may provide lower mechanical strength, lower vibration resistance and lower long-term durability. It may not be the best choice for harsh environments, high-reliability external interfaces or equipment exposed to frequent pulling force.
Threaded locking is a traditional and reliable connector locking method. It uses a screw thread between the plug and the receptacle or between the connector and a coupling nut. The user rotates the connector or coupling nut to tighten the connection.
This locking method provides strong mechanical retention and is widely used in applications where secure long-term connection is required.
In a threaded locking connector, the mating parts contain matching threads. After the plug and socket are aligned, the user rotates the connector or locking nut until the threads are fully engaged. This creates a firm mechanical connection.
To disconnect the connector, the user must rotate the coupling structure in the opposite direction before pulling the connector apart.
Threaded locking is valued for its strong and stable mechanical connection.
Main advantages include:
Strong locking force
Good vibration resistance
Reliable long-term connection
Suitable for outdoor or heavy-duty equipment
Helps maintain sealing pressure
Suitable for fixed installation
Good resistance to accidental pulling
Threaded locking connectors are often used in industrial equipment, outdoor systems, transportation, defense-related equipment, heavy machinery and applications where the connector is not frequently disconnected.
The main limitation of threaded locking is operation speed. Users need to rotate the connector or coupling nut, so mating and unmating take more time compared with push-pull self-locking.
Threaded locking also requires enough space for hand rotation. In compact equipment or high-density panel layouts, this can make installation and maintenance less convenient. If the connector needs to be connected and disconnected frequently, threaded locking may reduce operating efficiency.
For this reason, threaded locking is often preferred for strong fixed connections, while push-pull self-locking is often preferred for fast and frequent operation.
Latch locking uses an external latch, buckle, lever or locking arm to hold the connector in place. This structure is often visible from the outside, allowing users to check whether the connector is locked.
Latch locking is common in modular equipment, cabinet connections, power modules and some rectangular connector systems.
A latch locking connector usually has an external locking part. After the connector is inserted, the latch is pressed, turned or closed to secure the connection. To disconnect the connector, the user releases the latch first and then removes the connector.
The latch may be made of metal or plastic depending on the equipment design and mechanical strength requirement.
Latch locking has several practical advantages:
Visible locking status
Easy to confirm whether the connector is locked
Strong mechanical holding force in some designs
Suitable for modular equipment
Useful for cabinet or panel interfaces
Convenient for larger connector systems
Easy manual operation
Because the locking structure is visible, latch locking is useful when operators need to quickly inspect the connection status.
Latch locking structures usually require more external space than compact circular push-pull connectors. Since the latch is exposed, it may be affected by external impact, dust, accidental contact or surrounding components.
For compact circular connectors, miniature devices or applications requiring a smooth outer shape, latch locking may not be the most suitable option. It is often more suitable for larger modules, rectangular connectors or equipment interfaces with enough installation space.
Locking Type | Operation Method | Main Advantages | Possible Limitations | Suitable Applications |
|---|---|---|---|---|
Push-Pull Self-Locking | Push to lock, pull sleeve to release | Fast mating, compact structure, no rotation, secure connection | Requires precise internal locking design | Medical devices, industrial equipment, test instruments, communication systems |
Snap-Lock / Snap-Fit | Snap or clip into position | Simple, lightweight, cost-effective, easy assembly | Lower durability under frequent use or strong vibration | Consumer electronics, light equipment, internal wiring |
Threaded Locking | Rotate to screw and lock | Strong locking force, good vibration resistance, stable long-term connection | Slower operation, requires rotation space | Outdoor equipment, heavy-duty industrial systems, fixed installations |
Latch Locking | External latch or buckle locks the connector | Visible locking status, strong mechanical holding in larger systems | Larger structure, exposed locking parts | Cabinets, modules, power equipment, rectangular connectors |
Push-pull self-locking and threaded locking are two common choices for professional connectors, but they are suitable for different application needs.
Push-pull self-locking is usually better when the equipment requires:
Fast connection and disconnection
Frequent maintenance
Compact installation space
No rotation during operation
High-density panel installation
Convenient user operation
Clean and compact connector appearance
Threaded locking is usually better when the equipment requires:
Strong mechanical locking force
Long-term fixed connection
Outdoor or heavy-duty use
Strong vibration resistance
Stable sealing pressure
Lower mating frequency
In many medical, testing, industrial and communication applications, push-pull self-locking connectors provide a good balance between secure locking and easy operation. In heavy-duty outdoor applications where connectors are not frequently disconnected, threaded locking may offer stronger mechanical holding.
The best choice depends on the actual working environment, equipment structure and maintenance frequency.
Push-pull self-locking connectors are reliable because their structure is designed to support fast operation while maintaining secure mechanical retention. Several design details can affect their performance.
The internal locking sleeve or locking claw is the key component of a push-pull self-locking connector. It allows the connector to lock automatically after insertion and release only when the sleeve is pulled.
A well-designed locking structure should provide stable retention force, smooth release and consistent operation after repeated mating cycles.
Keying design helps ensure that the plug and socket are aligned correctly before mating. This prevents wrong insertion and protects contacts from damage.
For connectors with multiple similar interfaces, anti-mismating design is especially important. It helps users avoid connecting the wrong plug to the wrong socket, improving equipment safety and reliability.
The connector housing material also affects locking performance. Metal housings usually provide better mechanical strength, shielding performance and durability. Plastic housings may offer lighter weight and good insulation. Overmolded metal structures can combine mechanical protection with cable strain relief and improved handling.
The right material should be selected according to the application environment, weight requirement, shielding demand and mechanical load.
The locking mechanism and contact system must work together. If the connector locks before the contacts are properly aligned, it may cause poor electrical performance or contact damage.
High-quality push-pull connectors require precise mechanical design so that the contacts, keying structure and locking mechanism engage correctly during mating.
For equipment that requires frequent plugging and unplugging, mating cycle life is an important factor. The locking structure should maintain reliable performance after repeated operation.
A durable connector should provide stable locking force, smooth insertion, reliable contact performance and consistent release over its service life.
Choosing the right connector locking structure should start with the actual application requirements. Different locking methods are suitable for different environments and operating habits.
For frequent connection and disconnection, push-pull self-locking is often a good choice because it supports quick mating and release without rotation. For high-vibration or long-term fixed installation, threaded locking may be suitable because it provides strong mechanical retention. For lightweight and cost-sensitive devices, snap-lock locking can be practical. For modular equipment or visible locking inspection, latch locking may be preferred.
Before selecting a connector locking mechanism, consider the following factors:
Mating and unmating frequency
Installation space
Need for fast operation
Vibration and shock conditions
Cable pulling direction
Waterproof or dustproof requirement
Required retention force
Housing material
Equipment maintenance method
Need for anti-mismating design
Whether customization is required
For customized equipment, users should provide clear information about the application environment, cable direction, installation method, connector size, locking preference and protection requirement. This helps the connector manufacturer recommend a suitable structure or develop a custom connector solution.
Connector locking mechanisms directly affect connection reliability, operation efficiency and long-term equipment performance. Push-pull self-locking, snap-lock, threaded locking and latch locking are four common locking structures, and each has its own suitable application range.
Push-pull self-locking connectors are ideal for applications that require fast mating, secure locking, compact structure and frequent operation. Snap-lock connectors are simple and lightweight for low to medium mechanical requirements. Threaded locking connectors provide strong mechanical retention for fixed and heavy-duty applications. Latch locking connectors offer visible locking status and are useful for modular or larger equipment systems.
For equipment manufacturers and engineers, choosing the right connector locking structure should be based on the working environment, mating frequency, installation space, mechanical strength requirement and maintenance method.
QM Connectors provides push-pull self-locking connectors and customized connector solutions for medical, industrial, testing, communication and high-end equipment applications.
A connector locking mechanism is the mechanical structure used to secure the plug and receptacle after mating. It helps prevent accidental disconnection and improves connection stability during operation.
Common connector locking structures include push-pull self-locking, snap-lock or snap-fit locking, threaded locking and latch locking. Each type has different advantages and is suitable for different application environments.
A push-pull self-locking connector locks automatically when the plug is pushed into the receptacle. To disconnect it, the user pulls the release sleeve to unlock the connector before removing it. This allows fast operation without rotating the connector.
Push-pull locking is faster and does not require rotation, making it suitable for frequent connection and compact installation. Threaded locking requires rotation but provides strong mechanical holding force, making it suitable for long-term fixed or heavy-duty applications.
Yes. Push-pull self-locking connectors are often used in applications that require frequent mating and unmating because they are fast, convenient and secure.
Threaded locking generally provides strong vibration resistance for long-term fixed installation. Push-pull self-locking connectors can also be suitable for vibration environments when the connector structure, material and retention force are properly selected.
Yes. For special equipment requirements, the connector locking structure, keying design, housing material, cable direction, sealing method and contact layout can often be customized according to the application.
