Circular push pull self-locking connectors are widely used in medical devices, industrial automation, test and measurement equipment, data acquisition systems, communication devices and other precision electronic applications. Compared with ordinary threaded connectors or simple snap-in connectors, push pull connectors are valued for their quick mating, reliable locking and easy operation in limited installation space.
For engineers, however, choosing the right circular push pull connector is not only about selecting a pin count or shell size. A suitable connector must match the application environment, electrical requirements, cable diameter, protection level, mating frequency, installation method and even future product upgrade needs.
Quanma provides both metal and plastic push pull connector solutions, covering medical, industrial, test, automation and high-reliability applications. This article explains how to choose the right circular push pull self-locking connector in five practical steps.
A circular push pull self-locking connector is a precision connector designed for fast mating and secure locking. During operation, the plug is pushed into the socket along the axial direction. Once fully inserted, the locking mechanism engages automatically. The connector cannot be separated simply by pulling the cable. To disconnect it, the operator pulls the outer unlocking sleeve, releases the locking mechanism and removes the plug from the socket.

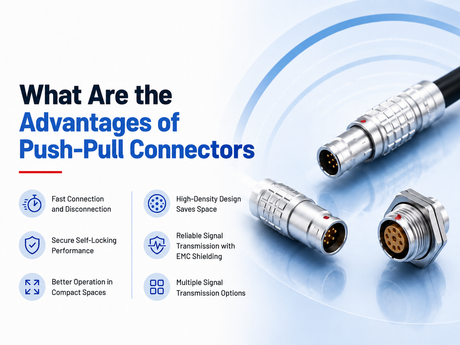

This structure gives push pull connectors several important advantages:
Fast plug-in and pull-out operation
Reliable locking after mating
Reduced risk of accidental disconnection
Better usability in compact spaces
Suitable for frequent connection and disconnection
Helpful for blind mating or limited-access installation positions
These features make circular push pull self-locking connectors especially suitable for equipment where connection reliability, operating convenience and compact design are all important.
The first step is not to choose the number of pins. It is to understand where and how the connector will be used. The same connector structure may perform differently in a medical device, an industrial robot, an outdoor control box or a test instrument.
In medical equipment, connectors are often used in patient monitors, diagnostic instruments, endoscopy systems, surgical equipment, medical testing devices and other electronic systems. These applications usually require stable signal transmission, frequent mating cycles, easy operation and materials suitable for medical-related environments.
For medical applications, engineers should pay attention to:
Whether the connector is easy to operate during repeated use
Whether the connector supports stable signal transmission
Whether the shell material is suitable for cleaning or sterilization processes
Whether color identification is needed to prevent wrong connection
Whether the supplier has quality system experience for medical-related products
Whether customized cable assemblies are needed for device integration
Quanma plastic connectors are especially suitable for medical electronics, test equipment, data acquisition and automation applications. The P Series uses a plastic push pull self-locking structure and can support different transmission configurations, including electrical signal, high voltage, coaxial, fiber optic, fluid and mixed solutions.
For medical devices that require higher mechanical strength, shielding or more demanding connector structures, metal push pull connector series can also be considered.
Industrial applications often involve vibration, dust, moisture, temperature variation, mechanical shock and long operating hours. Connectors used in robots, industrial control systems, test equipment, automation devices, sensors, outdoor devices and high-precision equipment must maintain stable connection performance under demanding conditions.
For industrial and automation applications, engineers should focus on:
Locking reliability under vibration
Mechanical strength of the connector shell
Dustproof and waterproof performance
Cable strain relief and assembly stability
Electrical performance under continuous operation
Availability of shielding or mixed transmission solutions
Suitability for compact or high-density installation
Quanma metal push pull connectors cover multiple series such as B, K, S, F, C, ML, W, HR10, Y, FX, M8 and M12 series. Different series are designed for different installation, protection and transmission requirements. For indoor equipment, IP50-level solutions may be enough. For harsh environments, waterproof or higher-protection series should be considered.
After defining the application environment, the next step is to select the connector shell material. For Quanma products, the main choice is between metal push pull connectors and plastic P Series push pull connectors.
Metal circular push pull connectors are suitable for applications that require higher mechanical strength, better structural stability or more demanding environmental performance. They are often used in industrial equipment, high-end test instruments, communication equipment, military-related equipment, automation systems and precision electronic devices.
Metal connectors are usually preferred when the application requires:
Stronger shell protection
Higher mechanical durability
Stable performance in demanding environments
Shielding or anti-interference design
Compact but reliable interconnection
Multi-pin or high-density contact layouts
Waterproof or sealed connector options
Quanma metal connector series also include options for soldering, PCB straight pin connection and PCB right-angle pin connection, depending on the specific series and model. This gives engineers more flexibility when designing panel-mounted, cable-mounted or board-mounted interconnection systems.
Plastic push pull connectors are often selected when the equipment requires a lighter, safer and more user-friendly connector solution. Quanma P Series connectors are plastic circular push pull self-locking connectors suitable for medical electronics, test equipment, industrial electronics, testing equipment, data acquisition and automation.
The P Series offers several advantages:
Lightweight structure
Suitable for non-magnetic environments
Can be sterilized with gas or steam
Warm and clean appearance
Multiple shell color options for identification
Multiple key positions to prevent mis-mating
High-density installation capability
Easy and convenient operation
The P Series shell material is PSU, and the materials comply with RoHS2.0 requirements. The series includes different sizes such as 0P, 1P, 2P and 3P, supporting different installation and transmission requirements.
Selection Factor | Metal Push Pull Connector | Plastic P Series Push Pull Connector |
|---|---|---|
Main Advantage | Mechanical strength and structural reliability | Lightweight design and user-friendly operation |
Typical Applications | Industrial equipment, test instruments, automation, communication, military-related equipment | Medical electronics, test equipment, data acquisition, automation |
Environment | Demanding or harsh environments | Clean, lightweight, non-magnetic or medical-related environments |
Transmission Options | Signal, power, coaxial, RF, high-speed or mixed solutions depending on series | Signal, high voltage, coaxial, fiber optic, fluid and mixed configurations |
Design Focus | Durability, shielding, waterproofing, compact structure | Lightweight, sterilization compatibility, color identification, easy operation |
In short, choose metal connectors when strength, shielding and environmental resistance are more important. Choose plastic P Series connectors when lightweight design, non-magnetic use, easy identification or medical-related usability is more important.
Once the application and shell material are clear, engineers need to determine the connector size, contact count and anti-mis-mating structure.
Connector size affects the final equipment layout, panel opening, cable outlet design and user operation space. A larger connector may provide more contacts or higher transmission capacity, but it also takes more installation space. A smaller connector can help reduce device size, but it must still meet current, voltage, cable diameter and mechanical strength requirements.
When choosing connector size, engineers should check:
Available installation space
Panel thickness and opening size
Cable outer diameter
Required pin count
Current and voltage rating
Mating and unmating space
Whether straight or right-angle cable exit is needed
For compact medical instruments, portable equipment or high-density electronic systems, smaller and lighter connectors may be more suitable. For industrial equipment, larger connectors may be required when higher current, stronger cable retention or more transmission channels are needed.
Pin count should match the actual circuit design. Engineers should identify how many contacts are needed for power supply, signal transmission, grounding, shielding and communication functions.
A common mistake is to select a connector based only on the current version of the circuit. In real product development, equipment may require future upgrades, additional functions or redundant grounding. Therefore, it is often better to reserve some margin when the installation space allows.
However, more pins are not always better. Excessive pin count may increase connector size, wiring complexity and cost. The best choice is a balanced design that meets current needs while leaving reasonable space for future expansion.
Many devices use several similar connectors on the same panel. Without a clear anti-mis-mating design, operators may connect the wrong cable to the wrong port, which can cause signal errors or equipment failure.
Keying, positioning pins and different key positions help prevent this problem. Quanma connector systems use positioning structures to improve contact density and reduce the risk of incorrect mating. Plastic P Series connectors also provide multiple key positions, which is useful for medical devices, test equipment and multi-channel industrial systems.
For applications with multiple ports, engineers should define key positions early in the design stage.
A connector is not only a mechanical part. It is part of the electrical and signal transmission system. After selecting the shell type and size, engineers should confirm whether the connector can meet the required current, voltage, contact layout and transmission type.
Different equipment requires different transmission types. Some devices only need low-voltage signal transmission. Others require power supply, high voltage, coaxial signal, high-speed data, RF signal, fiber optic transmission, fluid transmission or a combination of several media in one connector.
Typical transmission needs include:
Low-frequency electrical signal
Power transmission
High-voltage transmission
Coaxial signal
RF signal
High-speed data signal
Fiber optic transmission
Fluid transmission
Hybrid signal and power transmission
For standard electrical applications, multi-pin circular push pull connectors may be enough. For more complex equipment, mixed connectors can help integrate signal, power, coaxial, fiber optic, high voltage or fluid channels into one compact interconnection system.
This is especially valuable for medical devices, test systems, industrial control equipment and equipment with limited panel space.
The termination method affects assembly efficiency, reliability, repairability and production cost. Quanma connector systems can support different contact and termination options depending on the product series.
Common termination methods include:
Soldering is widely used for flexible wiring and small-to-medium volume projects. It is suitable for many signal and low-power applications. It gives engineers flexibility during prototyping and customized cable assembly.
Crimping is suitable for stable mass production and applications where stronger cable retention is needed. It can improve assembly consistency when proper tools and processes are used.
PCB straight pin connectors are used when the connector needs to be mounted directly on the circuit board. This helps reduce internal wiring and makes the device structure more compact.
Right-angle PCB contacts are useful when the connector needs to be mounted parallel to the board or when the internal space does not allow straight vertical connection.
For many customers, a ready-to-install connector and cable assembly is more convenient than purchasing separate connectors and assembling them in-house. Cable assembly support is especially useful for medical devices, industrial equipment and customized machines where wiring consistency is important.
The final step is to confirm whether the selected connector can meet the required protection level, quality requirements and customization needs.
IP protection level should be selected according to the actual working environment.
For general indoor equipment, IP50 may be sufficient. This type of connector can be used where there is no direct water exposure and the main requirement is basic protection during normal operation.
For outdoor equipment, wet environments, cleaning processes, dust exposure or harsh industrial conditions, higher protection levels such as IP67 or IP68 should be considered. The final protection performance depends not only on the connector series, but also on the mating condition, sealing structure, cable diameter, assembly process and whether the connector is used with suitable accessories.
For this reason, engineers should confirm the exact protection requirement with the supplier before final selection, especially for waterproof, washable, sterilizable or outdoor devices.
For medical and industrial equipment, connector selection is also related to quality management and long-term supply stability. A connector supplier should not only provide standard models, but also support engineering communication, inspection, testing and production consistency.
Quanma has experience in connector design, production and customized interconnection solutions. The company provides metal and plastic connector products for medical equipment, automation, robots, testing equipment, communication electronics, high-precision instruments and other applications.
For medical-related projects, ISO13485-related quality system experience is especially important. For general industrial and export applications, environmental and compliance requirements such as RoHS and CE are also commonly considered.
Standard connectors can meet many common requirements, but not every project can be solved with an off-the-shelf model. Some equipment requires special cable diameter, special shell color, mixed transmission, different key positions, customized contact layout or complete cable assembly.
Customization may be needed when the project involves:
Special cable diameter
Non-standard pin configuration
Mixed signal and power transmission
Fiber optic transmission
High-voltage transmission
RF or coaxial transmission
Fluid connection
Special panel installation
Custom wire harness
Color identification
Harsh environment protection
Quanma supports customized connector and cable assembly solutions, including fiber, high voltage, fluid, RF, coaxial and mixed connector designs. This helps customers build interconnection systems that match actual equipment structure and performance requirements.
Before selecting a circular push pull self-locking connector, engineers can use the following checklist:
What equipment will the connector be used in?
Is the application medical, industrial, test, automation or outdoor?
Is the environment indoor, wet, dusty, high-vibration or harsh?
Do you need a metal shell or plastic shell?
How many contacts are required?
What current and voltage are needed?
What signal type must be transmitted?
Is coaxial, fiber optic, high voltage, fluid or mixed transmission required?
What cable diameter will be used?
Is straight plug, right-angle plug, fixed socket or floating socket required?
Is soldering, crimping or PCB mounting preferred?
Is anti-mis-mating keying required?
Is IP50 enough, or is IP67/IP68 required?
Is color identification needed?
Do you need a standard connector or a customized cable assembly?
Answering these questions before selection can reduce design changes and help the supplier recommend a more suitable connector model.
Choosing a circular push pull self-locking connector requires more than checking the pin count. Engineers need to evaluate the application environment, shell material, connector size, contact layout, electrical performance, transmission type, protection level, termination method and customization needs together.
For medical equipment, lightweight design, easy operation, sterilization compatibility, color identification and quality system support are often important. For industrial equipment, mechanical strength, locking reliability, dustproof and waterproof performance, vibration resistance and cable assembly stability may be more critical.
Quanma provides both metal and plastic circular push pull self-locking connector solutions. With multiple standard series, P Series plastic connectors, mixed transmission capability and customized cable assembly support, Quanma can help engineers select or develop suitable interconnection solutions for medical, industrial, test, automation and high-reliability equipment.
The main advantage is fast operation with reliable locking. The plug can be inserted quickly and locked automatically. Once locked, the connector is not easily disconnected by cable pulling. This makes it suitable for equipment that requires frequent operation and stable connection.
Choose a metal push pull connector when mechanical strength, shielding, waterproofing or harsh environment resistance is important. Choose a plastic P Series push pull connector when lightweight design, non-magnetic use, color identification, sterilization compatibility or medical-related usability is more important.
Yes. Customized or mixed connectors can be designed for applications that require multiple transmission types in one compact interconnection solution. This is useful for medical equipment, test systems, industrial control devices and high-density electronic equipment.
You should provide the application field, installation space, pin count, current and voltage, signal type, cable diameter, protection level, mating frequency, termination method and any special requirements such as sterilization, shielding, color identification or mixed transmission.
Not always. For clean indoor equipment, IP50 may be enough. For outdoor, wet, dusty, washable or harsh industrial environments, IP67 or IP68 may be needed. The final choice should be based on the actual working condition and the specific connector series.
