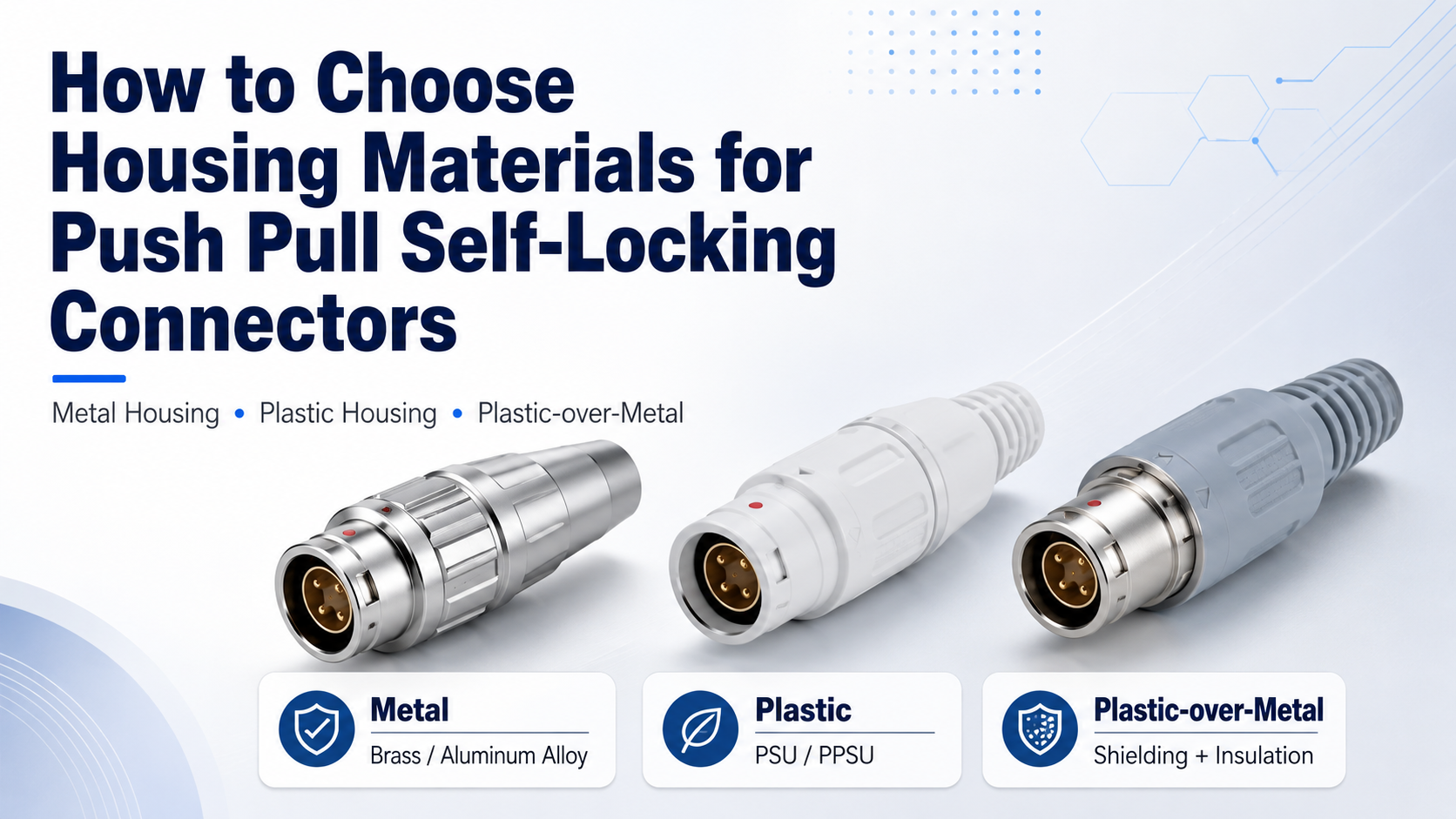

How to Choose Housing Materials for Push Pull Self-Locking Connectors

Housing material is an important factor when selecting a push pull self-locking connector. It not only affects the connector appearance, but also influences mechanical strength, EMC shielding, corrosion resistance, sterilization resistance, weight, insulation performance, waterproof protection and long-term durability.

For medical devices, industrial equipment, testing instruments, communication systems and other precision applications, choosing the right housing material helps improve connection reliability and equipment safety. A connector with the wrong housing material may still fit mechanically, but it may not perform well in the actual working environment.

Common housing options for push pull self-locking connectors include metal housings, plastic housings and plastic-over-metal or overmolded metal housings. Metal connectors often use brass or aluminum alloy, with surface plating such as pearl chrome plating or black chrome plating. Plastic connectors commonly use high-performance engineering plastics such as PSU and PPSU. Plastic-over-metal connectors combine metal structure with engineering plastic outer housing to achieve a balance between shielding, durability, insulation and user-friendly operation.

This guide explains how different connector housing materials work and how to choose the right option for your application.

Why Housing Material Matters in Push Pull Self-Locking Connectors

The housing is the outer structure of a connector. It protects the internal contacts, supports the locking mechanism and helps the connector withstand mechanical and environmental stress. For push pull self-locking connectors, the housing also plays an important role in mating accuracy, user handling and long-term connection stability.

When selecting a connector, many users first consider pin count, current rating, voltage rating, waterproof level or cable type. These factors are important, but housing material should not be ignored. The housing material determines whether the connector can survive the real working environment.

A suitable housing material can help improve:

• Mechanical strength

• Impact and vibration resistance

• EMC shielding performance

• Corrosion resistance

• Surface wear resistance

• Waterproof and dustproof protection

• Electrical insulation

• High-temperature sterilization resistance

• Chemical resistance

• Weight control

• Appearance consistency

• User handling comfort

• Long-term durability

Different applications require different material priorities. A connector used in medical equipment may need lightweight housing, good insulation and sterilization resistance. A connector used in industrial automation may need stronger mechanical protection and shielding. A connector used in semiconductor or precision equipment may require high cleanliness, stable signal transmission and low contamination risk.

Therefore, housing material selection should always be based on the application environment, equipment design and connector performance requirements.

Common Housing Materials for Metal Push Pull Connectors

Metal push pull connectors are widely used in applications that require high strength, stable mechanical performance, good shielding and a premium industrial appearance. Common metal housing materials include brass and aluminum alloy.

Metal connector housings are often used together with surface plating to improve corrosion resistance, wear resistance and appearance. Common plating options include pearl chrome plating and black chrome plating.

Brass Housing

Brass is one of the common housing materials for metal push pull self-locking connectors. It offers good mechanical strength, stable processing performance and reliable structural durability. Because brass can be machined accurately, it is suitable for precision connector housings that require stable mating and long service life.

Brass housing is often used in connectors for medical devices, industrial equipment, testing instruments, communication systems and other applications where the connector must remain stable during repeated mating and unmating.

Main advantages of brass housing include:

• Good mechanical strength

• Stable structure

• High machining accuracy

• Good durability for frequent use

• Premium metallic appearance after plating

• Suitable for precision push pull locking structures

• Good compatibility with surface plating processes

Brass housing is suitable when the connector needs strong mechanical protection, stable mating performance and a reliable metal structure. However, brass is heavier than some other materials, so weight-sensitive applications may consider aluminum alloy or high-performance plastic options.

Aluminum Alloy Housing

Aluminum alloy is another common material for metal connector housings. Compared with brass, aluminum alloy is lighter, which makes it useful for portable devices, handheld equipment or systems where total weight needs to be controlled.

Aluminum alloy also provides good mechanical performance and can be treated with different surface processes to improve corrosion resistance and appearance. It is often considered when users need a metal housing but want to reduce connector weight.

Main advantages of aluminum alloy housing include:

• Lighter weight than brass

• Good mechanical strength

• Suitable for portable or mobile equipment

• Good surface treatment possibilities

• Professional metallic appearance

• Useful for industrial, testing and communication equipment

Aluminum alloy is not always better than brass, and brass is not always better than aluminum alloy. The best choice depends on the balance between strength, weight, cost, surface treatment, shielding requirement and application environment.

If mechanical strength and structural stability are the main priorities, brass may be a strong option. If lightweight design is more important, aluminum alloy can be considered.

Common Plating Options: Pearl Chrome and Black Chrome

For metal push pull connectors, plating is not only used for appearance. It can also improve surface durability, wear resistance and corrosion resistance. Two common plating options are pearl chrome plating and black chrome plating.

Pearl Chrome Plating

Pearl chrome plating gives the connector a smooth, clean and professional appearance. It is commonly used for precision equipment, medical devices, testing instruments and high-end industrial systems.

Pearl chrome plating can provide:

• Refined metallic appearance

• Good surface wear resistance

• Improved corrosion resistance

• Clean and professional visual effect

• Suitable appearance for medical and laboratory equipment

• Premium finish for high-end connector products

Pearl chrome plated brass housings are often used when users need a durable metal connector with a clean and professional look.

Black Chrome Plating

Black chrome plating provides a darker and more technical appearance. It is often selected for equipment that requires a low-reflection surface, a unified black design or a more industrial visual style.

Black chrome plating can provide:

• Dark professional appearance

• Lower visual reflection

• Good surface protection

• Suitable look for industrial or security-related equipment

• Better match with black cable assemblies or dark equipment panels

• Distinctive appearance for product identification

When choosing between pearl chrome and black chrome, users should consider not only appearance, but also the equipment style, operating environment, corrosion resistance requirement and product positioning.

Plastic Connector Housing Materials: PSU and PPSU

Plastic push pull connectors are often used when users need lightweight structure, good insulation and a clean appearance. Compared with metal connectors, plastic connectors are usually lighter and can be more suitable for medical devices, portable instruments, diagnostic equipment and applications where electrical insulation is important.

Common plastic housing materials include PSU and PPSU.

PSU Housing

PSU, or polysulfone, is a high-performance engineering plastic used in many precision connector applications. It provides good insulation performance, stable mechanical properties and good resistance to high-temperature environments in suitable designs.

PSU housing is often used for plastic push pull connectors where lightweight design, insulation and clean appearance are required. It is especially suitable for medical-style equipment and precision electronic devices.

Main advantages of PSU housing include:

• Lightweight structure

• Good electrical insulation

• Clean appearance

• Good dimensional stability

• Suitable for precision plastic connector housings

• Useful for medical and laboratory equipment

• More comfortable handling compared with some metal housings

PSU housing can be a practical choice when the application does not require full metal shielding but needs a reliable, lightweight and insulated connector structure.

However, if the application requires strong EMC shielding, a pure plastic housing may not be enough by itself. In that case, a metal connector or plastic-over-metal connector may be more suitable.

PPSU Housing

PPSU, or polyphenylsulfone, is another high-performance engineering plastic. It is often selected for demanding applications because of its heat resistance, chemical resistance and long-term stability.

PPSU is especially useful in medical and high-end equipment applications where connectors may need to withstand repeated cleaning, sterilization or exposure to demanding operating conditions.

Main advantages of PPSU housing include:

• Excellent heat resistance

• Good chemical resistance

• Good dimensional stability

• Strong insulation performance

• Suitable for repeated sterilization requirements

• Suitable for high-end medical connector applications

• Good balance between durability and lightweight design

PPSU is often used when the connector needs better resistance to heat, chemicals or sterilization compared with ordinary plastics. It is also commonly used in plastic-over-metal connector designs as an outer housing material.

Plastic-over-Metal and Overmolded Metal Connector Housing

Plastic-over-metal connectors, also known as overmolded metal connectors in many applications, combine the advantages of metal and engineering plastic. This structure usually uses an internal metal shell or shielding structure together with an outer plastic housing.

For push pull self-locking connectors, this design can provide a strong balance between EMC shielding, mechanical protection, insulation, waterproof performance and user-friendly operation.

A plastic-over-metal connector may use a metal inner structure for shielding and strength, while the outer housing uses PPSU or another engineering plastic for insulation, appearance and handling comfort.

Main advantages of plastic-over-metal housing include:

• Combines metal strength with plastic insulation

• Supports better EMC shielding than pure plastic housing

• Provides improved handling comfort

• Can support waterproof connector design

• Suitable for high-end medical equipment

• Suitable for semiconductor and precision devices

• Offers a clean and professional appearance

• Helps protect internal metal structure

• Can be customized for special equipment needs

Plastic-over-metal connectors are useful when pure plastic connectors do not provide enough shielding or mechanical strength, but pure metal connectors may be too heavy, too cold to touch or less suitable for certain medical equipment designs.

This housing structure is often selected for applications that require both performance and user experience.

Metal vs Plastic vs Plastic-over-Metal: Which Housing Type Should You Choose?

Different housing types have different advantages. There is no single best material for every connector. The right choice depends on the application environment, equipment structure and performance requirements.

For applications where strength and shielding are the main priorities, metal housing is often preferred. For lightweight and insulated equipment, plastic housing can be a good option. For applications that require both shielding and a user-friendly outer surface, plastic-over-metal housing is often a strong choice.

How to Choose Housing Material by Application

Housing material selection should be based on the real operating conditions of the equipment. The following application examples can help narrow the choice.

For Medical Devices

Medical devices often require clean appearance, reliable insulation, easy handling and resistance to cleaning or sterilization processes. In many medical applications, PSU, PPSU and plastic-over-metal housings are commonly considered.

Recommended options may include:

• PSU plastic housing for lightweight and insulated connector design

• PPSU housing for higher heat and chemical resistance

• Plastic-over-metal housing for EMC shielding and medical-friendly outer design

• Pearl chrome plated brass housing for precision metal connector applications

Important selection factors for medical connectors include:

• Sterilization resistance

• Biocompatibility requirements

• Insulation performance

• Easy handling

• Color identification

• Compact structure

• Stable mating performance

• Reliable push pull locking

For high-end medical equipment, plastic-over-metal connectors can be a practical option because they combine shielding performance with a clean, insulated and user-friendly outer shell.

For Industrial Equipment

Industrial equipment often requires mechanical strength, vibration resistance, stable connection and environmental protection. Metal housings are commonly used in these applications because they can provide strong mechanical protection and better shielding.

Recommended options may include:

• Brass housing for durable and precise metal connector structure

• Aluminum alloy housing for lighter metal connector design

• Black chrome plating for a dark industrial appearance

• Plastic-over-metal housing when shielding and handling comfort are both needed

Important selection factors for industrial connectors include:

• Mechanical strength

• Vibration resistance

• Impact resistance

• EMC shielding

• Waterproof and dustproof rating

• Corrosion resistance

• Cable strain relief

• Long service life

For equipment exposed to harsh environments, the housing material should be selected together with sealing structure, cable assembly, contact design and surface treatment.

For Testing and Measurement Equipment

Testing and measurement equipment often requires stable signal transmission, frequent mating and a professional appearance. The connector housing should support accurate alignment, repeated use and reliable locking.

Recommended options may include:

• Pearl chrome plated brass housing for precision instruments

• Aluminum alloy housing for portable test equipment

• Plastic-over-metal housing for shielding and handling comfort

• PSU or PPSU housing for insulated and lightweight designs

Important selection factors include:

• Mating cycle life

• Signal stability

• Housing strength

• Shielding requirement

• Weight

• Easy operation

• Panel installation space

Because testing equipment may require frequent connection and disconnection, the housing material should support long-term durability and smooth push pull operation.

For Semiconductor and Precision Equipment

Semiconductor and precision equipment may require cleanliness, low contamination risk, stable shielding and reliable performance. In these applications, metal and plastic-over-metal housings are often considered.

Recommended options may include:

• Metal housing for shielding and mechanical stability

• PPSU housing for clean and stable plastic structure

• Plastic-over-metal housing for shielding, insulation and handling comfort

Important selection factors include:

• EMC shielding

• Cleanliness

• Chemical resistance

• Dimensional stability

• Signal integrity

• Environmental resistance

• Customization requirements

For high-end precision applications, connector material selection should be discussed together with cable assembly, contact layout, shielding method and application environment.

For Portable or Lightweight Equipment

For portable instruments, handheld devices or mobile systems, weight is an important design factor. In these applications, plastic housing or aluminum alloy housing can be considered.

Recommended options may include:

• PSU housing for lightweight and insulated structure

• PPSU housing for higher performance plastic applications

• Aluminum alloy housing for lightweight metal connector design

Important selection factors include:

• Weight limitation

• Handling comfort

• Mechanical strength

• Cable flexibility

• Equipment size

• Appearance design

• User operation frequency

A lightweight housing can improve user comfort and reduce the total weight of the equipment, especially when the connector is used on handheld or portable devices.

Key Factors to Consider Before Selecting Connector Housing Materials

Before choosing the housing material for a push pull self-locking connector, users should evaluate both technical requirements and practical use conditions.

Important factors include:

• Application environment

• Mechanical strength requirement

• Weight limitation

• EMC shielding requirement

• Sterilization requirement

• Chemical resistance

• Corrosion resistance

• Waterproof and dustproof rating

• Electrical insulation requirement

• Biocompatibility requirement

• Appearance and color requirement

• Mating cycle requirement

• Surface wear resistance

• Cable direction and strain relief

• Cost and production quantity

• Customization requirement

If the connector will be used in a high-vibration industrial environment, metal housing may be more suitable. If the connector will be used in a medical device that requires insulation and sterilization resistance, PSU, PPSU or plastic-over-metal housing may be more appropriate. If the device requires both EMC shielding and a plastic outer surface, a plastic-over-metal connector can provide a balanced solution.

The key is not to choose the most expensive material, but to choose the material that matches the actual application.

Conclusion

Housing material selection is an important part of push pull self-locking connector design. It affects not only the connector appearance, but also mechanical strength, shielding performance, insulation, weight, corrosion resistance, sterilization resistance and long-term reliability.

Metal housings such as brass and aluminum alloy are suitable for applications that require strength, durability and shielding. Pearl chrome plating and black chrome plating can improve appearance and surface performance. Plastic housings such as PSU and PPSU are useful for lightweight, insulated and medical-style connector designs. Plastic-over-metal housings combine the advantages of metal structure and engineering plastic outer housing, making them suitable for high-end medical, semiconductor and precision equipment applications.

There is no universal housing material for every connector. The best choice should be based on the equipment environment, mating frequency, shielding requirement, sterilization requirement, weight limitation and customization needs.

QM Connectors provides metal push pull connectors, plastic push pull connectors, overmolded metal connectors and customized connector solutions for different application requirements. If you need help choosing between brass, aluminum alloy, PSU, PPSU or plastic-over-metal connector housings, QM Connectors can support your project with suitable connector structure, housing material, plating option and cable assembly solutions.

FAQ About Connector Housing Materials

1. What are the common housing materials for metal push pull connectors?

Common metal housing materials include brass and aluminum alloy. Brass is often used when strength, precision and durability are important. Aluminum alloy is often considered when a lighter metal housing is preferred.

2. What plating options are commonly used for metal connector housings?

Common plating options include pearl chrome plating and black chrome plating. Pearl chrome plating provides a clean and professional metallic appearance, while black chrome plating gives the connector a darker, low-reflection and industrial-style appearance.

3. What is the difference between brass and aluminum alloy connector housings?

Brass usually provides good mechanical strength, machining stability and durability. Aluminum alloy is lighter and suitable for applications where weight reduction is important. The best choice depends on the application environment, mechanical requirements, weight limitation and surface treatment needs.

4. What plastic material is commonly used for plastic push pull connectors?

PSU and PPSU are commonly used engineering plastics for plastic push pull connector housings. They provide lightweight structure, good insulation and stable performance for suitable medical, laboratory and precision equipment applications.

5. Why is PPSU used in plastic-over-metal connectors?

PPSU is often used because it offers good heat resistance, chemical resistance, insulation performance and long-term stability. When combined with a metal inner structure, PPSU can help create a connector housing that supports both shielding performance and user-friendly handling.

6. Which housing material is better for medical connectors?

For medical connectors, PSU, PPSU and plastic-over-metal housings are commonly considered. The final choice depends on sterilization requirements, biocompatibility needs, shielding requirements, weight, appearance and equipment design.

7. Which connector housing material provides better EMC shielding?

Metal housings generally provide better EMC shielding than pure plastic housings. Plastic-over-metal connectors can also provide shielding when they include a proper internal metal shielding structure.

8. Can connector housing material and color be customized?

Yes. In many custom connector projects, housing material, plating, color, cable direction, keying design, waterproof structure and cable assembly can be customized according to the application requirements.
