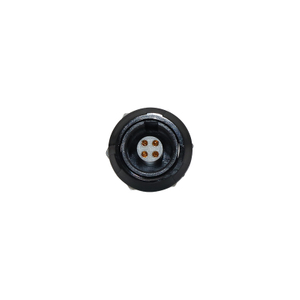

QM PKG.1P.304.NLLN is a 4-pin plastic push-pull self-locking connector receptacle in 1P size. It features a PSU housing that can withstand 134°C high-temperature sterilization, enables fast mating, is push-pull self-locking and polarized to prevent misinsertion. Combining lightweight design, durability and medical safety standards, PKG.1P.304.NLLN is the preferred choice for many medical consumables.
Gold-plated contacts ensure low contact resistance and minimal signal attenuation. It delivers stable performance for both weak signal sensing and medium power transmission, with strong anti-interference ability to maintain data integrity in various working environments.
The push-pull latching system enables fast and secure connection: push to lock, pull to release. It supports smooth blind mating without loosening or accidental disconnection, making it ideal for frequently plugged medical handles, probes and device cables.
Constructed with high-temperature PSU/PPSU material, it can withstand 134°C autoclaving, chemical corrosion and medical disinfectants. Excellent biocompatibility makes it highly suitable for repeated-use medical connectivity applications.
Multiple key coding options effectively prevent wrong insertion and cross-connection. This protective design avoids short circuits or equipment damage caused by misoperation, greatly improving the safety and stability of the entire system.
The mechanical lifespan reaches thousands of mating cycles. Electrical performance remains stable after long-term use, ensuring consistent quality in mass production and long-term equipment applications.
Parameters | Specifications |
Operating Temperature | -55°C~150°C |
Humidity(max) | <=95%[at 60°C/140°F] |
Salt Spray Corrosion | 96hr |
Vibration | 15g[10Hz~2000Hz] |
Mating Cycles | 1000+ times |
Contact Material | Gold Plated Tin Bronze |
Housing Material | PSU |
Insulator Material | PPS |
Contact Diameter | 0.9mm |
Rated Current | 8A |
Rated Voltage | 1200V AC |
Insulator Resistance | 5000 mΩ[at 5000V AC] |
Contact Resistance | <=9 mΩ |
IP Rate | IP50 |
Cryoablation equipment, ultrasound ablation equipment, radiofrequency ablation devices, microwave ablation systems, cardiac electrophysiology mapping & ablation catheter systems, tumor ablation therapy systems.
Ultrasonic scalers and handpieces, high-frequency electrotomes, bipolar coagulation devices, plasma surgical equipment, surgical power systems, laparoscopic, thoracoscopic and hysteroscopic instruments.
Medical endoscope main units and handpieces, endoscopic imaging systems, light source cables, fiber endoscopes, electronic endoscopes, ureteroscopes, cystoscopes and arthroscopes.
Multi-parameter monitors, Holter ECG, EEG and EMG equipment, intraoperative neuro-monitoring systems, anesthesia depth monitors, high-end SpO2 and invasive blood pressure sensors.
Physiotherapy devices, pain relief instruments, nerve stimulators, spinal cord stimulators, rehabilitation robot sensor connections, negative pressure and pulse pressure therapy devices.
Blood gas analyzers, POCT detectors, immunofluorescence and chemiluminescence analyzers, flow cytometers, biosensors, precision sampling and testing probes.
A: Yes, we can customize the pin count according to your requirements. Popular options for the 2P series include 14, 19, 26, and 32 pins. We also support hybrid configurations such as optical-electrical, high-low voltage, and fluid-circuit combinations to meet different device needs. You can send us your requirements or check standard products under PRODUCT-CUSTOMISED CONNECTORS first.
A: Yes, we offer common colors including white and gray. However, available colors vary by model, and some custom colors may require a higher minimum order quantity. Please contact us for verification based on your specific model.
A: Standard plastic P-series connectors on the market cannot achieve IP68 waterproofing. If waterproofing is required, you may consider our metal series. For waterproof plastic connectors, we recommend our plastic-over-metal series, which ensures biocompatibility and meets IP68 waterproof requirements.
