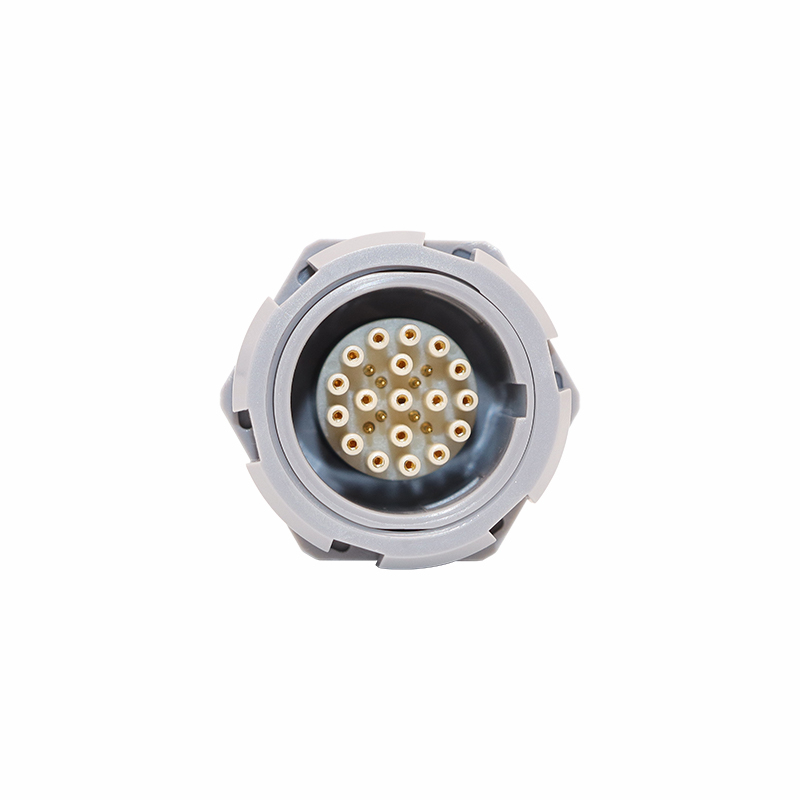

This medical & semi-conductor high voltage hybrid connector is a self-locking push-pull type with 4P.H18+308 pin configuration, integrating 18 high-voltage cores and 8 signal cores. It’s specially designed for high-voltage and signal transmission scenarios in medical and semiconductor fields, featuring reliable self-locking, excellent insulation and pressure resistance. Adopting high-quality PSU and PPS materials, it complies with ROHS and has an IP61 protection grade in mated state, ensuring stable performance in harsh working environments.
Super High Voltage Withstand Performance The connector withstands 3KV AC between high-voltage pins and 12KV AC between pins and housing for 60s with leakage current <0.5mA, meeting the strict high-voltage transmission requirements of medical and semiconductor equipment, and the insulation resistance reaches 5000MΩ at 500V DC.
Wide Temperature Adaptability It operates stably in the temperature range of -55°C to 150°C and can withstand maximum humidity of ≤95% at 60°C, with strong environmental adaptability, suitable for the complex working conditions of various industrial and medical equipment.
Reliable Mechanical & Electrical Performance The contact resistance is ≤15mΩ, rated working current is 5A, and the shell has a mechanical life of 1000 times. The 0.7mm diameter high and low voltage contacts ensure stable hybrid transmission of high voltage and signal, with low transmission loss.
High-quality Material & Compliance The shell is made of PSU, insulator of PPS/PEEK, and contacts of tin bronze plating, all materials comply with ROHS requirements. The mated IP61 protection grade effectively prevents dust and slight moisture from entering, ensuring long-term use safety.
Professional Structural Design It features a self-locking push-pull structure and positioning key design, with a recommended mounting hole size of 25.10±0.1mm, easy to install and plug, and the front ring with multi-color coding is convenient for identification and matching, avoiding wrong insertion.
Safe Use Design It is strictly forbidden to plug and unplug with electricity, and the solder joints need secondary insulation treatment, which maximizes the use safety and avoids potential safety hazards caused by improper operation in high-voltage scenarios.
Ablation Catheter Equipment As an ablation catheter connector, it is used for high-voltage and signal transmission of medical ablation catheters, realizing the stable connection between the catheter and the host, and ensuring the accurate and safe operation of the ablation equipment in clinical treatment.
Medical High-voltage Equipment Applied to various medical high-voltage equipment, such as electrosurgical instruments and medical testing equipment, undertaking the high-voltage power supply and signal control transmission of the equipment, with high safety and stability.
Semiconductor Manufacturing Equipment Used in semiconductor production and testing equipment, adapting to the high-temperature and high-voltage working environment of the semiconductor industry, realizing the hybrid transmission of high voltage and control signals, and meeting the precision transmission requirements of semiconductor equipment.
Industrial High-voltage Test Equipment Suitable for various industrial high-voltage test and detection equipment, with excellent pressure resistance and environmental adaptability, ensuring the reliable transmission of electrical signals during the test process, and the self-locking structure prevents accidental disconnection.
Precision Electronic Equipment Applied to other precision electronic equipment that requires hybrid transmission of high voltage and weak signals, with low contact resistance and stable electrical performance, effectively ensuring the normal operation of the equipment.
A: Hot plugging will cause arc discharge in high-voltage transmission, which may damage the contact pins and insulators, and even lead to safety hazards such as short circuit, so it is strictly prohibited.
A: Yes, the insulator can be selected from PPS (coded L) and PEEK (coded K) according to the use requirements, and customized processing can be provided for special scenarios.
A: The front ring has multi-color coding (A: blue, G: gray, etc.), which is used for the identification and matching of the connector plug and socket to avoid wrong insertion and ensure correct connection.
A: The connector reaches IP61 protection grade in the mated state, and it is necessary to ensure the tight fit of the plug and socket during use; the installation panel should be sealed and fixed to prevent dust and moisture from entering from the mounting gap.
A: The recommended mounting hole size is 25.10±0.1mm, and the dimensional tolerance must be strictly controlled to ensure the firm installation of the connector and avoid poor contact caused by loose installation.
