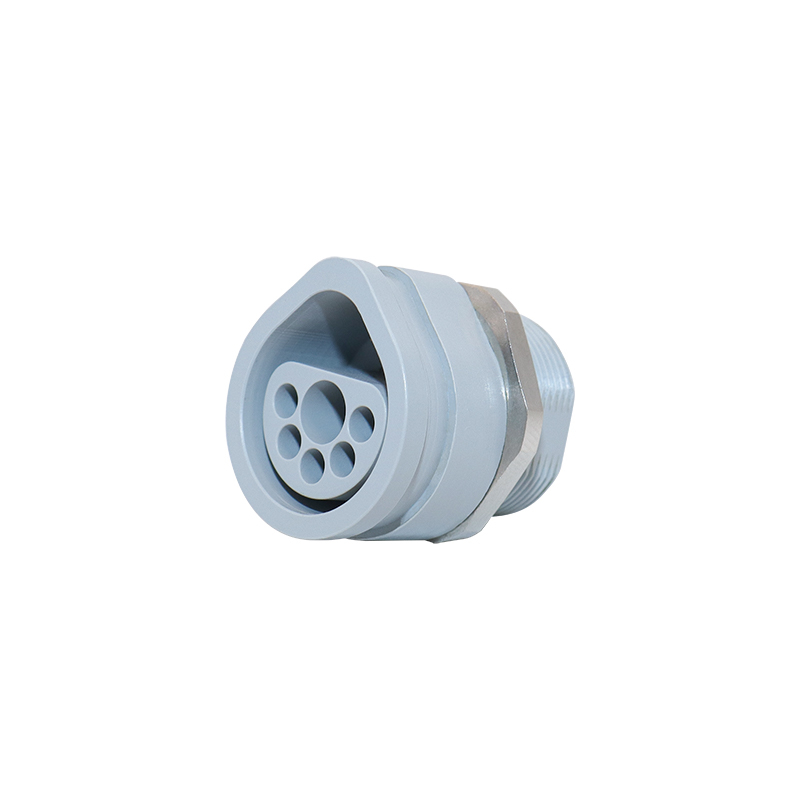

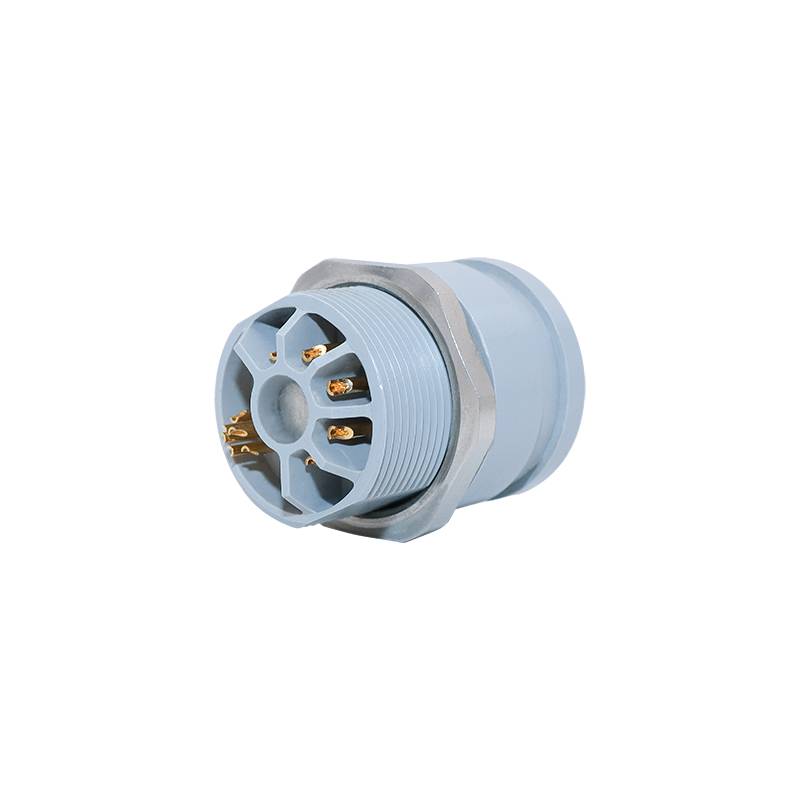

PAG/PKG.D57.H05+309 is a magnetic push-pull self-locking connector with 5 high-voltage pins and 9 low-voltage contacts. It combines NdFeB magnetic adsorption and mechanical self-locking for fast blind insertion and stable connection, supporting mixed high and low voltage signal transmission. Boasting excellent pressure and corrosion resistance, it’s ideal for high-precision electronics in harsh environments, with all RoHS-compliant materials meeting industrial environmental standards.
This high voltage connector withstands 15000V AC and has 5000MΩ insulation resistance, effectively preventing electric leakage and ensuring ultra-safe operation in all high-voltage working conditions with a reliable insulation structure.
Adopting NdFeB magnetic design, it enables one-hand blind insertion and anti-misplugging. Mechanical self-locking ensures stable connection, perfectly suited for surgical robot connector and narrow space high-frequency plugging scenarios.
PSU housing and gold-plated tin bronze pins ensure low contact resistance. It resists extreme temperature (-50°C~85°C) and 48h salt spray, ideal for HV and LV connector use in harsh high-humidity industrial and medical environments.

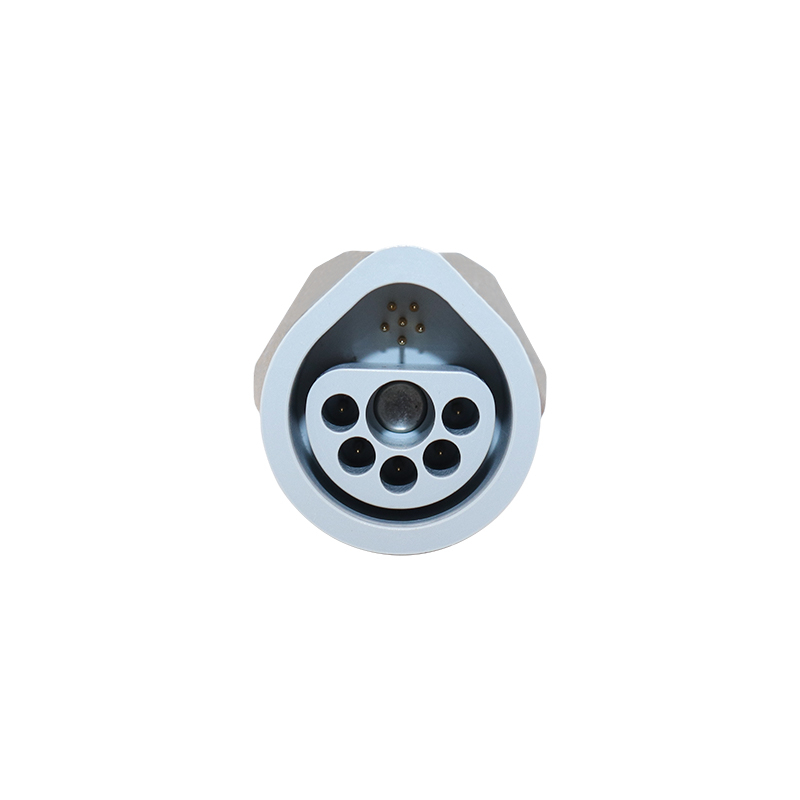

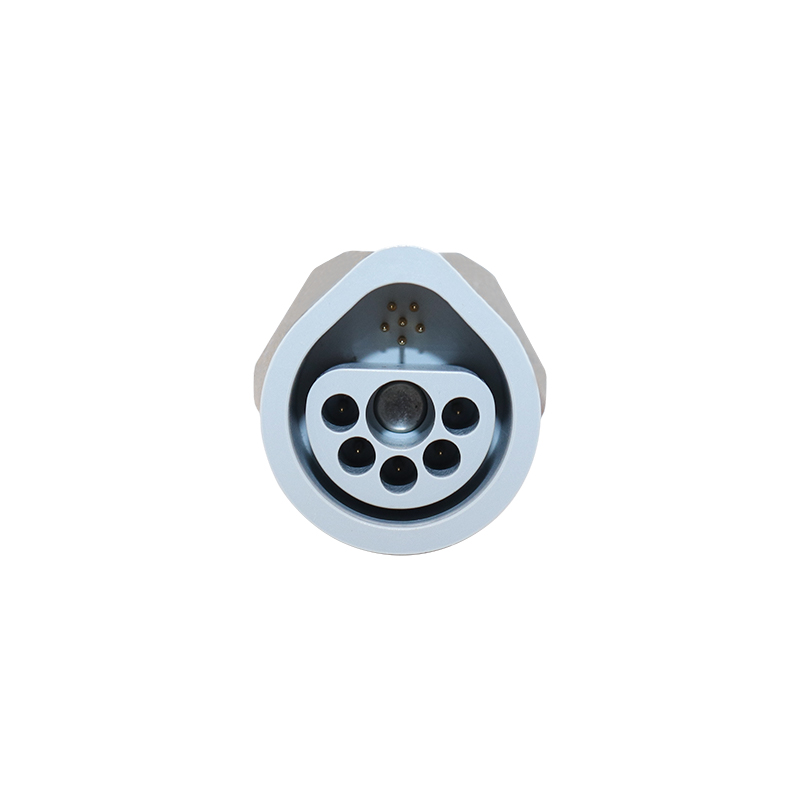

This HV and LV connector features H05+309 configuration, integrating 5 HV and 9 LV pins for mixed signal transmission. The 14-pin design saves space and greatly improves the integration efficiency of precision electronic equipment.
With 5000+ plugging cycles, it meets high-frequency use demands of high voltage connector in industry and medical fields. All RoHS-compliant raw materials meet global environmental specs, available for international trade projects.

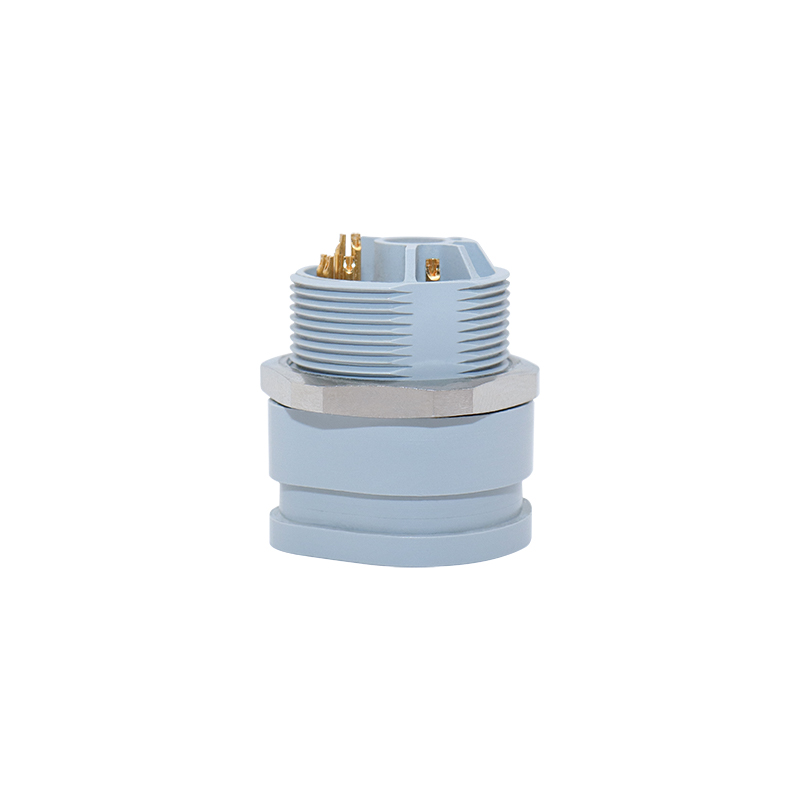

The customized alignment key and panel mounting design (PKG model) fit surgical robot connector and industrial precision equipment perfectly. Tail potting seal enhances protection, ensuring stable performance in professional application scenarios.
It is suitable for cryoablation systems, electrophysiology ablation equipment and surgical robot end effectors requiring high and low voltage signal transmission and fast plugging. Its high voltage resistance and insulation meet medical safety standards, and the magnetic self-locking design enables one-handed operation for doctors in the operating room, improving operational efficiency.
It is applied to multi-channel signal acquisition equipment, high-voltage testing instruments and industrial sensor modules in harsh industrial environments. It adapts to extreme temperatures and high humidity, and the hybrid pin design realizes integrated power and signal transmission, greatly saving installation space and enhancing the integration of testing equipment.
It is used for airborne high-voltage electronic components, UAV avionics systems and tactical communication equipment. It has excellent salt spray corrosion and mechanical shock resistance, ensuring stable signal transmission in aerospace and field military conditions. The magnetic push-pull design allows quick plugging and unplugging for convenient on-site maintenance.
It is applicable to high-voltage frequency converters, industrial robot control systems and semiconductor manufacturing equipment. Its mechanical life of over 5000 plugging cycles meets the high-frequency use needs of industrial sites. The PSU material housing features good mechanical strength and chemical corrosion resistance, adapting to complex industrial workshop environments stably.
It adapts to ≤95% humidity (60°C) and passes 48h salt spray test, usable in mild outdoor corrosive environments, extra protection is needed in severe ones.
It has 15000V ultra-high withstand voltage; hot plugging will generate arcs, damaging gold-plated pins, increasing resistance and even causing insulation breakdown.
Its solder joints need secondary insulator treatment, which prevents pin leakage and short circuits, ensures insulation performance and avoids high-voltage safety hazards.
Standard is H05+309 pin configuration and PSU (RAL7001) color. We support customization for both per your needs, with personalized services for bulk orders.
