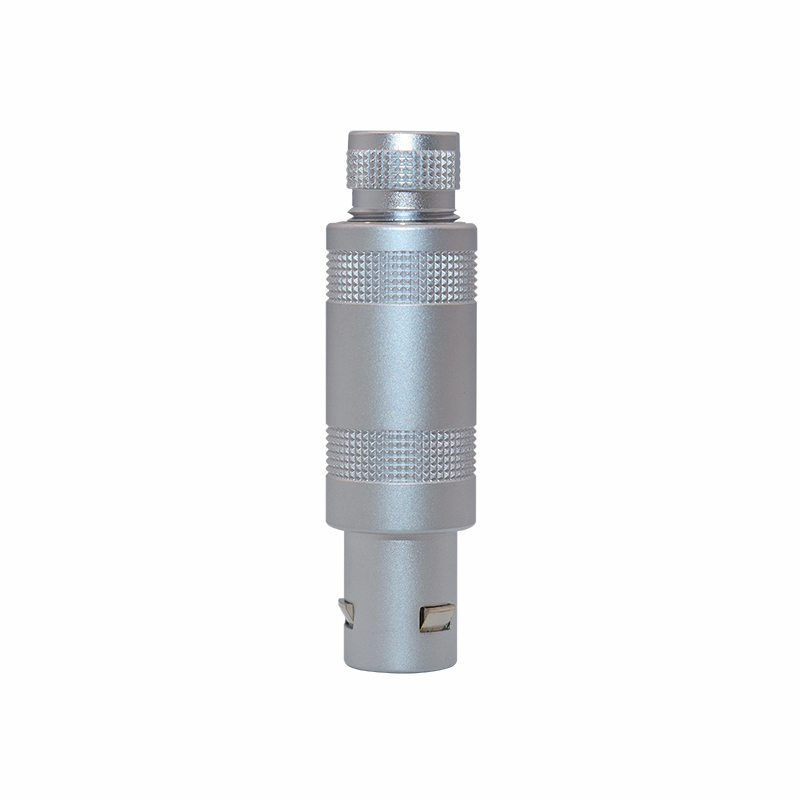

The S Series connectors are designed for high-density installation, enabling efficient layout in limited space. Equipped with 360°shielding, they provide all-round EMC protection against electromagnetic interference. Featuring a half-moon stepped insert, they adopt a hermaphroditic (genderless) contact design for reliable and convenient connection.
The half-moon stepped hermaphroditic insert enables universal connection between identical connectors without distinguishing male and female. This design greatly reduces inventory types and simplifies on-site wiring. The unique half-moon structure provides effective anti-misinsertion protection and stable positioning, ensuring reliable contact, low resistance, and strong resistance to vibration in harsh environments.
360° full-circumference shielding creates a complete protective barrier against electromagnetic interference. It effectively blocks external noise and prevents internal signal radiation, ensuring stable transmission of analog and digital signals. This all-round EMC protection guarantees stable performance in industrial, automotive, and shipboard equipment with complex electromagnetic environments.
The S Series supports high-density installation, allowing more connectors to be arranged in limited space. Its compact structure saves panel space and optimizes equipment layout. This is especially suitable for control cabinets, test equipment, and shipboard systems where high integration and miniaturization are required.
Combining a robust half-moon insert structure and reliable shielding, the S Series ensures long-term stable connection. It features high durability, strong anti-vibration performance, and good sealing. These advantages make it ideal for demanding applications such as industrial automation, marine electronics, and mobile equipment.
Parameters | Specifications |
Operating Temperature | -55°C~200°C |
Humidity(max) | <=95%[at 60°C/140°F] |
Salt Spray Corrosion | 1000hr |
Vibration | 15g[10Hz~2000Hz] |
Mating Cycles | 10000+ times |
Contact Material | Gold Plated Tin Bronze |
Housing Material | Chrome-plated Brass |
Insulator Material | PPS |
Hexagon Nut Material | Nickel-plated Brass |
Contact Diameter | 0.9mm |
IP Rate | IP50 |
Rated Current | 2A |
Rated Voltage | 1200V AC |
Insulation Resistance | >=5000 mΩ |
Contact Resistance | <=9 mΩ |
IP Rate | The enclosure provides waterproof protection up to IP68, and achieves IP67 when mated with the QM TE series plug. |
They are applied in oscilloscopes, spectrum analyzers, data acquisition systems, sensors, probes, and NDT equipment. High-density layout, anti-vibration, and EMC protection ensure accurate and reliable signal transmission.
Suitable for cameras, microphones, interface boxes, and live broadcast equipment. The design supports fast blind-mating, anti-mismating, and high-density installation for flexible on-site connection.
Applied in industrial cameras, robots, PLCs, sensors, and control cabinets. High-density integration, strong vibration resistance, and full EMC protection guarantee stable operation in harsh industrial environments.
Used in particle physics, precision instruments, and data loggers. High reliability, strong anti-interference, and durable frequent-mating performance meet strict laboratory testing requirements.
Ideal for airborne equipment, ground stations, military communications, and vehicle electronics. Miniature size, anti-vibration, and EMC shielding adapt to harsh mobile and airborne environments.
Applied in wafer testing and automatic production equipment. High-density arrangement, low contact resistance, and high stability ensure precise signal transmission in precision manufacturing.
A:The hermaphroditic insert features a unique half-moon stepped structure, allowing same-type connectors to mate directly without male/female distinction. It effectively prevents misinsertion and ensures stable positioning. This design greatly simplifies inventory, reduces costs, and enables flexible on-site wiring.
A: 2, 3, 4, 5, and 6 pins are standard. Other pin counts are available upon customization. Please contact us for more details.
A: The S Series connectors support up to more than 1000 mating cycles, ensuring long service life and stable performance.
