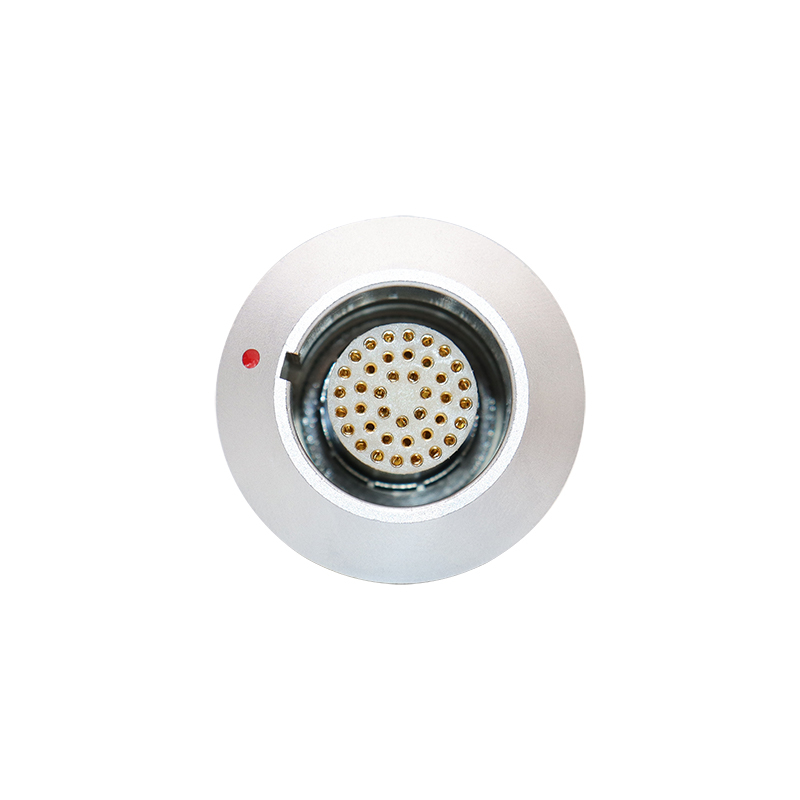

MGG.4B.340.CLL 40-pin connector features a classic push-pull self-locking design with 40 high-density signal contacts. It has a rated current of 2–3A per contact, supports wide temperature operation, and provides excellent EMC shielding performance. With standard keying for anti-mismating, it supports solder cup, PCB, and other termination methods. MGG.4B.340.CLL offers long mechanical life, strong environmental resistance, and high vibration resistance, making it widely used in multi-channel signal connections for medical, industrial, and test equipment.
This connector series offers a well-balanced size with excellent space efficiency. It provides more contact pins than smaller connectors while occupying less space than larger models. With up to 40 contacts, it supports multi-channel signal transmission in a compact body, making it ideal for devices that require high signal density without excessive volume.
It adopts a reliable push-pull self-locking mechanism that enables quick mating and unmating. The connector locks automatically when plugged in and releases smoothly when pulled, ensuring efficient operation even in limited operating space. This stable locking structure prevents accidental disconnection caused by vibration or movement, ensuring continuous and safe connection.
The connector features excellent shielding performance, strong anti-vibration capability, and wide temperature resistance. It maintains stable electrical performance under harsh environmental conditions, including extreme temperatures, mechanical vibration, and electromagnetic interference. It is highly suitable for precision equipment in medical, industrial, and testing applications.
Designed with standard interface dimensions and anti-mismating keying, it ensures accurate and safe connection. It supports multiple termination methods such as solder cup and PCB mounting, providing flexible wiring solutions. Its standardized structure allows easy replacement and upgrade, widely adapting to various multi-channel connection requirements.
Parameters | Specifications |
Operating Temperature | -55°C~125°C |
Humidity(max) | <=95%[at 60°C/140°F] |
Salt Spray Corrosion | 1000hr |
Vibration | 15g[10Hz~2000Hz] |
Mating Cycles | 10000+ times |
Contact Material | Gold Plated Tin Bronze |
Housing Material | Chrome-plated Brass |
Insulator Material | PPS |
Hexagon Nut Material | Nickel-plated Brass |
Contact Diameter | 0.7mm |
Length of Welding Cups | 4mm |
Rated Current | 2A |
Rated Voltage | 900V AC |
Insulator Resistance | 5000 mΩ[at 5000V AC] |
Contact Resistance | <=12.5 mΩ |
IP Rate | The enclosure provides waterproof protection up to IP68, and achieves IP67 when mated with the QM TE series plug. |
MGG.4B.340.CLL connector is widely used in high-end medical devices that require stable, anti-interference connections. It is commonly applied in patient monitors for ECG, blood pressure, and respiratory monitoring, ultrasound probes, endoscopy and minimally invasive surgical equipment, dental treatment systems, and rehabilitation devices. Its full-metal shielding ensures clear signal transmission, while the push-pull locking structure guarantees safe and reliable connection in clinical environments.
Ideal for precision testing and laboratory equipment, MGG.4B.340.CLL supports multi-channel signal transmission for data acquisition systems, oscilloscopes, signal analyzers, and automated test equipment. It provides stable connections for sensors measuring pressure, temperature, and vibration, and performs well in environmental test chambers and aging test equipment. High density and durability make it suitable for long-term reliable testing applications.
Designed for harsh industrial environments, MGG.4B.340.CLL is widely used in industrial robots, visual inspection systems, servo control systems, and automated production lines. It supports mixed transmission of power, IO signals, and communication data with high current capacity and strong anti-vibration performance. Its robust metal structure and stable connection ensure stable operation in dusty, vibrating, and high-load workshop conditions.
MGG.4B.340.CLL provides high-density, multi-signal integrated connection for professional broadcast cameras, live production systems, stage lighting, and audio equipment. It supports synchronous transmission of video, audio, control, and power signals, with quick push-pull mating for fast on-site setup. Stable shielding and reliable locking ensure uninterrupted signal transmission during outdoor shooting and stage performances.
With excellent environmental resistance, MGG.4B.340.CLL is suitable for aerospace equipment, rail transit systems, and special vehicles. It features high strength, shock resistance, and wide temperature adaptability, ensuring stable connection in airborne devices, cabin control systems, and vehicle-mounted equipment. Its compact and durable design meets the high-reliability requirements of transportation and special equipment.
MGG.4B.340.CLL is also applied in semiconductor equipment, scientific instruments, emergency communications, and marine detection devices. It supports stable signal and power transmission in vacuum, high-altitude, and salt-spread environments. High durability, long mechanical life, and excellent sealing performance make it a preferred solution for precision instruments and special industrial applications.
A:Yes, other pin configurations are available, but new tooling or CNC machining may be required. Please contact us for confirmation.
A:The model MGG.4B.340.CLL uses G keying with excellent anti-mismating performance. If you need other key positions, please let us know and we will check if additional tooling is required.
A:Our QM 4B connectors are highly compatible with most standard connectors. We provide free compatibility testing, easy replacement, short lead times, and support small-batch orders. Materials are RoHS compliant, and our company holds CE, ISO9001 and ISO13485 certifications, ensuring high reliability and stable quality.
