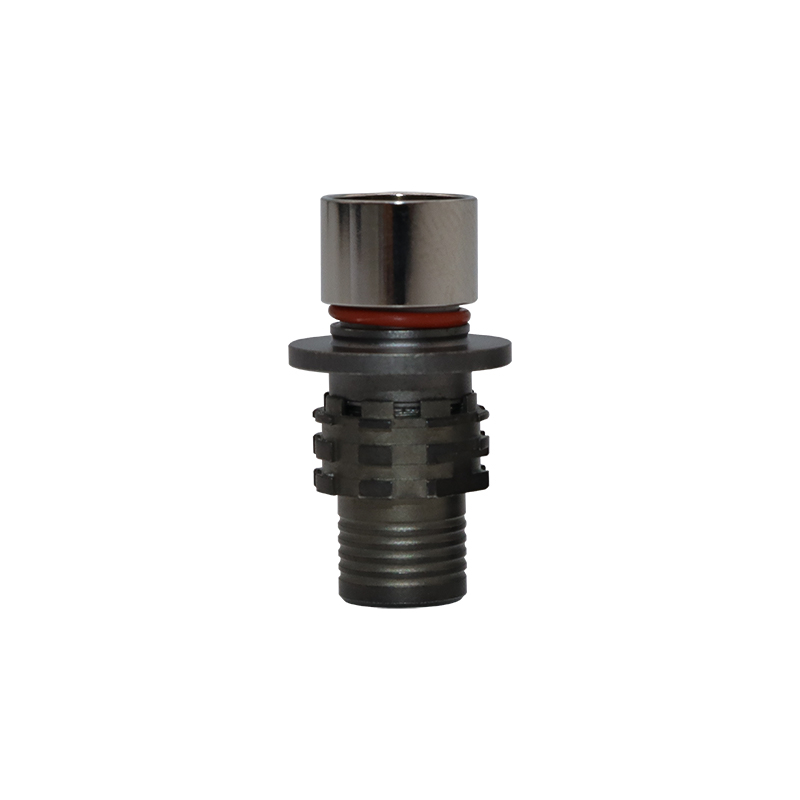

TLA.0G.316.GLA is a high-performance mini push-pull connector engineered for UAV pod, binocular/monocular optical equipment and security & defense scenarios, with 16 low-voltage pin configuration and 0.3mm ultra-fine contact diameter. Boasting IP68 full-sealed protection, 60bar extreme pressure resistance and vibration resistant performance, it adopts nickel-plated brass housing and PPS insulation with 5000 times mechanical life. All materials comply with ROHS requirements, ensuring stable 1A current transmission in harsh outdoor and industrial environments for precision optical and security equipment.
Configuration With 0.3mm ultra-fine contact diameter and 16 low-voltage pin core configuration, it features a compact mini push-pull structural design, greatly saving installation space and perfectly matching the miniaturization design requirements of UAV pod, binocular and monocular precision optical equipment.
Optimized structural design ensures super anti-vibration performance, matching the high-frequency vibration working environment of UAV flight and mobile security & defense equipment, with 5000 times mechanical life and firm push-pull locking, avoiding accidental disconnection caused by vibration.
Reaching IP68 top waterproof and dustproof grade, it withstands a maximum environmental pressure of 60bar (870psi), adapting to outdoor rain, humidity and even short-term underwater working conditions, and is suitable for UAV pod and outdoor security & defense equipment in complex environments.
Professional shielding structure achieves 75dB shielding performance at 10MHz and 40dB at 1GHz, effectively resisting electromagnetic interference in complex security & defense environments, ensuring stable transmission of weak signals of binocular/monocular optical and UAV pod equipment.
Adopting gold-plated brass contacts and nickel-plated brass (gun color) housing/nuts, with PPS high-temperature resistant insulation, it passes 96hr salt spray corrosion test, adapting to outdoor salt fog and harsh industrial environments, and ensuring low contact resistance and long-term conductivity stability.
Working stably in -40°C~125°C extreme temperature range and ≤95% high humidity, with contact resistance ≤12.5mΩ, insulation resistance 5000MΩ and 750V withstand voltage, it ensures reliable 1A rated current transmission for long-term operation of security & defense and optical equipment.
Parameters | Specifications |
Operating Temperature | -40°C~125°C |
Humidity(max) | <=95%[at 60°C/140°F] |
Salt Spray Corrosion | 96hr |
P op(max) | 60 bar(870psi) |
Mating Cycles | 5000+ times |
Contact Material | Gold Plated Brass |
Housing Material | Nickle Plated Brass |
Insulator Material | PPS |
Other Shell Material | Nickel-plated Brass |
Contact Diameter | 0.3mm |
Shock Resistance | 100g[6ms] |
Rated Current | 1A |
Rated Voltage | 750V AC |
Insulator Resistance | 5000 mΩ[at 5000V AC] |
IP Rate | IP68 |
R(Max) | <=12.5mΩ |
As a dedicated connector for UAV pods, it supports the integrated transmission of high-frequency image coaxial signals and low-voltage control or power signals for aerial photography, monitoring, and reconnaissance pods. Its excellent vibration and shock resistance withstands the harsh conditions of drone flight, while the IP68 waterproof rating ensures reliable performance under complex outdoor weather.
Suitable for military and civilian binocular systems including infrared night-vision, laser ranging, and thermal imaging binoculars, its compact 1U structure greatly reduces installation space. Ultra-high shielding effectiveness suppresses electromagnetic interference, and hybrid signal transmission satisfies the multi-channel signal requirements of advanced binocular optical devices.
Designed for portable monocular night-vision devices, field detection tools, and precision optical instruments, it supports flexible cable matching and features a push-pull quick-connect structure for easy field operation. Its ultra-wide temperature range guarantees stable performance even in extreme outdoor environments.
Widely used in portable surveillance systems, anti-drone solutions, border detection devices, and on-site law enforcement terminals, its superior shielding and anti-interference capabilities preserve signal security and accuracy. The IP68 protection level makes it ideal for long-term outdoor deployment.
Ideal for portable environmental monitoring, industrial precision measurement, and geological survey instruments, it features excellent resistance to extreme temperatures and high pressure, adapting to harsh outdoor working conditions. Hybrid signal transmission supports the integrated connection of high-frequency and low-voltage signals for detection systems.
Applied in aerospace ground test setups and aviation portable auxiliary devices, its outstanding mechanical stability and high temperature resistance meet the strict reliability standards of aerospace equipment. The compact push-pull design enables easy assembly and operation in confined spaces.
A: It has 0.3mm ultra-fine contact and 16-pin high-density configuration with mini push-pull design, saving installation space, and excellent vibration resistance avoids disconnection caused by UAV flight vibration, matching UAV pod's miniaturization and anti-vibration requirements.
A:Its mini compact design matches the portability of optical equipment, high shielding performance resists electromagnetic interference for weak signal transmission; contact resistance ≤12.5mΩ, 1A rated current ensures stable low-voltage power and signal transmission.
A:Optimized structural and push-pull locking design enhance anti-vibration performance, adapting to high-frequency vibration scenarios; it has 5000 times mechanical life, far higher than ordinary connectors, reducing maintenance frequency for mobile equipment.
