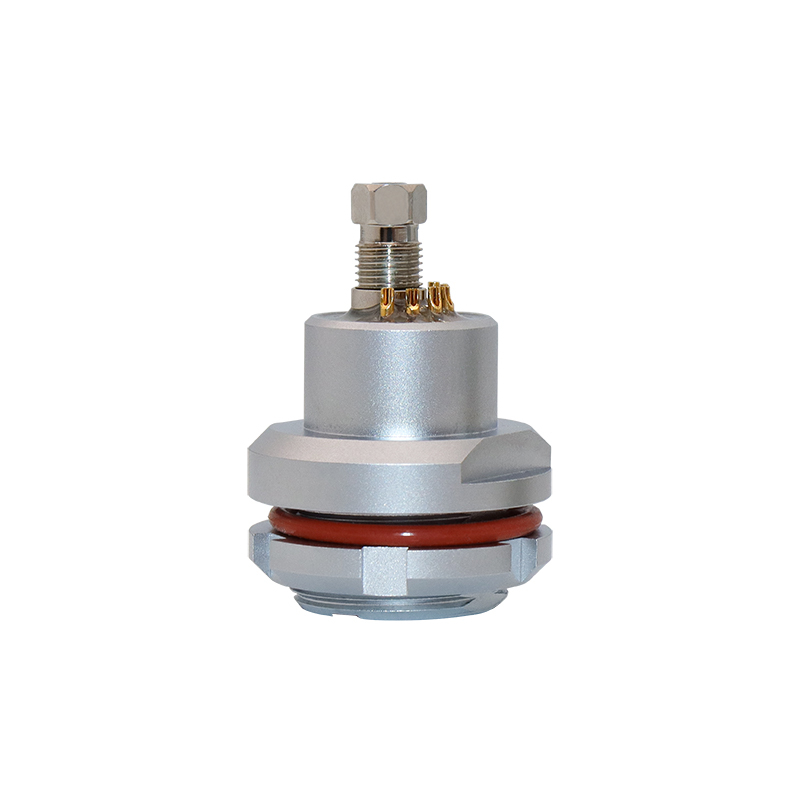

ZLN.2F.7106.CLL is a high-performance fiber optic hybrid connector engineered for fiber, laser, infrared equipment scenarios, and fully compatible with LEMO, FISHCER, ODU connector standards. It features a 1×LC fiber + 6 low-voltage pin core configuration, supporting dual-wavelength transmission of 1310nm/1550nm with ultra-low optical loss. Adopting a precision push-pull structural design, pearl-chrome plated brass housing and IP68 full-sealed protection, it integrates high-speed optical signal and stable electrical power/control signal transmission, with 5000 times mechanical life and full RoHS compliance, ensuring reliable operation in harsh industrial, outdoor laser/infrared and fiber communication environments.
Fiber-Electric Hybrid Transmission & Low Optical Loss Integrates 1 LC fiber core and 6 low-voltage electrical pins, realizing one-time transmission of high-speed optical signals and low-voltage power/control signals; the optical path is optimized with IL≤25dB and RL≥45dB, supporting 1310nm/1550nm dual-wavelength transmission, perfectly matching the signal transmission needs of fiber, laser and infrared optoelectronic equipment.
Full Compatibility with International Standard Connectors Designed in accordance with the interface and structural standards of LEMO, FISHCER and ODU connectors, it is fully compatible with the plugging and matching of these mainstream international brand connectors, with good interchangeability and universality, reducing the replacement and matching cost of equipment and facilitating system integration and upgrade.
95dB Ultra-high Shielding & Anti-interference Performance The professional 360° shielding structure achieves 95dB shielding at 10MHz and 80dB at 1GHz, effectively resisting complex electromagnetic interference in industrial and outdoor environments, avoiding the distortion of electrical control signals of laser/infrared equipment and ensuring the high-fidelity transmission of optical signals.
IP68 Full-sealed Protection & Extreme Environmental Adaptability With professional tail sealing and transparent epoxy resin potting treatment, it reaches IP68 waterproof and dustproof grade, withstands 60bar maximum environmental pressure and 96hr salt spray corrosion; it works stably in -55°C~125°C and resists 15g vibration/100g shock, adapting to harsh working conditions such as outdoor infrared detection, industrial laser processing and field fiber communication.
High-grade Material & Reliable Mechanical-Electrical-Optical Performance Tin bronze gold-plated electrical contacts (contact resistance ≤12.5mΩ) ensure stable electrical conductivity; pearl-chrome plated brass housing has excellent corrosion resistance and structural stability; PPS insulation material with high temperature resistance and insulation ensures the independent and reliable transmission of optical and electrical signals without mutual interference.
Precision Push-pull Structure & Long Mechanical Life Adopting the classic precision push-pull locking structure of international standard connectors, it realizes quick plugging and unplugging, precise positioning and anti-accidental disconnection; the structural design is optimized with 5000 times of mechanical life, far higher than the industry average, and meets the frequent plugging and unplugging needs of industrial equipment and mobile optoelectronic devices.
Parameter Category Specific Index
Model ZLN.2F.7106.CLL
Connector Type Fiber-electric hybrid push-pull socket
Core Configuration 1×LC fiber + 6 low-voltage electrical pins
Contact Diameter 1.25mm (fiber matching) / 0.7mm (electrical pin)
Contact Material Tin bronze gold-plated (electrical pin)
Housing Material Pearl-plated chrome brass
Other Metal Parts Nickel plated brass
Insulator Material PPS
Sealing Treatment Transparent epoxy resin potting + tail seal protection
Optical Performance
Supported Wavelength 1310nm, 1550nm
Insertion Loss (IL) ≤25dB
Return Loss (RL) ≥45dB
Electrical Performance
Rated Current 7A
Withstand Voltage (AC) 750V
Maximum Contact Resistance ≤12.5mΩ
Insulation Resistance ≥5000MΩ (test voltage 500V DC)
Shielding Performance 95dB (10MHz), 80dB (1GHz)
Mechanical Performance
Vibration Resistance 15g (10Hz ~ 2000Hz)
Shock Resistance 100g (6ms)
Mechanical Life 5000 times
Environmental Performance
Operating Temperature -55°C ~ 125°C
Maximum Humidity ≤95% (at 60°C)
Salt Spray Corrosion 96hr
Maximum Environmental Pressure 60bar (870psi)
IP Rating IP68 (mated state)
Compatibility LEMO/FISHCER/ODU connector compatible
Material Compliance RoHS compliant
Dimensional Tolerance ±0.1mm (unmarked size); ±0.5° (unmarked angle)
A: It is equipped with 1 LC fiber core, supporting dual-wavelength transmission of 1310nm and 1550nm, with optimized optical path design of insertion loss IL≤25dB and return loss RL≥45dB, ensuring high-fidelity transmission of optical signals.
A: It is fully compatible with LEMO, FISHCER and ODU connectors, with good interchangeability, which can directly replace the above brand connectors, reduce equipment replacement and matching costs, and facilitate the integration and upgrade of optoelectronic systems.
A: It adopts a separate structural design of fiber core and electrical pins, with high-temperature resistant and insulating PPS as the insulation material, which effectively isolates the optical and electrical transmission paths and ensures that the two types of signals are transmitted independently without mutual interference.
A: It works stably in -55°C~125°C, resists 15g vibration/100g shock and ≤95% high humidity, passes 96hr salt spray corrosion test and has IP68 waterproof performance, which can be stably used in outdoor salt spray, rain and harsh industrial environments.
A: Avoid violent plugging and unplugging to prevent damage to the precision fiber core; keep the fiber contact surface clean and free of dust, oil and other contaminants; ensure the plug and socket are accurately aligned during connection to avoid optical path deviation caused by wrong insertion.
