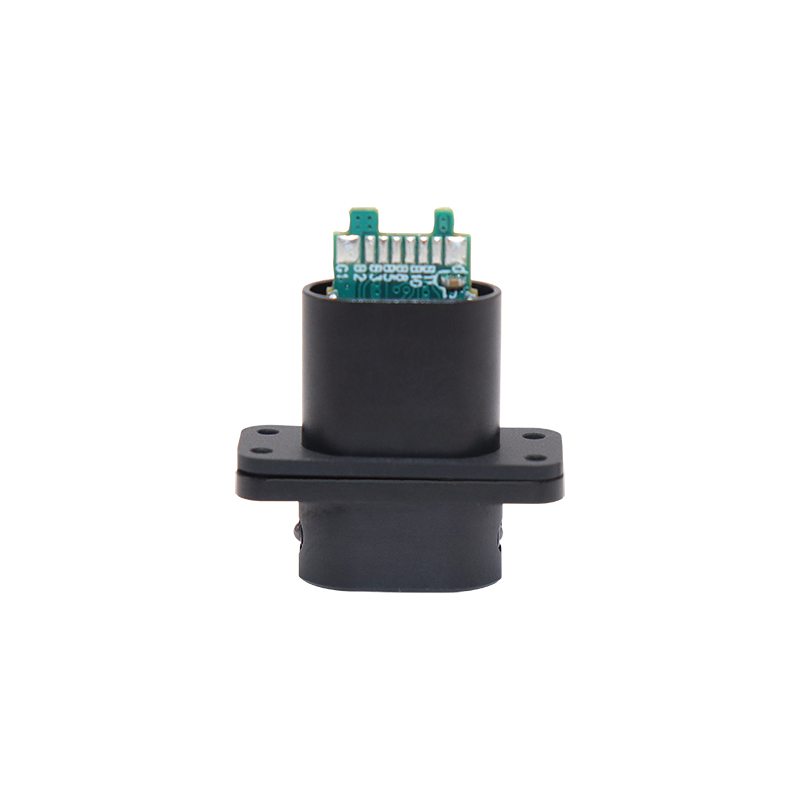

ZGC.0H.TYPEC31.X1NM4GS is a high-performance small size flat push-pull connector with USB3.1 Type-C female seat core configuration, tailored for security and defense, marine boat and compact electronic equipment scenarios. It integrates high-speed data transmission and stable power supply, boasting IP68 waterproof in mated state, 60bar extreme pressure resistance and excellent EMC shielding. Adopting high-strength aluminum alloy housing and FR-4 insulation, it works stably in harsh environments and all materials comply with RoHS requirements, ensuring reliable connection for professional equipment.
Built-in standard USB3.1 Type-C female seat supports high-speed data transmission and 3A rated current stable power supply, realizing dual transmission of high-speed signal and power, perfectly matching the connection needs of modern compact intelligent equipment.
Achieves IP68 protection grade in mated state with silicone gasket sealing and transparent epoxy resin potting, and withstands a maximum environmental pressure of 60bar (870psi), suitable for deep water marine boat equipment and high-pressure working conditions.
Features professional shielding structure with 75dB shielding at 10MHz and 40dB at 1GHz, effectively resisting electromagnetic interference and signal leakage, which meets the high anti-interference requirements of security and defense equipment signal transmission.
Adopts innovative small size flat push-pull structural design, breaking the space limitation of traditional circular connectors, greatly saving installation space and being ideal for compact security and defense, marine and industrial miniaturized equipment.
Works stably in the temperature range of -55°C~125°C and ≤95% humidity at 60°C, resists 15g vibration (10Hz~2000Hz) and 100g shock (6ms), and passes 96hr salt spray corrosion test, adapting to outdoor, marine and industrial harsh environments.
Anodized black aluminum alloy housing and phosphor bronze patch gold sinking contacts ensure excellent corrosion resistance and conductivity; 5000 times mechanical life is far higher than the industry average, reducing equipment maintenance cost and frequency.
Parameters | Specifications |
Operating Temperature | -40°C~125°C |
Humidity(max) | <=95%[at 60°C/140°F] |
Salt Spray Corrosion | 96hr |
P op(max) | 60 bar(870psi) |
Mating Cycles | 500+ times |
Contact Material | Phosphor Bronze, Gold Immersion |
Housing Material | Aluminum Alloy, Sandblasted & Anodized |
Insulator Material | FR-4 |
Other Shell Material | Aluminum Alloy, Sandblasted & Anodized |
Pin Configuration | USB 3.1TYPE-C |
Shock Resistance | 100g[6ms] |
Rated Current | 3A |
Rated Voltage | 100V AC |
Insulator Resistance | >=100mΩ[at 500V DC] |
IP Rate | IP68(FullyLocked) |
Applied to portable surveillance cameras, anti-drone systems, security communication terminals and on-site law enforcement equipment, the small flat design saves space, EMC shielding resists electromagnetic interference, and IP68 waterproof adapts to outdoor complex and harsh working environments.
Served as professional boat connectors for marine navigation equipment, underwater detection instruments, shipborne communication and marine environmental monitoring equipment, it withstands high pressure and salt spray corrosion, ensuring stable connection in seawater and humid marine environments.
Used in industrial miniaturized PLC, portable precision detection instruments, automated robot end effectors and industrial control sensors, USB3.1 Type-C realizes high-speed data transmission, and the push-pull structure is convenient for frequent plugging and unplugging in industrial sites.
Applicable to outdoor smart city terminals, UAV ground stations, mobile communication equipment and outdoor emergency rescue devices, its extreme temperature adaptability and shock resistance ensure the normal operation of equipment in outdoor extreme weather and transportation vibration.
Used in aerospace ground testing portable equipment, aviation emergency communication terminals and aerospace detection miniaturized equipment, its high-pressure resistance and anti-interference performance meet the high reliability requirements of aerospace equipment, and the small size is easy to carry and assemble.
Applied to underwater sonar, underwater robots, subsea observation equipment and marine aquaculture monitoring equipment, it withstands 60bar deep water pressure and has IP68 waterproof performance, ensuring long-term stable data and power transmission underwater.
A: It is equipped with a USB3.1 Type-C female seat, supporting high-speed data transmission and stable DC power supply with a rated current of 3A, realizing integrated transmission of high-speed signal and power for compact equipment.
A: It adopts silicone gasket sealing, transparent epoxy resin potting and precise push-pull mating structure to reach IP68 in mated state, and can withstand a maximum environmental pressure of 60bar (870psi) for deep water and high-pressure working conditions.
A: It has excellent 360° EMC shielding performance to resist electromagnetic interference and signal leakage, small size flat design saves installation space, and IP68 waterproof and harsh environment adaptability ensure stable operation in outdoor security and defense on-site environments.
A: It works in -55°C~125°C, resists vibration, shock and high humidity, and passes 96hr salt spray corrosion test. It can be stably used in marine salt spray and humid environments, and is an ideal boat connector.
A: It has a mechanical life of 5000 times, far higher than the industry average. The push-pull structure realizes quick plugging and unplugging, precise positioning and anti-accidental disconnection, which is convenient for on-site operation and improves the reliability of equipment connection.
