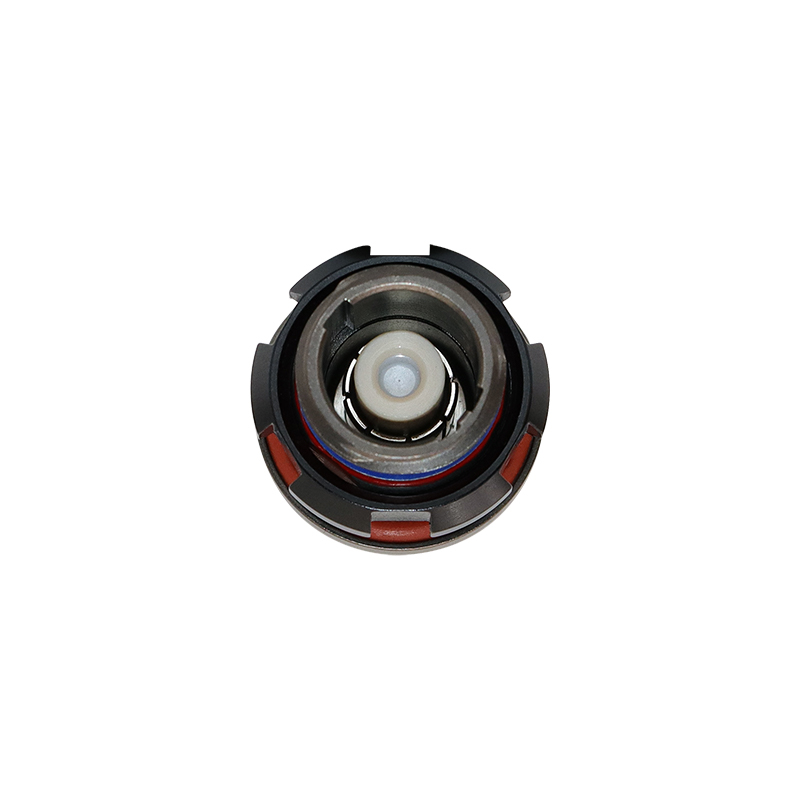

ZGA.1M.7100.XL is a high-performance mini push-pull single-mode fiber fixed socket, specially engineered for security & defense, UAV pod, binocular/monocular optical equipment scenarios with core vibration resistant performance. Adopting SC single-mode fiber configuration with ultra-low optical loss, it features 300g super shock resistance, IP67 waterproof protection and 75dB professional shielding. With gun color plated aluminum alloy housing and PPS insulation, all materials comply with RoHS requirements. Its compact mini push-pull design perfectly matches the miniaturization needs of precision optical equipment, ensuring stable high-fidelity optical signal transmission in harsh outdoor and mobile working conditions.
Configured with SC single-mode fiber core, it achieves insertion loss <0.3dB and return loss >50dB, realizing high-fidelity and low-loss optical signal transmission, which is essential for UAV pod aerial photography, binocular/monocular optical detection and security & defense communication equipment with high signal precision requirements.
Optimized structural and precision push-pull locking design resists 15g high-frequency vibration (10Hz~2000Hz) and 300g ultra-high shock (3ms), far exceeding industry average shock resistance, effectively avoiding accidental disconnection and signal interruption caused by UAV flight vibration and mobile security & defense equipment mechanical impact.
Reaches IP67 waterproof and dustproof grade in mated state, with white silica gel potting sealing treatment, and withstands 60bar maximum environmental pressure and 96hr salt spray corrosion. It works stably in -40℃~70℃ temperature range and ≤95% high humidity, adapting to outdoor rain, dust, salt fog and other harsh security & defense working environments.
Adopts integrated shielding structure with 75dB shielding at 10MHz and 40dB at 1GHz, effectively resisting complex electromagnetic interference in security & defense and outdoor environments, preventing optical signal modulation interference and ensuring the confidentiality and stability of security & defense equipment optical communication signals.
Classic mini push-pull structural design with compact overall size, greatly saving equipment installation space, perfectly matching the miniaturization and light-weight design requirements of UAV pod, binocular/monocular portable optical equipment and security & defense mini optoelectronic devices. Precise mark point and key positioning realize quick plugging and unlocking, easy for on-site assembly and maintenance.
Contact parts are made of tin bronze gold-plated with excellent conductivity and wear resistance; housing is gun color plated aluminum alloy with light weight and high structural strength; insulation material is high-temperature resistant PPS. All metal parts are treated with anti-corrosion plating, passing 96hr salt spray test, ensuring long-term stable use in outdoor harsh environments.
Equipped with multi-specification positioning keys (A/P/U/S/T) with different angles and color rings for identification, realizing precise anti-wrong insertion matching, avoiding fiber core damage caused by wrong plugging and ensuring the safety and reliability of equipment connection.
Parameters | Specifications |
Operating Temperature | -40°C~70°C |
Humidity(max) | <=95%[at 60°C/140°F] |
Salt Spray Corrosion | 96hr |
Vibration | 15g[10Hz~2000Hz] |
Mating Cycles | 2000+ times |
Contact Material | Gold Plated Tin Bronze |
Housing Material | Pearl Chrome Plated Copper |
Insulator Material | PPS |
Shielding | 75dB(10MHz) 40dB(1GHz) |
Shock | 300g[3ms] |
Shock Resistance | 100g[6ms] |
Return Loss | >50dB |
Insertion Loss | <0.3dB |
IP Rate | IP67(Mated) |
Insert Configuration | SC(Single Mode) |
Designed as a critical interconnect component for border surveillance systems, anti-drone solutions, field law enforcement devices and portable security gear, it performs reliably in rugged outdoor and coastal border scenarios, delivering stable power and signal transmission.
Ideal for electrical and signal connections in UAV flight controllers, payload pods and airborne communication systems. Its compact form factor optimizes space usage, while its rugged shock- and vibration-resistance withstands in-flight stresses. IP68 sealing ensures stable performance under harsh outdoor aerial environments.
Suitable for outdoor industrial automation systems, portable precision instruments, geological exploration devices and environmental monitoring terminals. High-current capability satisfies equipment power demands, and exceptional salt-spray resistance ensures durability in harsh industrial outdoor environments.
Built for marine detection instruments, coastal monitoring systems and aquaculture control units. Its 1000-hour salt-spray resistance and IP68 waterproof rating provide strong protection against seawater corrosion and high humidity, supporting long-term stable operation.
Used for internal and external connections in special operation vehicles and military vehicle communication and control systems. The high-strength all-metal structure resists vibration and impact, while its wide operating temperature range adapts to various climate conditions during cross-region missions.
Applied in outdoor communication base stations, emergency rescue power systems and outdoor mobile charging stations. 10A high-current transmission supports high-power equipment, and IP68 protection guarantees stable connections in rainy, snowy or dusty outdoor environments.
A: It adopts an SC single-mode fiber core with insertion loss <0.3dB and return loss >50dB, achieving ultra-low loss and high-fidelity optical signal transmission. This ensures clear image signals for UAV pod aerial photography and meets the high-precision transmission requirements of aerial photography equipment.
A: It operates stably in a temperature range of -40℃ to 70℃, withstands humidity ≤95% and 96-hour salt spray corrosion, and features IP67 waterproof and dustproof performance. It can be used reliably in coastal border defense salt fog, outdoor rain, dust and other harsh environments.
A: Avoid rough insertion and removal to prevent damage to the precision fiber core; keep the fiber contact surface clean and free from dust, oil and other contaminants; ensure accurate alignment between the plug and socket during connection to avoid optical path deviation that affects transmission performance.
