TLZ2.0Q.0210.GKHL

Product Introduction

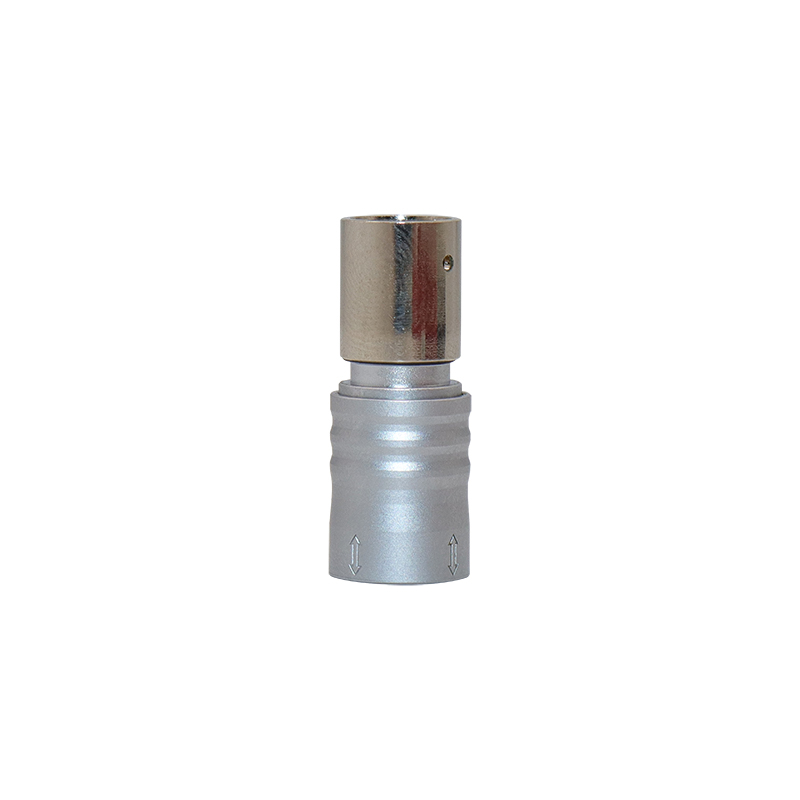

TLZ2.0Q.0210.GKHL is a circular push-pull self-locking connector plug with 10 power contacts and 2 signal contacts. It features a unique integration of power and signal transmission, replacing multiple large connectors with fewer and smaller units, and combining multiple protocols into a single connector. With IP68 waterproof protection and hermetic sealing performance up to 10⁻⁶ mbar·l/s, it offers excellent salt-spray resistance and shock resistance, making it an ideal solution for C4ISR systems.

Product Advantage

Ultra-mini Design & High-density Pin Configuration

This push-pull connector comes with 0.3mm ultra-fine contacts and a 16-pin low-voltage arrangement. Its compact structure greatly reduces space occupation, making it highly suitable for miniaturized designs used in UAV pods, binocular, monocular and other precision optical instruments.

Outstanding Sealing & Ultra-high Hermeticity

Along with IP68 waterproof and dustproof protection, the product offers superior hermetic sealing performance. It effectively blocks gas leakage and maintains stable function in sealed, high-pressure or other special environments requiring high airtightness.

Excellent Vibration Resistance & Mechanical Stability

The refined structure provides strong anti-vibration capacity to cope with high-frequency vibration in UAV flight and mobile security equipment. It supports up to 5000 mating cycles with stable push-pull locking, preventing accidental loosening or disconnection during operation.

IP68 Full-sealed Protection & Extreme Pressure Resistance

Featuring IP68 ingress protection and resistance to pressure as high as 60bar (870psi), this connector works steadily in rainy, humid and even short-time submerged outdoor environments.

High-performance Shielding & Anti-interference

With a professional shielding design, it achieves 75dB shielding effectiveness at 10MHz and 40dB at 1GHz. It efficiently resists electromagnetic interference and ensures reliable transmission of weak signals for optical and pod equipment.

High-grade Material & Corrosion Resistance

Constructed with gold-plated brass contacts, gun-color nickel-plated brass shell and nuts, as well as heat-resistant PPS insulation, it passes 96-hour salt spray test. It adapts well to salt fog and harsh industrial surroundings.

Wide Environmental Adaptability & Stable Electrical Performance

It operates normally in a temperature range of -40°C to 125°C and humidity up to 95%. With contact resistance ≤12.5mΩ, insulation resistance 5000MΩ, 750V withstand voltage and 1A rated current, it ensures long-term stable power and signal transmission.

Technical Parameters

Product Uses

UAV Pod Equipment

This connector is specially developed for UAV pod systems, enabling the combined transmission of high-frequency video coaxial signals and low-voltage control or power supplies for aerial filming, monitoring and reconnaissance pods. It features exceptional anti-vibration and anti-shock properties to cope with intense vibration during drone flights, while the IP68 waterproof rating ensures consistent performance under tough outdoor weather conditions.

Binocular Optical Equipment

It is well suited for both military and civilian binocular applications such as infrared night vision, laser ranging and thermal imaging binoculars. The compact 1U form factor effectively cuts down on mounting space. With high-level shielding performance against electromagnetic interference, its mixed-signal transmission design fully satisfies the multi-signal demands of modern binocular optical systems.

Monocular Optical Equipment

This connector serves portable monocular night vision instruments, field detection gear and high-precision optical monocular devices. It works with flexible cables and uses a fast push-pull connection mechanism for easy field operation. Its wide operating temperature range ensures stable functionality even in extreme outdoor environments.

Security & Defense Equipment

It can be applied in a wide range of security and defense scenarios, including portable monitoring systems, anti-UAV solutions, border inspection equipment and field law enforcement terminals. Its advanced shielding and anti-interference features maintain signal integrity and precision. The IP68 protection rating makes it perfect for prolonged outdoor use.

Outdoor Precision Detection Equipment

This connector is a great choice for portable outdoor environmental monitoring, industrial precision testing and geological survey instruments. It offers strong resistance to extreme temperatures and high pressure, making it suitable for demanding outdoor working environments. Hybrid signal transmission supports the unified connection of high-frequency and low-voltage signals in detection equipment.

Aerospace Auxiliary Equipment

FAQ

Q: Can it transmit high-speed data? What types of high-speed data can it support?

A: Please find in the attached table.
