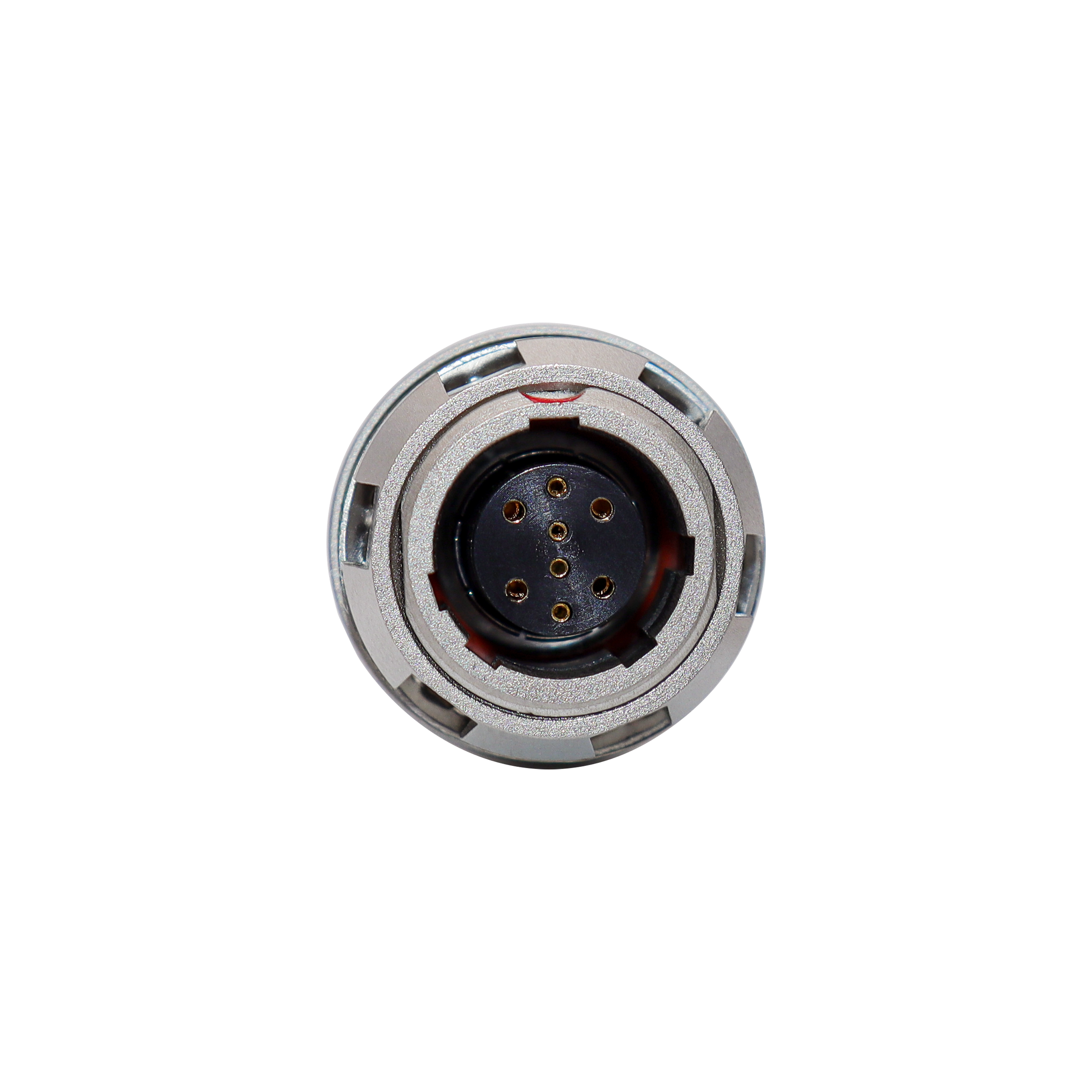

FX1031Z02C056B1N-B1

Product Introduction

FX is a classic and widely used push-pull self-locking connector, mainly applied in high-speed signal transmission. It is widely adopted in both military and civilian fields for DC, AC, high-speed, RF and optical connections in radio equipment, medical devices, testing instruments, data acquisition and industrial control systems. It is especially suitable for high-density and compact installations, as well as applications where rotational mating and unmating are difficult.

Product Advantage

Secure & Stable Panel Mounting

FX series connectors feature a firm mounting structure that ensures stable installation even under long-term vibration and shock. The secure fixing design effectively prevents loosening during operation, providing reliable mechanical stability for various military, medical, and industrial equipment.

IP68 Sealing & High Water Pressure Resistance

With an IP68 waterproof and dustproof rating, the connectors maintain complete sealing when fully mated. They offer outstanding resistance to water pressure, ensuring no water penetration or performance degradation in humid, submerged, or outdoor harsh environments.

Ultra-low Leak Rate & High Hermeticity

The FX series achieves an extremely low leakage rate below 1×10⁻⁹ mbar·l/s, delivering excellent airtight performance. This high-level hermetic sealing makes it ideal for vacuum, pressure, and precision applications that require strict leakproof protection.

Reversible Pin & Socket Design

It supports reversible pin and socket arrangement: male connectors can be equipped with female inserts, and female connectors with male inserts. This flexible design greatly improves adaptability, simplifies wiring, and meets diverse customer assembly and space requirements.

Technical Parameters

Product Uses

Military & Aerospace

Widely used in military radio, communication systems, radar, avionics, airborne equipment, and vehicle-mounted devices. Suitable for harsh battlefield and airborne environments requiring high reliability, anti-vibration, and stable signal transmission.

Medical Equipment

Applied in medical monitors, diagnostic instruments, surgical devices, portable medical equipment, and precision testing machines. Features safe and stable connection, easy operation, and high sealing performance to meet strict medical standards.

Test & Measurement

Used in data acquisition systems, testing instruments, detection equipment, laboratory devices, and automatic test systems. Ensures accurate and stable transmission of test signals with high-density layout and good anti-interference ability.

Industrial Control & Automation

Applied in industrial control systems, servo drives, sensors, robotic equipment, and factory automation devices. Provides stable connection in harsh industrial environments with vibration, dust, and humidity.

Communications & RF Equipment

Suitable for radio stations, base stations, RF transmission equipment, high-speed data communication devices, and optical communication modules. Supports high-speed, RF, and optical fiber signals for reliable long-term communication.

Transportation & Portable Devices

Used in rail transit, vehicle electronics, shipboard equipment, and various portable electronic instruments. Ideal for compact spaces and high-density installation with quick plug-and-pull connection.

FAQ

Q: Q: What is the model naming convention for FX connectors?
