Product
| Quantity: | |
|---|---|

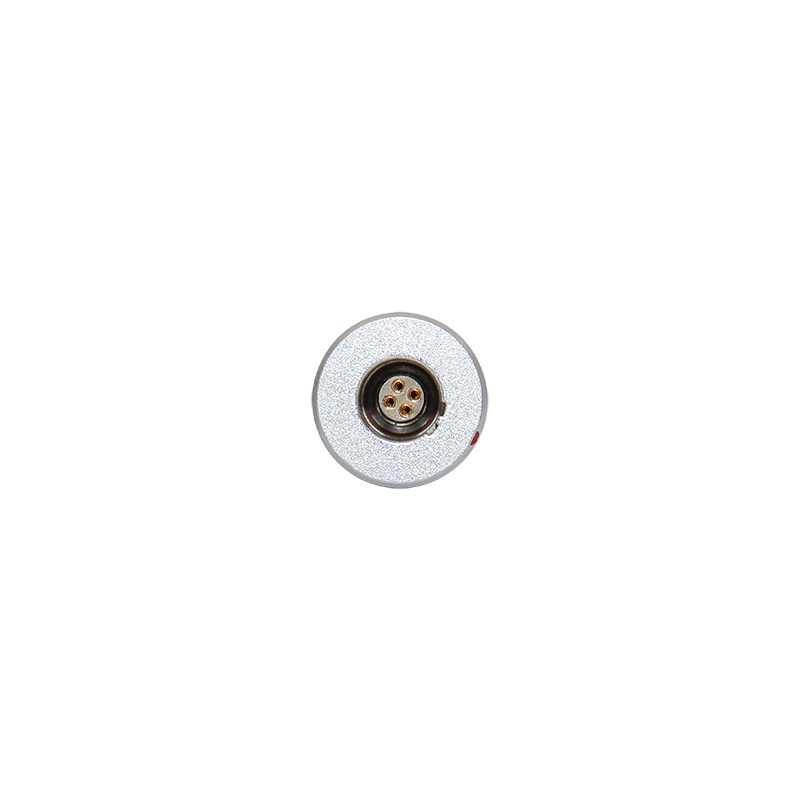

QM MGA.00T.304.CLN is a push-pull self-locking circular connector with a compact, lightweight, all-metal structure. It features a smaller outer diameter and higher contact density, making it ideal for equipment with limited installation space. The connector achieves IP67 protection when mated, and the chassis/socket itself reaches IP68. This makes it highly suitable for medical devices, outdoor instruments, and industrial equipment that require high waterproofing and anti-interference performance.
Our connector is fully interchangeable with the standard B series, featuring the identical panel cutout, mechanical structure, pin layout, and locking system. It can directly replace existing B-series connectors without modifying molds, cables, or equipment design. This high compatibility ensures a smooth and cost-effective upgrade for users, greatly reducing development and assembly time while maintaining full mechanical and electrical interoperability.
With an optimized high-density contact arrangement, this connector delivers more pins in a smaller body compared to conventional models. Its compact outline effectively saves valuable panel and internal space, making it ideal for miniaturized, portable, and multi-channel devices. The balanced size improves equipment integration without sacrificing performance, supporting modern design trends for smaller and smarter instruments.
Built with a full metal shell, the connector provides complete 360° electromagnetic shielding for excellent anti-interference performance. It effectively isolates external electromagnetic noise and stabilizes transmission for weak and precision signals. This shielding ensures clean, reliable data transmission even in harsh industrial or medical environments, protecting equipment from interference and ensuring stable operation.
The connector achieves an IP68 waterproof rating both in unmated and mated conditions, offering outstanding protection against water, dust, and moisture. It performs reliably in humid, outdoor, offshore, or washable environments, preventing short circuits and signal failure. The stable sealing structure ensures long-term durability under harsh conditions, meeting the strict requirements of medical, industrial, and outdoor applications.
This connector supports an extreme operating temperature range up to 200°C, with stable electrical and mechanical performance under high temperatures. It uses heat-resistant insulation and contact materials to maintain low contact resistance and high insulation. Suitable for automotive, industrial, aerospace, and high-temperature test environments, it ensures stable connection even under severe thermal conditions.
| Parameters | Specifications |
| Operating Temperature | -55°C~200°C |
| Humidity(max) | <=95%[at 60°C/140°F] |
| Salt Spray Corrosion | 96hr |
| Vibration | 15g[10Hz~2000Hz] |
| Mating Cycles | 5000+ times |
| Contact Material | Gold Plated Tin Bronze |
| Housing Material | Pearl Chrome Plated Copper |
| Insulator Material | PPS |
| Other Shell Material | Nickel-plated Brass |
| Contact Diameter | 0.5mm |
| Shock Resistance | 100g[6ms] |
| Rated Current | 2A |
| Rated Voltage | 650V AC |
| Insulator Resistance | 5000 mΩ[at 5000V AC] |
| Contact Resistance | <=15 mΩ |
| IP Rate | IP68 |
Designed for harsh marine environments, the T series connector performs reliably in shipboard communication systems, underwater detection instruments, marine monitoring sensors, and offshore platform equipment. It provides IP68 waterproof and corrosion-resistant protection, ensuring stable connection in high humidity and salt-spray conditions. Full-metal shielding and wide temperature resistance enhance its durability in marine applications.
Suitable for high-temperature industrial environments, the T series connector is used in thermal detection systems, high-temperature sensors, furnace monitoring equipment, and industrial heating devices. It can withstand temperatures up to 200°C while maintaining stable electrical performance. Its robust structure and excellent sealing ensure reliable connection in high-temperature and high-vibration industrial scenes.
The T series connector is ideal for portable military equipment, field communication devices, reconnaissance instruments, and individual soldier systems. It features compact size, lightweight design, and high durability for outdoor carrying. IP68 protection and strong anti-vibration capability enable stable operation in complex field environments. Full shielding ensures secure signal transmission.
Widely used in precision robots, automated robotic arms, and intelligent assembly systems, the T series connector supports multi-channel signal and power transmission. Its high-density design saves installation space in robotic joints. Excellent anti-interference and anti-vibration performance ensure stable and accurate control signals for high-precision motion systems.
The T series connector provides reliable connection for deep-water detection equipment, underwater robots, subsea sensors, and marine exploration devices. With an IP68 waterproof rating, it operates stably under high water pressure. The full-metal structure offers excellent pressure resistance and anti-corrosion performance, making it suitable for long-term use in deep-sea environments.
The T series connector is commonly applied in medical aesthetic devices, laser treatment machines, skin detection systems, and beauty instruments. It ensures stable transmission of control and energy signals with full shielding. IP68 waterproofing allows safe cleaning and disinfection. The compact and reliable design meets the high-quality requirements of aesthetic medical equipment.
Applied in industrial drones, unmanned vehicles, and autonomous detection systems, the T series connector provides stable connection for flight control, image transmission, sensors, and power supply. Its lightweight and compact structure reduces payload while ensuring high shock and vibration resistance. IP68 protection and wide temperature range enhance the reliability of unmanned systems.
A:Our trade term is EXW, and the customer is responsible for all logistics arrangements.
Generally, customers use DHL, FedEx or their appointed freight forwarder for shipment.
We will fully cooperate with you by providing all necessary documents for transportation and customs clearance. If you wish to place an order but none of the above shipping methods is applicable, please contact us to discuss a suitable solution.
A:Our payment term is 100% T/T. We will provide our official and unique bank account after you confirm the quotation or upon issuing the PI. You may arrange the payment via bank transfer. If you have any questions regarding the payment method, please feel free to contact us.
A:Yes, B and T can be mated. If you feel unsure about the compatibility, please feel free to contact us and our engineer will solve your problems quickly.
