Product Description

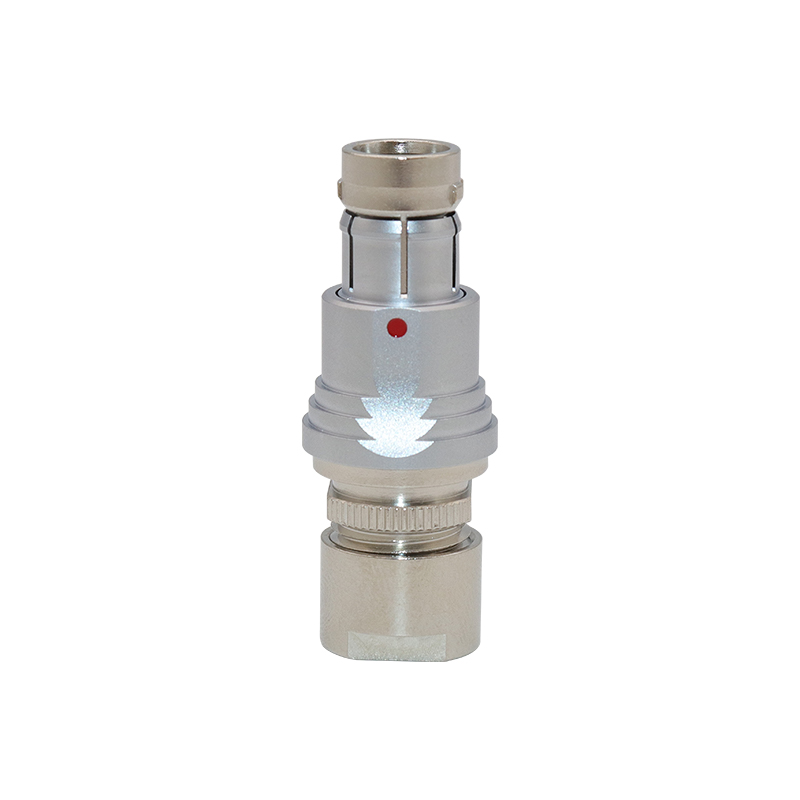

TGA.1U.303.CLAD52 is a compact high-density signal interconnect developed for miniature sensing modules, precision testing equipment and portable electronic systems. Designed with three dedicated signal contacts only, it ensures stable transmission accuracy while maintaining extremely low contact resistance. Featuring a precise push‑pull locking mechanism, nickel‑alloy plated housing and fully sealed internal encapsulation, it delivers reliable routing for control and signal circuits. With over 5,000 mating cycles, superior electromagnetic shielding and full RoHS compliance, it performs consistently in outdoor portable devices, airborne assemblies and demanding industrial surroundings.
Product Advantage
Pure Signal Transmission with Ultra‑Low ResistanceEquipped with three independent signal paths, the connector achieves steady signal flow and minimal electrical loss, fully meeting precision detection requirements for compact and miniature instruments.
Standardized Interface & Easy System Integration
Engineered according to mainstream industry dimensional norms, it offers excellent compatibility and interchangeability with common connectors. It lowers assembly costs, simplifies installation steps and accelerates equipment upgrading and system deployment cycles.Comprehensive EMC Shielding & Strong Anti‑Interference PerformanceAdopting a full surrounding shielding framework, it effectively suppresses external electromagnetic coupling and prevents waveform distortion. It maintains clean signal output even under complex field interference, making it ideal for sensitive portable electronic hardware.IP68 Hermetic Protection & Robust Environmental AdaptabilityBuilt with precision tail sealing and epoxy filling, it reaches IP68 dustproof and waterproof rating. Resistant to prolonged salt mist exposure, high humidity and wide temperature variation, it withstands vibration and impact for stable operation in outdoor, mobile and harsh field scenarios.Premium Material Configuration & Stable Electrical PerformanceGold-plated beryllium copper contacts ensure reliable conduction and low resistance values. Corrosion-resistant plated housing extends service life, while high-temperature resistant insulation guarantees independent and stable signal transmission over long operating periods.Precision Latching Structure & Extended Mechanical Lifespan
Its mini self-locking push‑pull design enables fast insertion, accurate positioning and anti-drop protection. Optimized mechanical structure supports more than 5,000 insertion cycles, perfectly fitting frequently plugged portable and mobile application environments.
Technical Parameters
| Parameters | Specifications |
|---|
| Operating Temperature | -55°C~200°C |
| Max Humidity | ≤95% (at 60°C) |
| Salt Spray Resistance | 96 hours |
| Vibration Resistance | 15 g (10 Hz~2000 Hz) |
| Mating Cycles | 5000+ times |
| Contact Material | Gold Plated Beryllium Copper |
| Housing Material | Nickel-alloy Plated Metal |
| Insulator Material | PPS+PTFE |
| Auxiliary Shell | Nickel-plated Brass |
| Contact Layout | Precisely customized arrangement |
| Shock Resistance | 100 g (6 ms) |
| Rated Current | Low-power rated load |
| Rated Voltage | High industrial withstand voltage |
| Insulation Resistance | ≥5000 MΩ (5000 V AC) |
| Protection Grade | IP68 |
| Contact Resistance | Ultra-low ≤15 mΩ |
Product Uses
UAV Pod Compact Signal ModulesApplied inside lightweight drone pods for reliable control and signal transmission. Enhanced vibration tolerance adapts to airborne shock, while IP68 sealing supports all‑weather outdoor flight conditions.Handheld Precision Portable InstrumentsSuitable for portable detection, ranging and mini testing devices. Ultra-compact 1U size saves mounting space and satisfies multi‑signal demands of lightweight handheld equipment.Miniature Tactical Electronic AssembliesUsed in compact tactical units and precision miniature electronic modules. Fast push‑pull connection facilitates field operation, while wide temperature stability ensures performance under extreme outdoor environments.Security & Defense Detection DevicesDeployed in portable monitoring, border inspection terminals and tactical equipment. High shielding capability avoids interference and leakage, securing stable and confidential signal delivery for defense applications.Outdoor Field Precision Detection EquipmentIdeal for environmental monitoring, portable industrial inspection and geological survey instruments. Resists extreme temperatures, moisture and corrosion, supporting stable signal transmission in harsh outdoor working areas.Aerospace Auxiliary Portable Components
Adopted in aerospace portable testers and airborne auxiliary assemblies. High mechanical stability and thermal endurance meet strict aerospace reliability standards; mini size allows easy fitting within narrow installation spaces.
FAQ
Q: What is the core structure of TGA.1U.303.CLAD52 and what signals does it transmit?
A: It features a streamlined 1U miniature layout with three precision signal pins, supporting steady transmission of accurate control and signal circuits to match miniaturization trends in testing, security and portable hardware.
Q: How does it resist vibration and impact for airborne and mobile applications?A: Reinforced locking and internal fixing structure withstands 15 g vibration and 100 g instantaneous shock, preventing accidental disconnection during movement or flight and ensuring continuous signal stability.
Q: What shielding strengths does it have and why suits defense systems?A: Full peripheral shielding greatly reduces electromagnetic disturbance and waveform distortion, protecting sensitive internal circuits and ensuring accurate, confidential operation in tactical and security systems.
Q: Which cables are compatible and how to select matching accessories?A: It works with standard small-diameter signal wires; select corresponding cable glands based on outer diameter for tight fastening and reliable strain relief performance.
Q: What environmental capabilities does it offer and which harsh conditions can it handle?A: It operates reliably from -55°C to 200°C, tolerates high humidity and 96‑hour salt mist, and features IP68 waterproof protection, fitting outdoor, field, airborne, humid and corrosive industrial operating environments.
