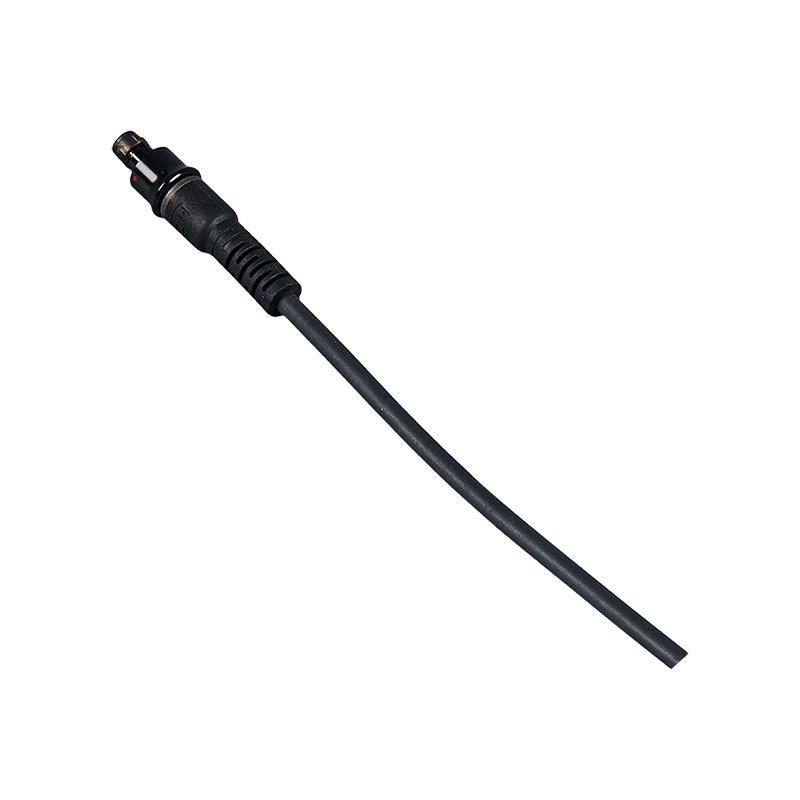

QM.Y22.928.109 is a cable assembly featuring a plug connector on one end. Our professional technicians at QM have meticulously soldered the plug to the cable, ensuring firm connection, stable signal transmission and long-term durability.
1.Precision Push-pull Self-locking Structure, fast and reliable connection. Adopt built-in locking mechanism, push to lock, pull to release, no tools needed. Stable under vibration and shock, with clear “click” confirmation to ensure secure mating and avoid accidental disconnection.
2.Circular Compact Design, compatible with multi-core & coaxial transmission. Suitable for medical, semiconductor, industrial and test equipment. Small size, light weight, easy routing in narrow spaces, supporting high-density signal transmission.
3.Wide Compatibility & Customizable Solutions, supporting medical cables, semi-conductor cables, coaxial cables and customised cables. Flexible pin definition, wire gauge, length and connector type available, perfectly matching your project requirements.
4.High-quality Materials & Durable Performance, with gold-plated contacts, low contact resistance, stable transmission. High IP protection rating, wide temperature range, long service life, suitable for harsh working environments.
5.Professional Cable Assemblings & Integrated Quality Control, from connector selection to wire crimping and testing. Full traceability, reliable test reports, online technical support and timely after-sales service, ensuring stable and worry-free use.
Parameters | Specifications |
Operating Temperature | -55°C~150°C |
Humidity(max) | <=95%[at 60°C/140°F] |
Salt Spray Corrosion | 96hr |
Vibration | 15g[10Hz~2000Hz] |
Mating Cycles | 5000+ times |
Contact Material | Gold Plated Tin Bronze |
Housing Material | PPSU |
Insulator Material | PPS+PTFE |
Hexagon Nut Material | Nickel-plated Brass |
Contact Diameter | 0.9mm |
Length of Welding Cups | 4mm |
Rated Current | 10A |
Rated Voltage | 875V AC |
Insulator Resistance | 5000 mΩ[at 5000V AC] |
Contact Resistance | <=12.5 mΩ |
IP Rate | TIP50 |
MGG.4B.340.CLL connector is widely used in high-end medical devices that require stable, anti-interference connections. It is commonly applied in patient monitors for ECG, blood pressure, and respiratory monitoring, ultrasound probes, endoscopy and minimally invasive surgical equipment, dental treatment systems, and rehabilitation devices. Its full-metal shielding ensures clear signal transmission, while the push-pull locking structure guarantees safe and reliable connection in clinical environments.
Ideal for precision testing and laboratory equipment, MGG.4B.340.CLL supports multi-channel signal transmission for data acquisition systems, oscilloscopes, signal analyzers, and automated test equipment. It provides stable connections for sensors measuring pressure, temperature, and vibration, and performs well in environmental test chambers and aging test equipment. High density and durability make it suitable for long-term reliable testing applications.
Designed for harsh industrial environments, MGG.4B.340.CLL is widely used in industrial robots, visual inspection systems, servo control systems, and automated production lines. It supports mixed transmission of power, IO signals, and communication data with high current capacity and strong anti-vibration performance. Its robust metal structure and stable connection ensure stable operation in dusty, vibrating, and high-load workshop conditions.
MGG.4B.340.CLL provides high-density, multi-signal integrated connection for professional broadcast cameras, live production systems, stage lighting, and audio equipment. It supports synchronous transmission of video, audio, control, and power signals, with quick push-pull mating for fast on-site setup. Stable shielding and reliable locking ensure uninterrupted signal transmission during outdoor shooting and stage performances.
With excellent environmental resistance, MGG.4B.340.CLL is suitable for aerospace equipment, rail transit systems, and special vehicles. It features high strength, shock resistance, and wide temperature adaptability, ensuring stable connection in airborne devices, cabin control systems, and vehicle-mounted equipment. Its compact and durable design meets the high-reliability requirements of transportation and special equipment.
MGG.4B.340.CLL is also applied in semiconductor equipment, scientific instruments, emergency communications, and marine detection devices. It supports stable signal and power transmission in vacuum, high-altitude, and salt-spread environments. High durability, long mechanical life, and excellent sealing performance make it a preferred solution for precision instruments and special industrial applications.
A We have passed ISO9001, ISO13485, CE, ROHS and if you have other demand on certifications, we will also make every effort to provide you with the relevant test reports.
A We have 2 factories and provide welding service if you need our connectors. Our workers are professional and have experience in welding extreme fine wires.
A For more accurate solution, please provide the information such as the wiring definition.
A Our term is EXW and we accept 100% T/T in advance.
