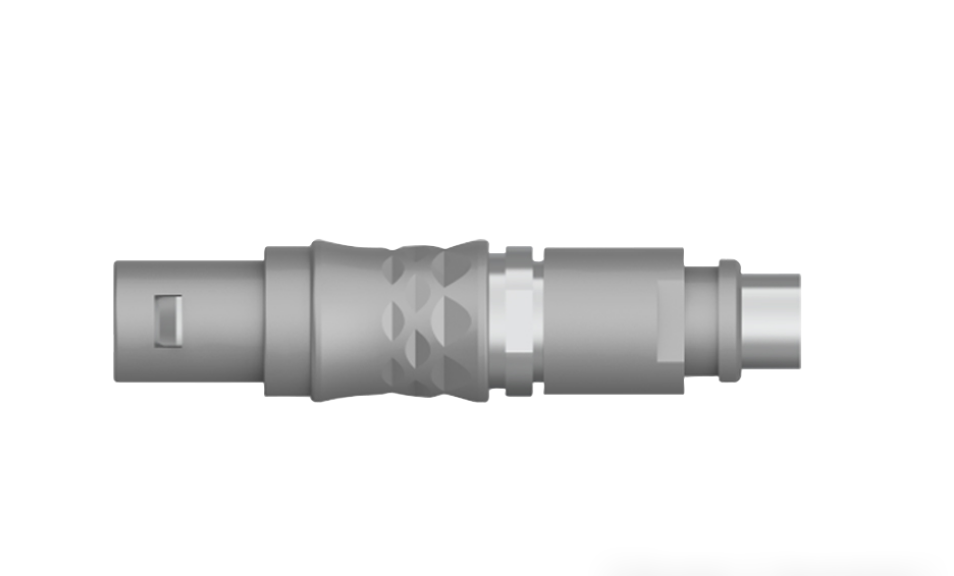

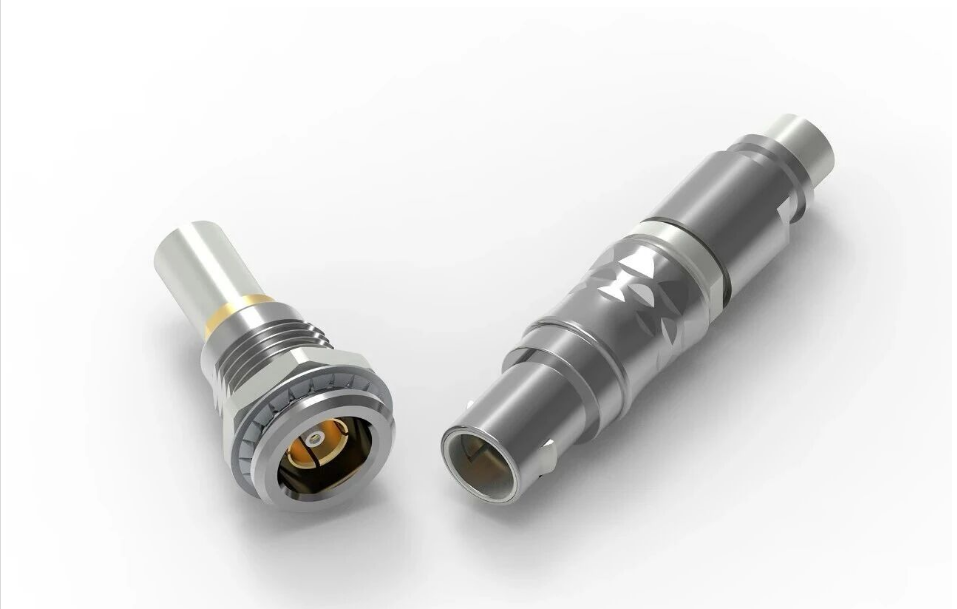

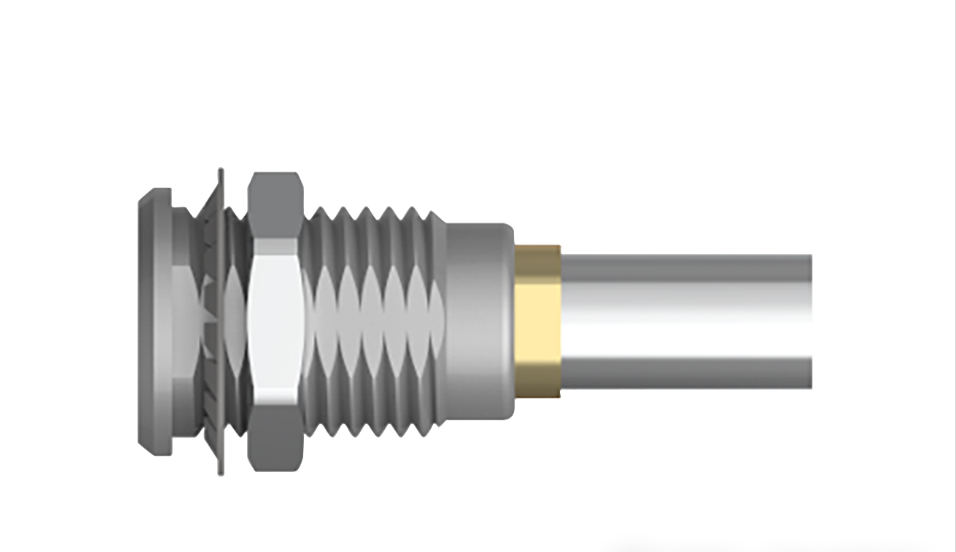

High Performance Circular Coaxial 75Ω Push Pull Self Locking Connector

      Quanma & Meiyilian have launched a new USB 3.1 (10Gb/s) high-frequency, high-speed connector, providing the market with a high-frequency, high-speed data transmission solution. Unlike ordinary consumer-grade USB interfaces, this product meets industrial-grade transmission protection standards and is compatible with multiple fields such as special industries, communications, industrial robots, testing and measurement, and aerospace, enabling stable transmission of high-frequency, high-speed data in harsh and complex environments.

    产品特点  ▼

Product Features

High-Speed ​​Transmission

Compatible with USB 3.1 (10Gb/s) protocol standards, meeting Ethernet transmission requirements. Capable of stable transmission of large data volumes, meeting the needs of high-definition video, high-speed equipment debugging, and other scenarios.

Comprehensive Shielding

360° metal enclosure provides complete EMC shielding. Ensures high-speed signal integrity while preventing data loss and transmission errors under strong interference environments.

Reliable Mechanical Structure

Utilizes a push-pull self-locking design, supporting quick plugging and unplugging. Excellent vibration and shock resistance, preventing accidental disconnection of the device under movement or vibration.

Strong Protection

Possesses excellent waterproof, oil-resistant, and bending durability properties. Can be used in harsh environments such as outdoors, in humid conditions, and dusty environments.

   技术参数  ▼

Technical Parameters

1. Protection Rating: IP68

2. Insertion/Removal Life: 10000+

3. Transmission Standard: USB 3.1 (10Gb/s)

4. Operating Temperature Range: -55℃ to 200℃

5. Salt Spray Resistance: 1000h

6. Vibration Resistance: 15g [10Hz to 2000z]

All materials comply with RoHS.
