New product recommendation -MINI multi-key thread lock round waterproof HDMI-D Connector

New product recommendation -MINI multi-key thread lock round waterproof HDMI-D Connector

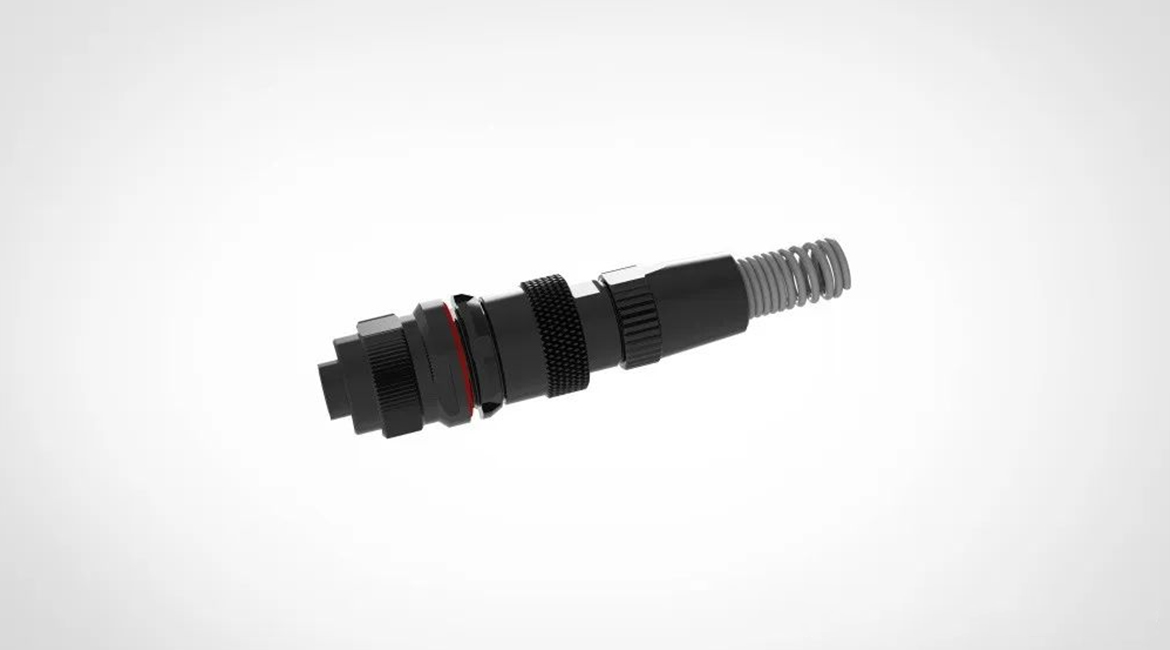

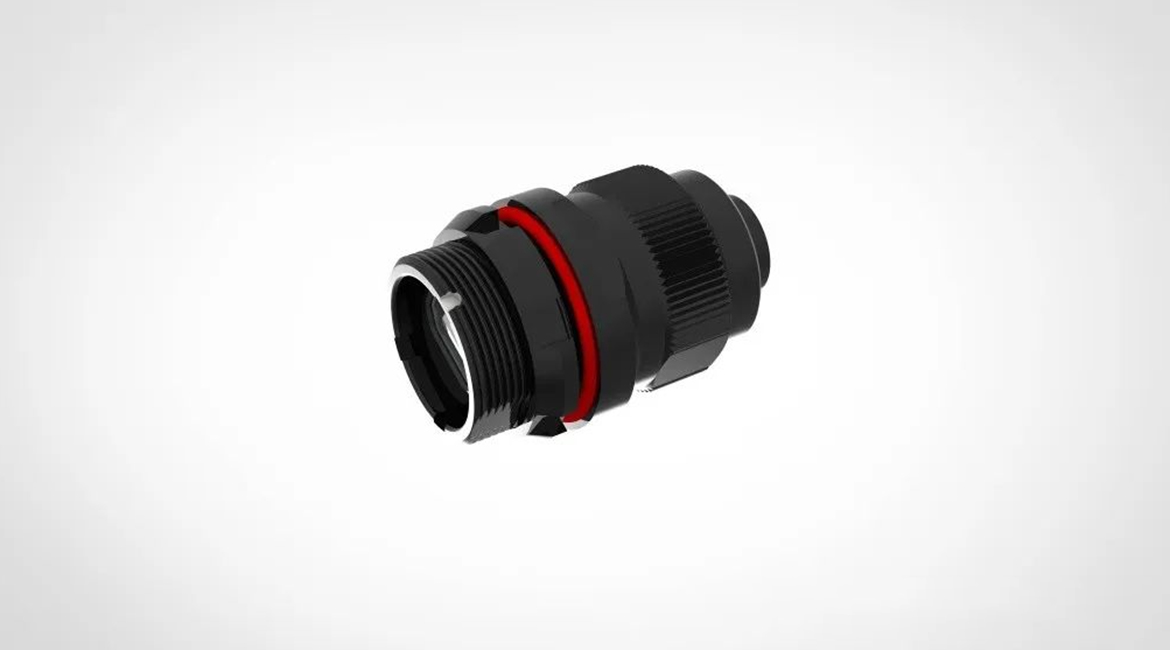

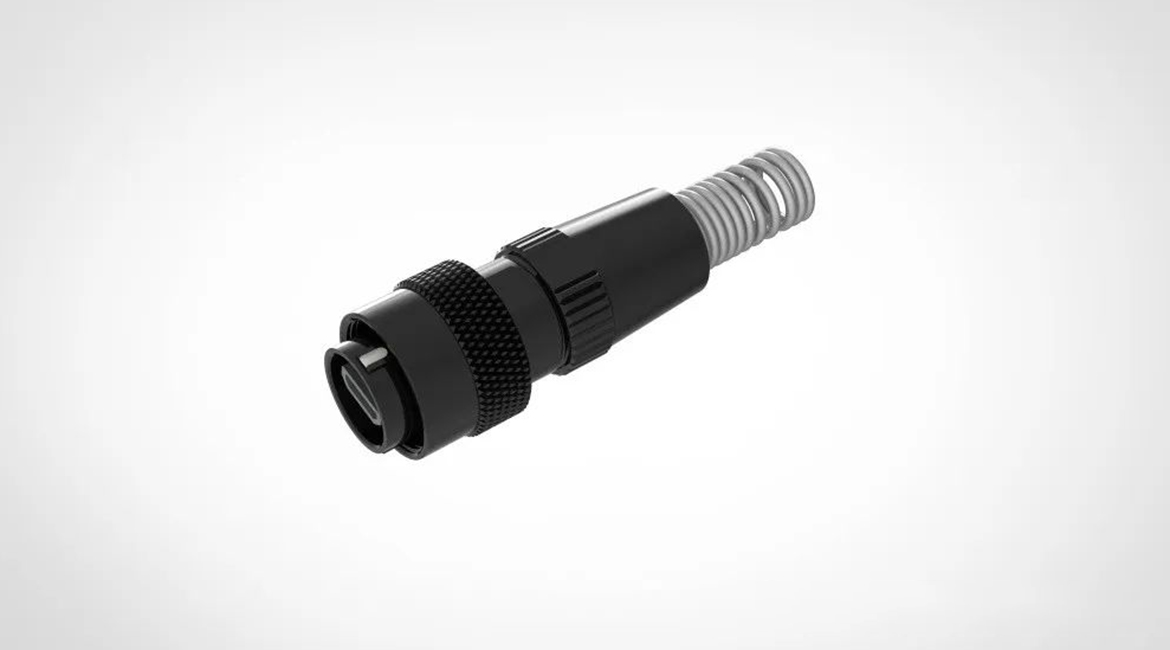

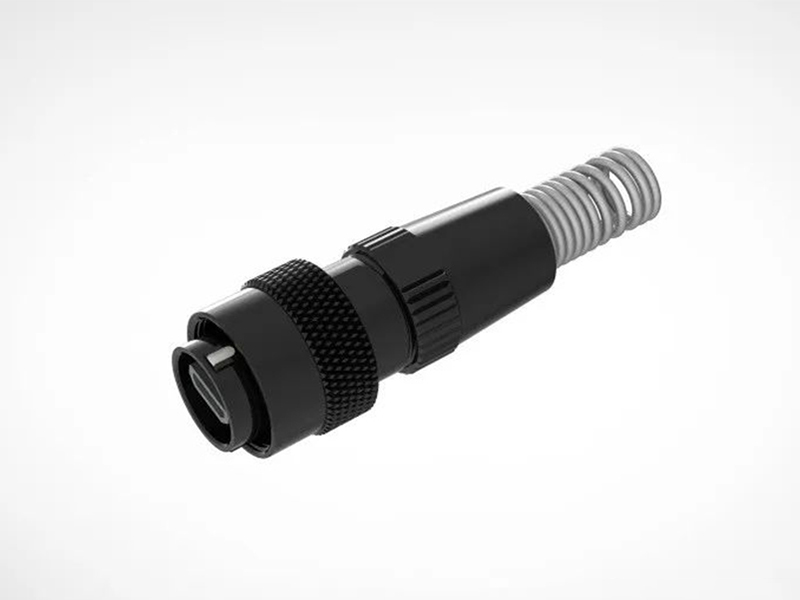

In order to meet the diversified needs of the market, the MINI multi-key thread lock round waterproof HDMI-D connector is the smallest network data interface integrated with standard circular connectors, especially suitable for special handheld/vehicle equipment, wearable devices, robots, underwater detection equipment, etc. Hd video and audio can be transmitted in wet, underwater, vibration-impacted environments without taking up too much space.

Relevant technical parameters (figure) :

Operating temperature: -55℃ ~ 125℃

Maximum humidity: <=95%[at 60 deg C/ 140 F]

Vibration: 15g[10Hz-2000Hz]

Salt spray: 96h Protection class :IP68 (plug-in state)

All materials are ROHS compliant

Product characteristics

1 Multi-key anti-stuttering thread locking structure

2 Anti-vibration, anti-impact

3 Waterproof rating IP68

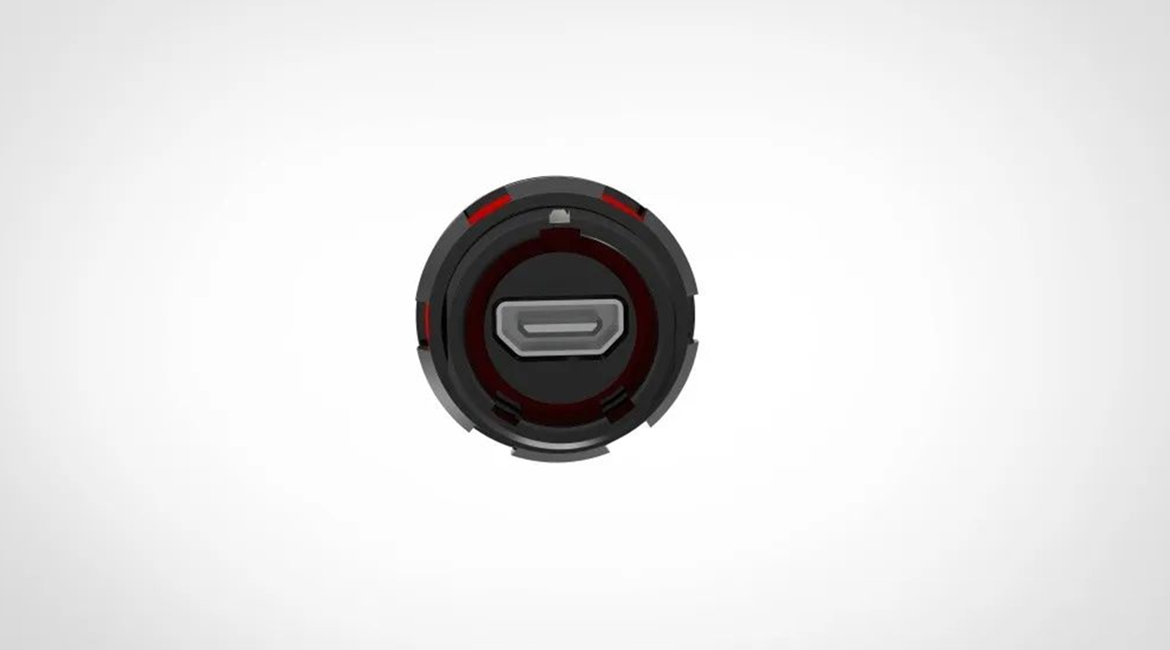

4 Integrated HDMI-D standard port

5 Support high resolution video and audio signal transmission including 1080p and higher resolution 4K video

6 Save installation space (ultra-small size)

7 360 degree EMC protection
