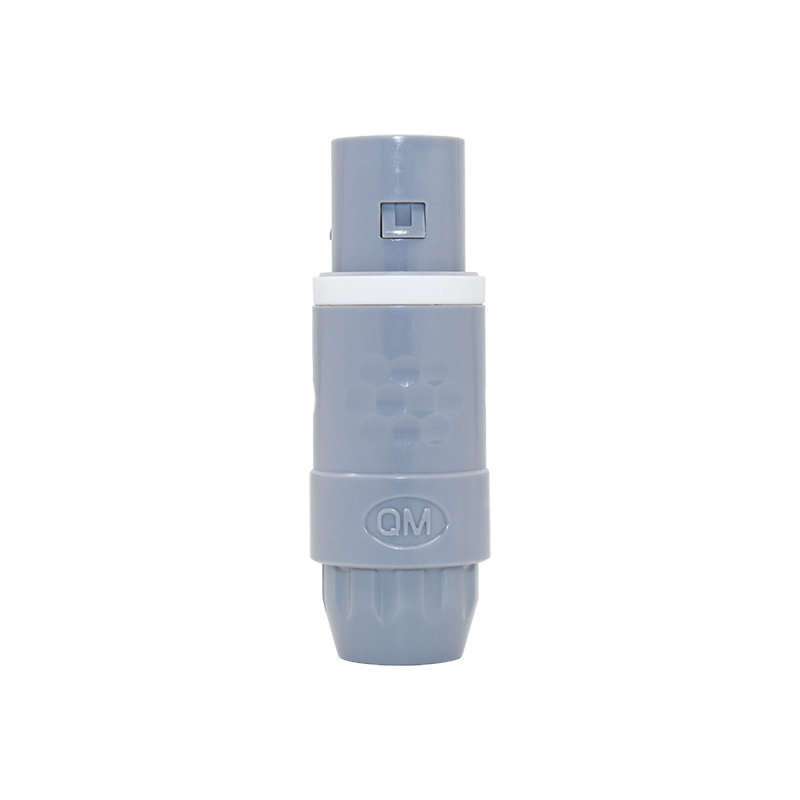

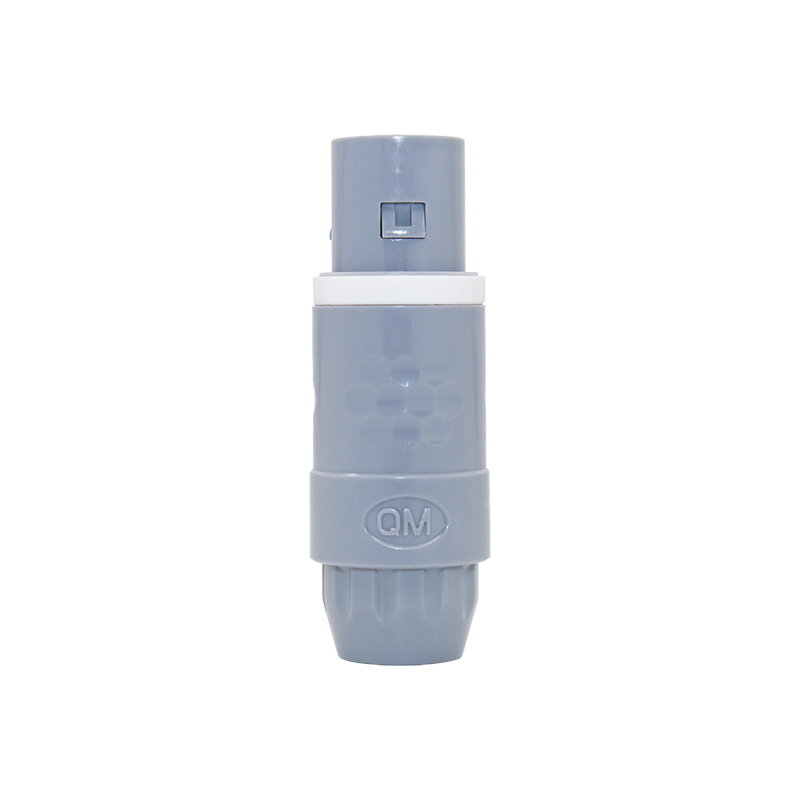

Product Introduction
QM PAG.3P.326.PLAC65W is a 26‑pin 3P‑size plastic push‑pull self‑locking straight plug. It adopts white PSU housing, PPS insulator, tin‑bronze gold‑plated contacts and precise key positioning to prevent misinsertion. The connector supports stable multi‑channel signal transmission, IP61 protection, wide temperature resistance and long‑term durability, widely used in medical electrophysiology, surgical instruments, diagnostic equipment and precision testing devices.
Product Advantage
Standard Interchangeability & Direct Replacement
QM PAG.3P.326.PLAC65W conforms to 3P standard outline, pin arrangement and interface structure, realizing plug‑and‑play interchange without redesigning equipment or cables. It provides a reliable high‑compatibility alternative with stable performance and shorter delivery period.
26‑Pin High‑Density Multi‑Signal Transmission
26‑pin compact layout integrates multiple weak electrical signals and control commands in one connector, greatly saving space for portable medical devices and surgical instruments. It meets high‑density wiring demands of electrophysiology catheters and multi‑channel monitoring equipment.
Medical‑Grade Contacts & Stable Signal Fidelity
Tin‑bronze gold‑plated contacts ensure low and stable contact resistance. High‑performance PPS insulator delivers outstanding insulation and anti‑crosstalk capacity, effectively avoiding signal interference and ensuring accurate transmission of electrophysiological and sensing signals.
High‑Performance PSU Housing & Medical Environment Adaptation
White PSU engineering plastic housing features light weight, high mechanical strength, chemical resistance and good biocompatibility. It adapts to medical clean rooms, disinfection scenarios and long‑term clinical use.
Push‑Pull Self‑Locking & Anti‑Misinsertion Safety
Push‑pull self‑locking mechanism enables fast mating and firm locking to prevent accidental disconnection. Special key positioning and mark design completely avoid wrong insertion, protecting equipment and improving system safety.
IP61 Protection & Wide Environment Adaptability
Mated connector reaches IP61 dustproof and anti‑splash protection. It works stably in ‑55℃~150℃, resists 15g vibration and 96hr salt spray, suitable for complex medical and industrial application environments.
Technical Parameters
Parameters | Specifications |
Operating Temperature | -55°C~150°C |
Humidity(max) | <=95%[at 60°C/140°F] |
Salt Spray Corrosion | 96hr |
Vibration | 15g[10Hz~2000Hz] |
Mating Cycles | 1000+ times |
Contact Material | Gold Plated Tin Bronze |
Housing Material | PSU White |
Insulator Material | PPS |
Pin Configuration | High-voltage Pin Available |
Insulator Resistance | 5000 mΩ[at 5000V AC] |
IP Rate | IP61 |
Rated Current | 2A |
Rated Voltage | 1000V AC |
Product Uses
Electrophysiology & Cardiac Intervention
Suitable for cardiac electrophysiology catheters, mapping systems, ablation equipment and interventional therapy devices to support multi‑channel signal transmission.
Surgical & Minimally Invasive Equipment
Applied in surgical energy instruments, endoscopic handpieces, laparoscopic devices and operating room precision connecting components.
Monitoring & Diagnostic Instruments
Used in multi‑parameter monitors, electrophysiological diagnostic equipment, precision sensors and in vitro diagnostic devices.
Test & Measurement Equipment
Ideal for multi‑channel signal acquisition, data loggers, biological signal testers and industrial precision measuring instruments.
Portable & Industrial Devices
Widely used in portable instruments, handheld terminals, industrial sensors and automation equipment.
FAQ
Q: What is the protection level of QM PAG.3P.326.PLAC65W?
A: It achieves IP61 protection when mated, suitable for medical clean rooms, operating rooms and indoor precision equipment.
Q: Is this product fully interchangeable with standard 3P connectors?
A: It is designed according to 3P standard dimensions and structure, supporting direct replacement in most medical and industrial scenarios.
Q: Can housing color, key code and cable diameter be customized?
A: Color, key code and cable clamping specifications can be customized according to requirements. Some customized items need to meet MOQ.
Q: What is the conventional production lead time?
A: Small batch orders can be delivered in 3–5 working days; standard batch orders take about 30 calendar days.
