PKG.0P.307.PKAC42GZ 7-pin Plastic Push-pull Connector

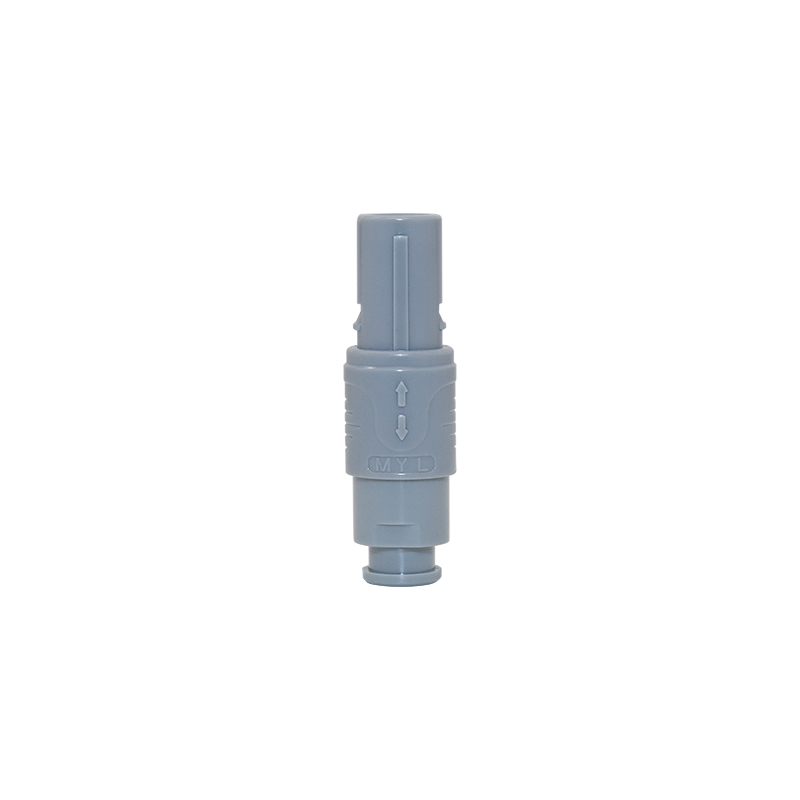

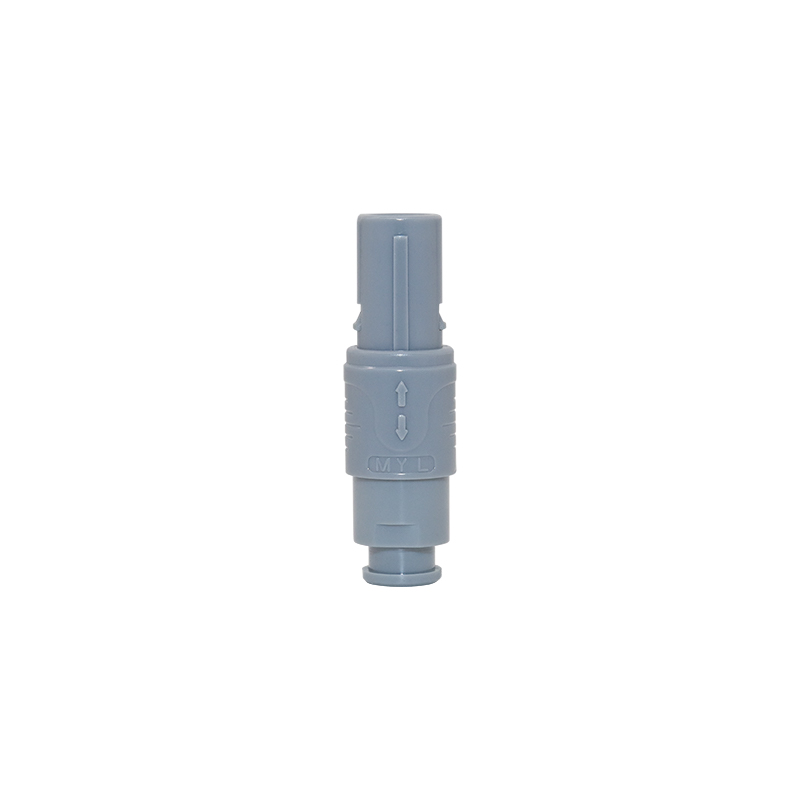

PKG.0P.307.PKAC42GZ 7-pin Plastic Push-pull Connector with Sheath

PAG.0P is a miniature push-pull self-latching circular connector with 2–9 pins, featuring a lightweight structure and high-stability electrical design for compact installation. With PEEK insulation, gold-plated contacts and high-strength housing, it ensures long-term reliable connection in harsh environments and supports flexible customization, widely used in precision equipment and portable instruments.

Model:
PKG.0P.307.PKAC42GZ
Brand:
QM (QUANMA)
Code:
8536901100

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Introduction

QM PAG.0P push-pull connector is a straight push-pull self-latching miniature connector with tail cap, available in 7 pins. Contacts are gold-plated tin bronze; insulator is high-performance PEEK; housing and main structure use PSU engineering plastic. All materials comply with RoHS. It supports multiple key positionings, customizable tail cap colors, various cable OD adaptations and interface configurations to meet high-density connection needs in medical, industrial control, sensing, wearable electronics and other fields.

Product Advantage

Miniature and lightweight, ultra-small size for quick assembly in space-limited devices
PEEK insulator provides ultra-high insulation resistance, low high-frequency loss and high voltage resistance
Gold-plated contacts ensure low contact resistance, oxidation resistance and long mating life
Wide temperature range, anti-vibration and salt spray resistance for strong environmental adaptability
Multiple key codes prevent mis-insertion and improve connection safety
Customizable pins, colors, cable clamps and interfaces for high compatibility
All materials RoHS-compliant to meet global environmental requirements

Technical Parameters

Parameters	Specifications
Operating Temperature	-55°C~150°C
Humidity(max)	<=95%[at 60°C/140°F]
Salt Spray Corrosion	96hr
Vibration	15g[10Hz~2000Hz]
Mating Cycles	1200+ times
Contact Material	Gold Plated Tin Bronze
Housing Material	PSU
Insulator Material	PEEK
Hexagon Nut Material	Nickel-plated Brass
Contact Diameter	0.5mm
Length of Welding Cups	4mm
Rated Current	2.5A
Rated Voltage	1000V AC
Insulator Resistance	5000 mΩ[at 5000V AC]
Contact Resistance	<=15 mΩ
IP Rate	IP50

Product Uses

Medical Equipment

Endoscopes, minimally invasive instruments, single-use medical sensors, electrodes

Test and Measurement Instruments

Handheld oscilloscopes, multimeters, signal generators, data acquisition systemsules in chromatographs, mass spectrometers and electrochemical workstations.

Industrial Control

Small industrial modules, pressure/temperature/flow sensors, precision instruments

Portable Electronics

Industrial tablets, barcode scanners, smart wearables, AR/VR devices

Portable Energy Storage

Mobile power supplies, fast charging and signal interfaces for small energy storage devices

FAQ

Q：Is it compatible with mainstream international push-pull connectors?

A: This product is highly compatible with mainstream brands in structure, size and performance and can be directly replaced in most scenarios. Free compatibility testing is supported.

Q: What is the lead time for mass production?

A: Sample orders: 3–5 working days; 1000pcs regular orders: about 30 days; bulk orders: real-time capacity checked within 1 working day; customized products: lead time to be confirmed separately.
