Product

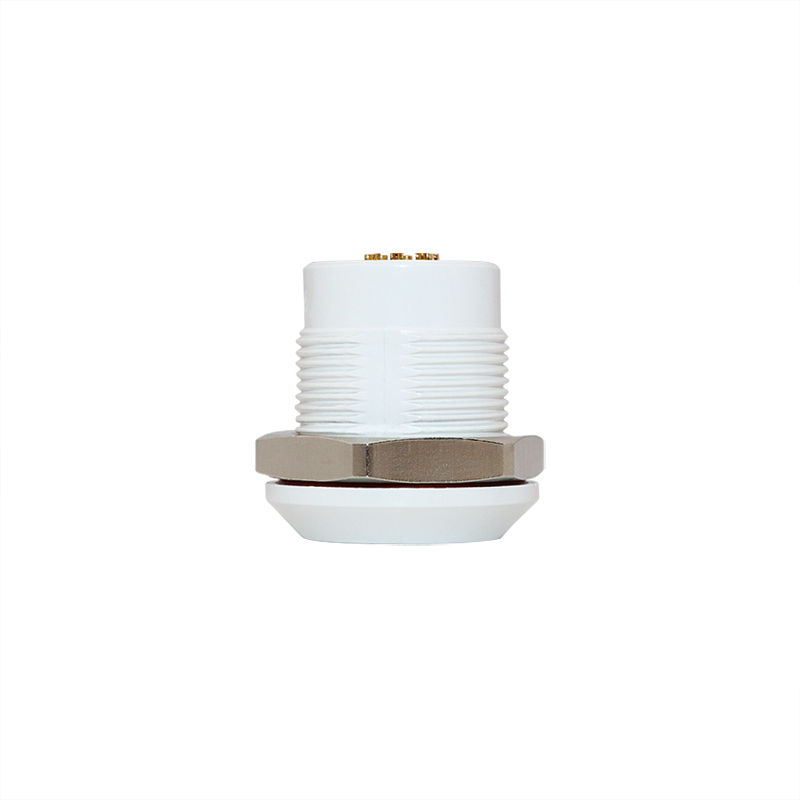

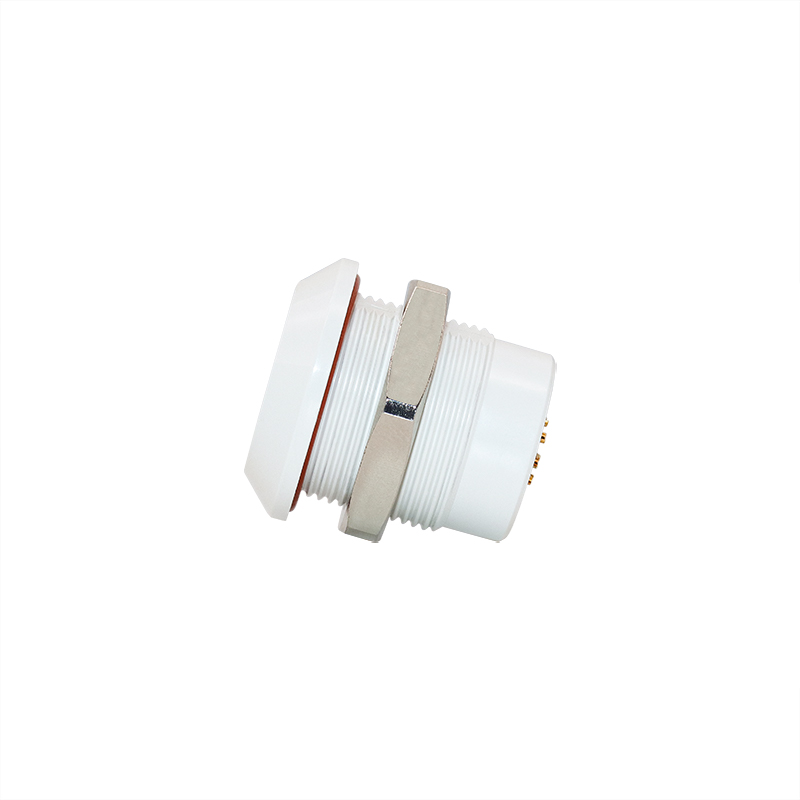

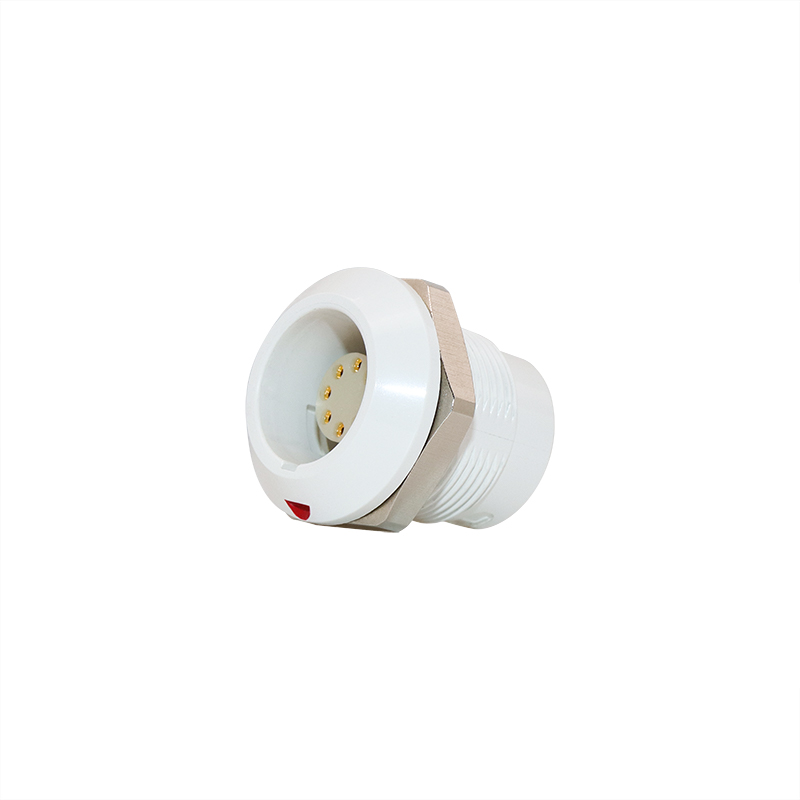

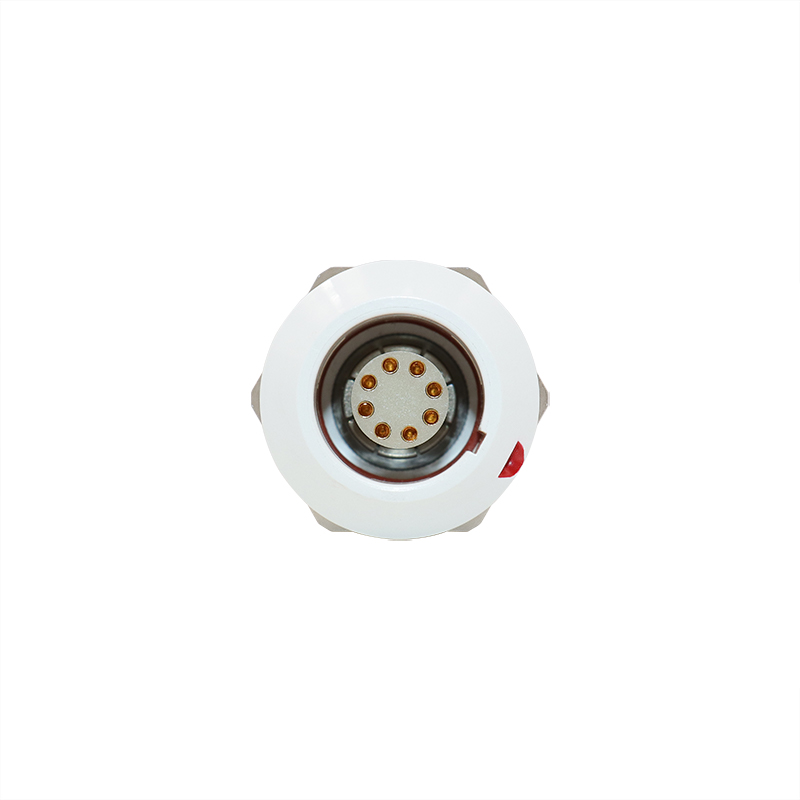

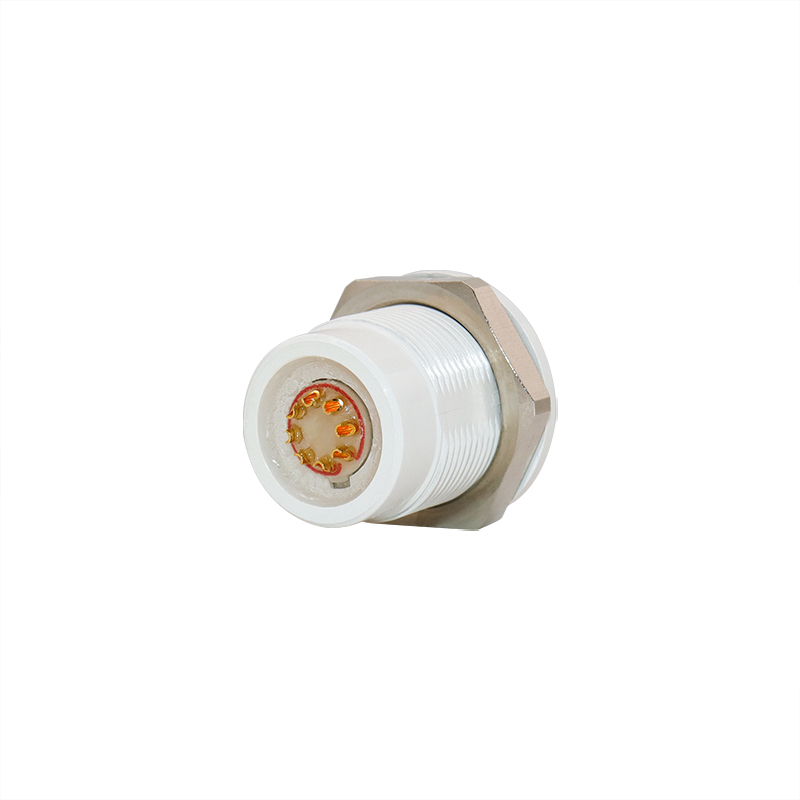

TGG.2KP.308.UWLAC52Z
QM (QUANMA)
| Quantity: | |
|---|---|
Developed on modular TGG-3BP product platform, TGG.3BP.846.UWLAD82Z innovatively combines two coaxial cores for high-frequency radio transmission and six signal pins for control circuit connection, differing pin specifications bring differentiated current loading capacity to satisfy mixed transmission of RF signal and DC power. Multiple angle anti-misplug positioning keys are reserved to eliminate assembly misalignment, and matched rubber tail sheath can install cables with outer diameter ranging from 5.2mm~12mm for effective strain relief. Closed metal shielding structure gains 75dB@10MHz &40dB@1GHz shielding efficiency, while high heat-resistant PPSU material keeps dimensional and electrical stability after frequent autoclave sterilization. The component passes 96h salt spray, specified vibration and impact inspection with over 5000 mating cycles, perfectly matching repeated disinfection requirement of medical devices and long-running production condition of semiconductor workshops.
Separated structural layout isolates high-frequency coaxial signal from conventional low-frequency control signals physically, avoiding mutual crosstalk inside the connector. Diversified contact sizes configure independent rated current values, catering to high-frequency sampling and power supply synchronous transmission of clinical diagnosis and chip detection equipment.
Integrated enclosed shielding construction effectively blocks external electromagnetic wave invasion and internal high-frequency signal leakage, with fixed shielding parameters of 75dB at 10MHz and 40dB at 1GHz, improving detection precision of precision medical and semiconductor instruments.
Core insulation and shell adopt biocompatible PPSU raw material, supporting more than 200 cycles of 134℃ steam high-pressure sterilization without material aging or electrical parameter drift, complying with hospital regular disinfection standard for surgical instruments.
Stable operation between -55℃~150℃, normal work under 60℃ and ≤95%RH environment; withstands 15g (10Hz~2000Hz) sweeping vibration and 100g/6ms instantaneous impact, and completes continuous 96-hour neutral salt spray testing for coastal and damp industrial scenes.
Tin bronze base with full gold plating reduces loop contact resistance effectively; more than 5000 times plugging lifespan cuts spare part replacement frequency and after-sales maintenance expense of terminal finished equipment.
Eight types of positioning keys with different installation angles prevent wrong mating among similar series products, and configurable tail protective sleeve matches 5.2~12mm outer diameter cables to satisfy diversified wiring requirements.
This connector is assembled on ultrasonic diagnostic equipment, vital sign monitors and endoscopic assemblies. Its autoclave tolerance and excellent shielding keep high-frequency signal intact after repeated clinical disinfection and daily frequent plugging operation.
Applied to wafer inspection benches and chip sorting testing equipment, coaxial structure ensures high-frequency RF transmission stability, while EMC shielding eliminates data deviation caused by factory internal electromagnetic field interference.
Matching cell culture analyzers and biological detection instruments, biocompatible material meets strict laboratory sanitation and regular disinfection needs, securing accurate experimental data output.
Featured with outstanding shock resistance and wide temperature adaptability, it is widely used for outdoor emergency medical equipment and mobile inspection instruments under complex field ambient conditions.
Passed long-term salt spray certification, the connector serves coastal water quality detectors and offshore sensor modules for stable data transmission under high-salt humid marine atmosphere.
A: It reaches 75dB shielding at 10MHz and 40dB at 1GHz with full 360° shielding structure, ideal for precision medical and semiconductor testing devices requiring strict anti-interference performance.
A: The PPSU construction supports over 200 cycles of 134℃ steam sterilization without performance degradation, suitable for repeatedly disinfected surgical devices.
A: It adopts exclusive 2 coaxial plus six signal mixed layout, separating high-frequency radio and control power to prevent signal crosstalk inside the connector.
A: It achieves IP50 protection after full locking to block large particle dust and satisfy indoor medical and semi-closed industrial application.
A:Mating life exceeds 5000 cycles; gold-plated tin bronze contacts lower contact resistance and reduce abrasion for long-term stable conduction.
