Product Introduction

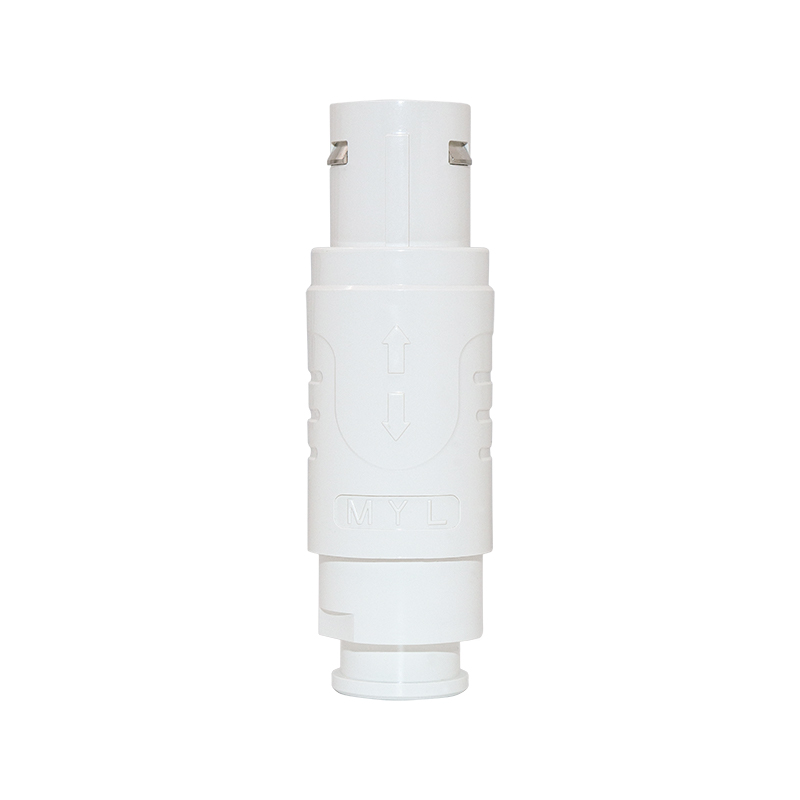

Developed based on mature TGG-3BP modular design platform, TGG.3BP.846.UWLAD82Z realizes mixed layout of two coaxial terminals and six ordinary signal contacts, supporting differentiated rated current and voltage transmission according to different pin diameters. The built-in multi-key anti-misplug positioning system covers multiple angle positioning specifications to avoid wrong assembly during field installation; integrated rubber tail sheath structure matches multiple outer diameter specifications of connecting cables for tight clamping and strain relief. Its closed shielding structure brings prominent anti-electromagnetic interference effect, and PPSU high-temperature resistant base material enables the product to finish more than 200 times 134°C high-pressure steam sterilization without structural deformation or electrical performance decline. Meanwhile the product passes rigorous vibration, impact and salt spray verification test, with over 5000 times stable plugging cycle, applicable to long-term repeated disinfection and harsh industrial operating environments.
Product Advantage

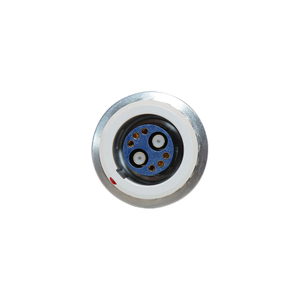

Custom 2 Coaxial +6 Signal Hybrid Pin Arrangement
Unique hybrid structural design of double coaxial pins and six signal terminals separates high-frequency radio signal and conventional control circuit transmission physically. Different contact sizes correspond to independent current load parameters, satisfying synchronous transmission of high-frequency analog signal and DC power supply required by medical detection and semiconductor testing equipment.
360° Full Surround EMC Shielding Property
Integrated metal shielding component achieves 75dB shielding efficiency at 10MHz low frequency band and 40dB shielding attenuation at 1GHz high-frequency band, effectively blocking external electromagnetic wave intrusion and internal high-frequency signal radiation leakage, improving test data accuracy for precision medical and semiconductor equipment.
High Temperature Resistant & Autoclave Sterilization Durability
All core insulating and shell components adopt medical grade PPSU material, capable of enduring over 200 cycles of 134°C high-temperature high-pressure steam sterilization. Material property stays stable after repeated high-temperature disinfection, perfectly matching regular high-temperature sterilization demands of surgical and clinical medical equipment.
Comprehensive Harsh Environment Adaptability
Stable electrical performance can be maintained from -55°C to 150°C operating temperature range, working reliably under 60°C ambient temperature and relative humidity below 95%. The connector withstands 10Hz~2000Hz,15g sweeping vibration and 100g/6ms instantaneous impact, and passes continuous 96-hour neutral salt spray testing for coastal and damp industrial installation.
Tin Bronze Gold-Plated Contacts & Long Service Life
Contact parts adopt tin bronze base with full gold plating craft to lower contact resistance and promote conductive stability; the mechanical mating lifespan exceeds 5000 plug/unplug cycles, greatly cutting later maintenance and part replacement expense of terminal finished equipment.
Multi-spec Cable Matching & Anti-wrong Insert Key Position Design
Equipped with matching tail protective sleeve structure, the connector supports multiple outer diameter cables ranging from 5.2mm~12.0mm for flexible wiring selection. Diversified positioning key codes with different installation angles prevent misplugging among same-series products and raise on-site assembly efficiency.
Technical Parameters
Parameters | Specifications |
Operating Temperature | -55°C~150°C |
Humidity(max) | <=95%[at 60°C/140°F] |
Salt Spray Corrosion | 96hr |
Vibration | 15g[10Hz~2000Hz] |
Mating Cycles | 5000+ times |
Contact Material | Gold Plated Tin Bronze |
Housing Material | PPSU |
Insulator Material | PPS+PTFE |
Hexagon Nut Material | Nickel-plated Brass |
Contact Diameter | 9mm |
Length of Welding Cups | 4mm |
Rated Current | 10A |
Rated Voltage | 875V AC |
Insulator Resistance | 5000 mΩ[at 5000V AC] |
Contact Resistance | <=12.5 mΩ |
IP Rate | TIP50 |
Product Uses
Clinical Medical Devices
TGG.3BP.846.UWLAD82Z is widely fitted on ultrasonic diagnostic instruments, endoscope assemblies, patient vital sign monitoring equipment and minimally invasive surgical auxiliary apparatus. Thanks to high-temperature sterilization tolerance and excellent shielding performance, it ensures undistorted high-frequency signal transmission after repeated equipment disinfection and daily clinical frequent plugging operation.
Semiconductor Precision Production Equipment
Applied for wafer detection modules, chip sorting test benches and semiconductor online monitoring instruments, the 2-coaxial layout meets high-frequency radio-frequency signal transmission demand, and anti-interference shielding avoids data deviation caused by surrounding electromagnetic field fluctuation in production workshop.
Laboratory Precision Test Instruments
Suitable for multi-channel signal acquisition analyzers, environmental aging test cabinets and physical parameter calibration equipment, mixed power and signal layout realizes integrated wiring, compact structure saves internal instrument installation space and guarantees long-term stable measuring data output.
Industrial Automation & Precision Testing Equipment
Deployed on automated detection robots, online dimensional inspection equipment and sensor signal transfer terminals, outstanding vibration and damp resistance adapts continuous running of workshop automatic production lines under complex industrial surroundings.
Aerospace & Vehicle On-board Detection Units
Wide-range temperature adaptability and impact resistance make this connector ideal for airborne portable test equipment and vehicle-mounted precision sensing modules, maintaining stable connection amid bumpy transportation and extreme ambient temperature change.
Special Marine & Environmental Monitoring Equipment
Passed long-hour salt spray corrosion certification, the product is selected for coastal environmental monitoring sensors and shallow water detecting equipment to stably transmit collected data in high-salt marine atmosphere.
FAQ
Q1: What are the EMC shielding parameters of TGG.3BP.846.UWLAD82Z, and which industries benefit most from its shielding advantages?
Its shielding effectiveness reaches 75dB at 10MHz and 40dB at 1GHz with full 360° shielding structure. It effectively suppresses electromagnetic interference and signal leakage, perfectly matching signal transmission requirements of precision medical equipment and semiconductor testing devices with strict anti-interference standards.
Q2: How many times of high-temperature steam sterilization can this connector withstand, and what is its extreme environmental adaptability?
The connector can stand over 200 cycles of 134℃ steam sterilization, works stably within -55℃~150℃, resists ≤95% humidity(60℃), 96h salt spray, 15g vibration and 100g/6ms impact, applicable to medical disinfection and industrial corrosive working conditions.
Q3:What is the feature of its internal pin configuration and applicable application value?
It adopts exclusive 2 coaxial plus 6 ordinary signal mixed layout, separating high-frequency RF signal and control power circuit physically, specially developed for high-frequency test of medical apparatus and semiconductor equipment to realize mixed transmission of high frequency and ordinary signals.
Q4:What is the material composition and service life indicator of this connector?
Main shell and insulator use PPSU, auxiliary shell is nickel-plated copper, contacts are gold-plated tin bronze; rated mechanical mating life is above 5000 times, lowering later maintenance cost of finished equipment.
Q5:What protection level can the connector achieve after full mating?
The product owns IP50 protection rating under fully mated state, effectively blocking large particle dust intrusion and satisfying conventional indoor and semi-open industrial installation requirements.
