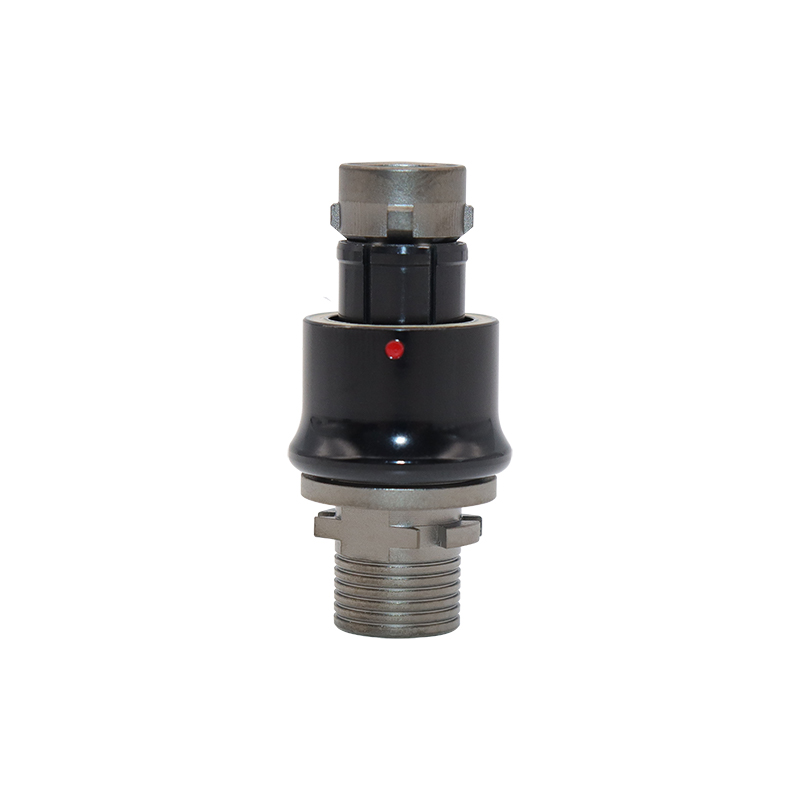

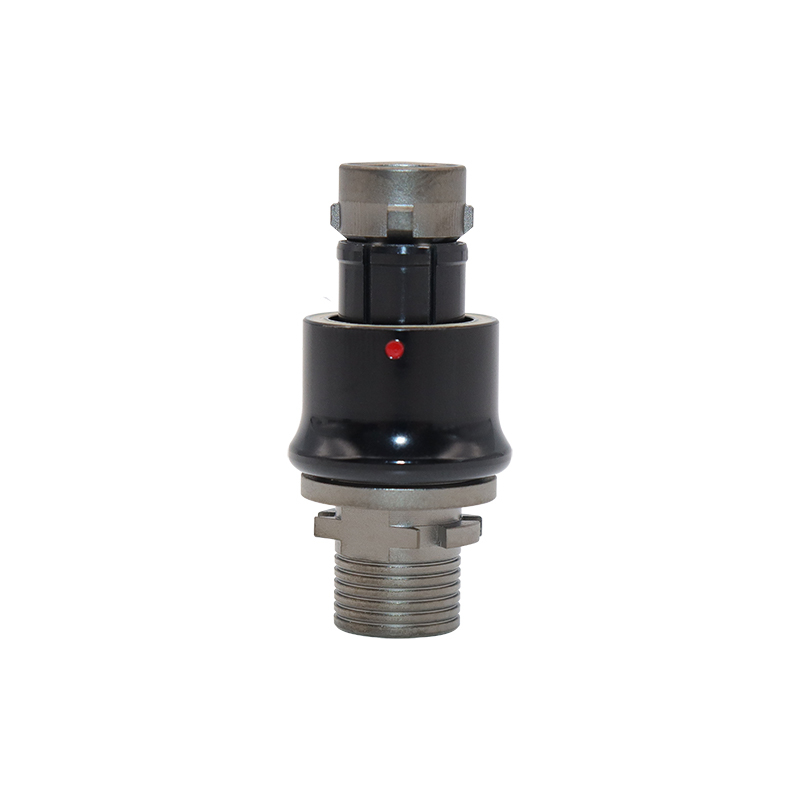

TLA.1Y.302.XLA is a compact, lightweight and easy-to-operate push-pull self-locking plug. It features mechanical positioning and color coding for dual anti-mismatch protection. Customizable easy-to-clean POGO-PIN contacts are available, and the housing is extremely robust. It supports mixed signal integration in a single connector, with pin configurations for signals, high and low voltage, coaxial/triaxial, optical fiber, and pneumatic circuits.
We provide full system integration solutions for your connection needs, covering design, assembly, and precision component processing. Flexible customization ensures the connector fully matches your equipment structure and application scenario, delivering a one-stop reliable connection system.
This connector performs stably under extreme conditions including high/low temperatures, vibration, shock, salt spray, and humidity. Its rugged structure and high-performance materials guarantee long-term durability in harsh industrial, outdoor, and military-grade environments.
Supporting safe and reliable blind-mating connection, it enables quick installation even in narrow or invisible spaces. The push-pull self-locking design is simple to operate, greatly improving assembly efficiency and reducing operational errors in field use.
With a professional shielding structure, it offers excellent anti-interference performance to effectively suppress electromagnetic noise. It ensures stable transmission of weak signals and high-speed data, making it ideal for precision optical, communication, and defense equipment.
The connector achieves IP68 waterproof and dustproof protection, fully preventing intrusion of dust, water, and moisture. It can operate reliably in humid, rainy, submerged, or dusty environments, maintaining stable performance in long-term outdoor applications.
Featuring low contact resistance, high-quality gold-plated contacts, and a robust locking mechanism, it ensures consistent and secure transmission of signals, high-speed data, and power. Stable connectivity avoids interruptions even under vibration and harsh working conditions.
Parameters | Specifications |
Operating Temperature | -55°C~125°C |
Humidity(max) | <=95%[at 60°C/140°F] |
Salt Spray Corrosion | 1000hr |
P op(max) | 60 bar(870psi) |
Mating Cycles | 10000+ times |
Contact Material | Gold Plated Tin Bronze |
Housing Material | Gun Color Platesd Aluminium |
Insulator Material | PPS |
Other Shell Material | Nickel-plated Brass |
Contact Diameter | 1.3mm |
Shock Resistance | 100g[6ms] |
Rated Current | 15A |
Rated Voltage | 1000V AC |
Insulator Resistance | >=5000 mΩ[at 500V DC] |
IP Rate | IP68(Mated) |
R(Max) | <=5mΩ |
Y connectors are widely applied in airborne equipment, satellites, radar, and measurement systems. They can endure extreme environments such as high and low temperature, vibration, shock, and salt spray, satisfying the high-reliability demands of aerospace applications.
For shipboard electronic systems, marine communication and underwater equipment, Y connectors provide outstanding waterproof, salt-fog resistance and corrosion protection. They maintain stable performance in high-humidity and high-salt marine environments.
Used in military communication, command systems, weapons and field equipment, Y series connectors feature high strength and stability. They adapt to complex battlefield environments and ensure reliable connection under severe vibration and impact.
In industrial automation, rail vehicles and signal control systems, Y connectors deliver strong anti-interference performance and long-term stability. They operate reliably in harsh industrial environments and ensure continuous and safe equipment operation.
Applied in communication base stations and transmission equipment, Y connectors guarantee stable signal and data transmission. With high sealing and shielding performance, they support long-term stable operation in outdoor communication systems.
A: The TLA.1Y series currently offers three standard molded insulator pin configurations: 10 pins, 12 pins, and 19 pins. These mature, mass-produced designs are widely used in aerospace, military, industrial, and communication equipment for reliable signal and power transmission.
A: Yes, two types of dust caps are available: BTA and BZE. They feature an aluminum alloy shell and silicone O ring seals, with IP68 waterproof rating and a maximum operating temperature of 135°C. Stainless steel or nylon lanyards can be selected.
A: Yes. Besides the push-pull self-locking type, the Y series also offers a straight plug-and-pull version. Both types are available. The pin insert mold may differ, and we can modify dimensions and other parameters according to customer requirements.
