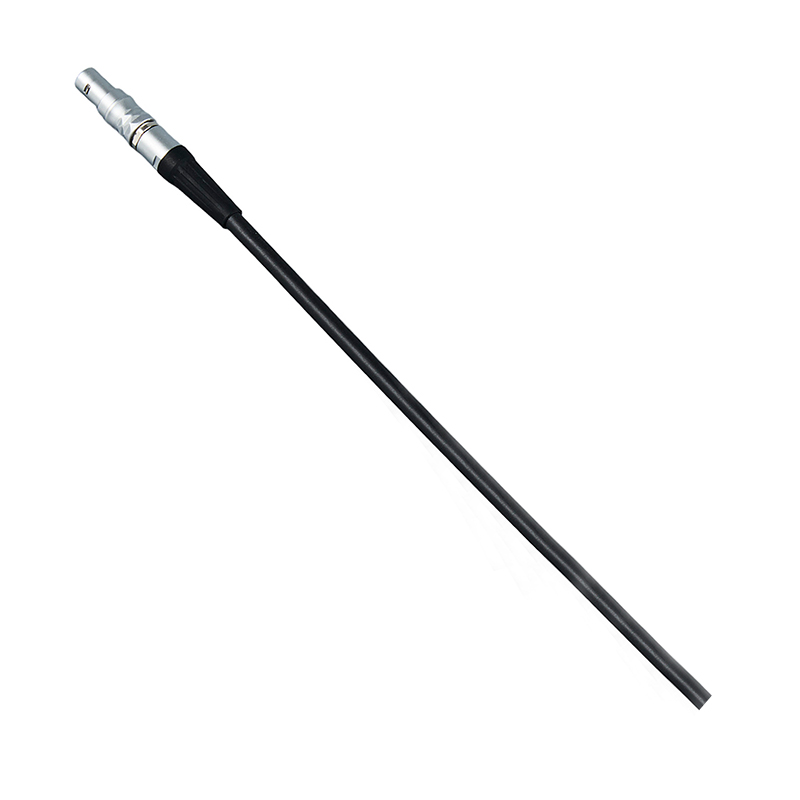

QM.B22.928.108 (Cable with High Speed Differential Plug TGG.0B.305.CLAD52Z)

QM.B22.928.108 (Cable with High Speed Differential Plug TGG.0B.305.CLAD52Z)

Model QM.B22.928.108 matches TGG.0B.305.CLAD52Z push-pull connector with integral pre-assembled structure. Adopting PPSU housing, it can endure over 200 cycles of high-pressure high-temperature sterilization at 134℃. It is primarily applied to Class III interventional medical devices, high-precision semiconductor testing equipment and nuclear physical-chemical lab analyzers

Model:
QM.B22.928.108 (TGG.0B.305.CLAD52Z)
Brand:
QM (QUANMA)

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Introduction

QM.B22.928.108 (TGG.0B.305.CLAD52Z) push-pull connector with integral pre-assembled structure. Adopting PPSU housing, it can endure over 200 cycles of high-pressure high-temperature sterilization at 134℃. It is primarily applied to Class III interventional medical devices, high-precision semiconductor testing equipment and nuclear physical-chemical lab analyzers

Product Advantage

PPSU Housing High Sterilization Resistance Property

High-performance PPSU casing retains stable shape after repeated autoclave disinfection, meeting cyclic sterilization requirements of interventional instruments used in operating suites

Tool-free Push-pull Quick Disconnect Structure

Push-pull self-locking design enables one-handed rapid mating and separation, convenient for emergency disassembly and maintenance of clinical equipment.

Medical Grade Biocompatible Inner Conductor Insulation

Internal insulating materials have passed cytotoxicity biological assessment, ready for direct assembly matching with intracavity interventional catheters.

Anti-chemical Corrosion Outer Sheath Design

Custom fluoroplastic outer sheath prevents corrosion from hospital clinical disinfectants and industrial chemical solvents inside semiconductor production workshops.

Cleanroom Full Process Medical Standard Production

All assembly and soldering operations are finished in medical-standard dust-free workshops to block foreign contaminant particles and secure stable safe operation of medical apparatus.

Technical Parameters

Parameters	Specifications
Operating Temperature	-55°C~150°C
Humidity(max)	<=95%[at 60°C/140°F]
Salt Spray Corrosion	96hr
Vibration	15g[10Hz~2000Hz]
Mating Cycles	5000+ times
Contact Material	Gold Plated Tin Bronze
Housing Material	PPSU
Insulator Material	PPS+PTFE
Hexagon Nut Material	Nickel-plated Brass
Contact Diameter	0.9mm
Length of Welding Cups	4mm
Rated Current	10A
Rated Voltage	875V AC
Insulator Resistance	5000 mΩ[at 5000V AC]
Contact Resistance	<=12.5 mΩ
IP Rate	TIP50

Product Uses

Coronary interventional consumable harness,semiconductor wafer precision inspection cable,nuclear chemistry lab analytical instrument wiring,high-frequency imaging diagnosis equipment in operating room.

FAQ

Q What certifications can you provide for military and medical projects?

A We hold ISO9001,ISO13485,CE,RoHS, relevant GJB test report can be applied for military project as required.

Q Can ultra-fine medical catheter wire be customized?

A Two exclusive precision manufacturing workshops adopt ultra-fine precision soldering techniques to produce customized full harnesses matching ICE and OCT minimally invasive diagnosis & treatment equipment.
