QM.FX22.928.105 (FX104T02CC038A1N-HS)
QM (QUANMA)
| Quantity: | |
|---|---|

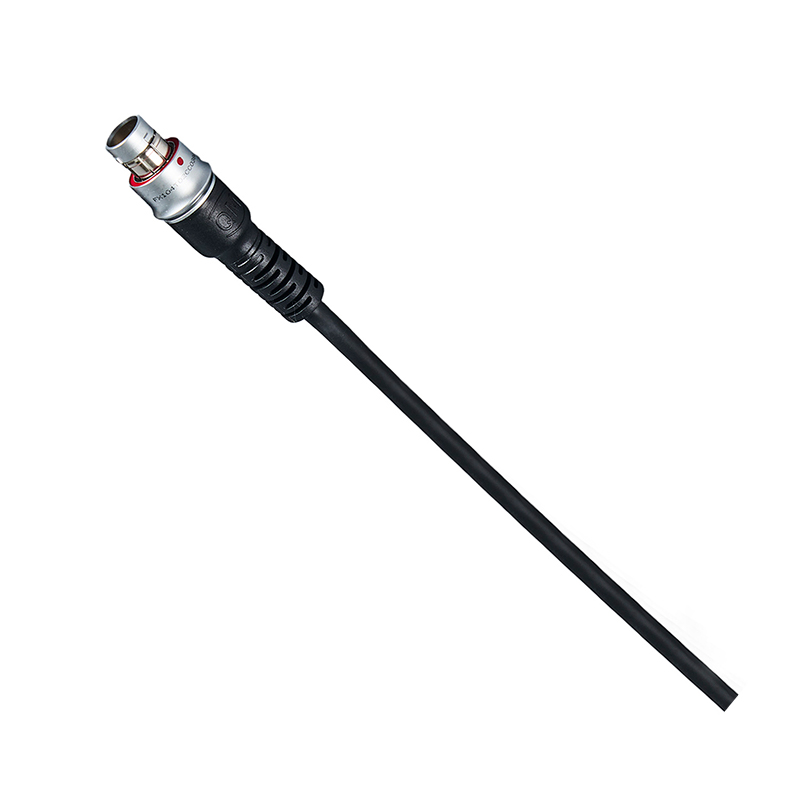

QM.FX22.928.105 is finished cable assembly matched with FX104T02CC038A1N-HS plug. All wiring terminals are precisely soldered by in-house craft team to consolidate crimping and soldering junction, delivering steady signal transmission and long-term running stability across multiple precision industries.
1.Quick bayonet locking design for rapid connection, rotate to lock/unlock without auxiliary tools; internal limit structure prevents loose separation under frequent vibration impact.
2.Mixed pin layout adaptable to signal+power compound transmission, compact round outline saves internal equipment layout space for miniaturized precision equipment wiring.
3.High flexible customization covering wire OD, pin assignment and finished cable length, match custom wiring demand of medical and semiconductor prototype projects.
4.HTin bronze gold-plated contact lowers contact impedance, high-performance insulation material enables wide temperature operation and superior salt fog resistant property.
5.Full-process in-house production from incoming connector inspection, wire stripping, soldering to finished testing, full batch traceability and standardized quality inspection system.
Parameters | Specifications |
Operating Temperature | -55°C~150°C |
Humidity(max) | <=95%[at 60°C/140°F] |
Salt Spray Corrosion | 96hr |
Vibration | 15g[10Hz~2000Hz] |
Mating Cycles | 5000+ times |
Contact Material | Gold Plated Tin Bronze |
Housing Material | PPSU |
Insulator Material | PPS+PTFE |
Hexagon Nut Material | Nickel-plated Brass |
Contact Diameter | 0.9mm |
Length of Welding Cups | 4mm |
Rated Current | 10A |
Rated Voltage | 875V AC |
Insulator Resistance | 5000 mΩ[at 5000V AC] |
Contact Resistance | <=12.5 mΩ |
IP Rate | TIP50 |
Ideal for precision testing and laboratory equipment, MGG.4B.340.CLL supports multi-channel signal transmission for data acquisition systems, oscilloscopes, signal analyzers, and automated test equipment. It provides stable connections for sensors measuring pressure, temperature, and vibration, and performs well in environmental test chambers and aging test equipment. High density and durability make it suitable for long-term reliable testing applications.
Designed for harsh industrial environments, MGG.4B.340.CLL is widely used in industrial robots, visual inspection systems, servo control systems, and automated production lines. It supports mixed transmission of power, IO signals, and communication data with high current capacity and strong anti-vibration performance. Its robust metal structure and stable connection ensure stable operation in dusty, vibrating, and high-load workshop conditions.
MGG.4B.340.CLL provides high-density, multi-signal integrated connection for professional broadcast cameras, live production systems, stage lighting, and audio equipment. It supports synchronous transmission of video, audio, control, and power signals, with quick push-pull mating for fast on-site setup. Stable shielding and reliable locking ensure uninterrupted signal transmission during outdoor shooting and stage performances.
With excellent environmental resistance, MGG.4B.340.CLL is suitable for aerospace equipment, rail transit systems, and special vehicles. It features high strength, shock resistance, and wide temperature adaptability, ensuring stable connection in airborne devices, cabin control systems, and vehicle-mounted equipment. Its compact and durable design meets the high-reliability requirements of transportation and special equipment.
MGG.4B.340.CLL is also applied in semiconductor equipment, scientific instruments, emergency communications, and marine detection devices. It supports stable signal and power transmission in vacuum, high-altitude, and salt-spread environments. High durability, long mechanical life, and excellent sealing performance make it a preferred solution for precision instruments and special industrial applications.
