QM.FX22.928.105 (FX104T02CC038A1N-HS)
QM (QUANMA)
| Quantity: | |
|---|---|

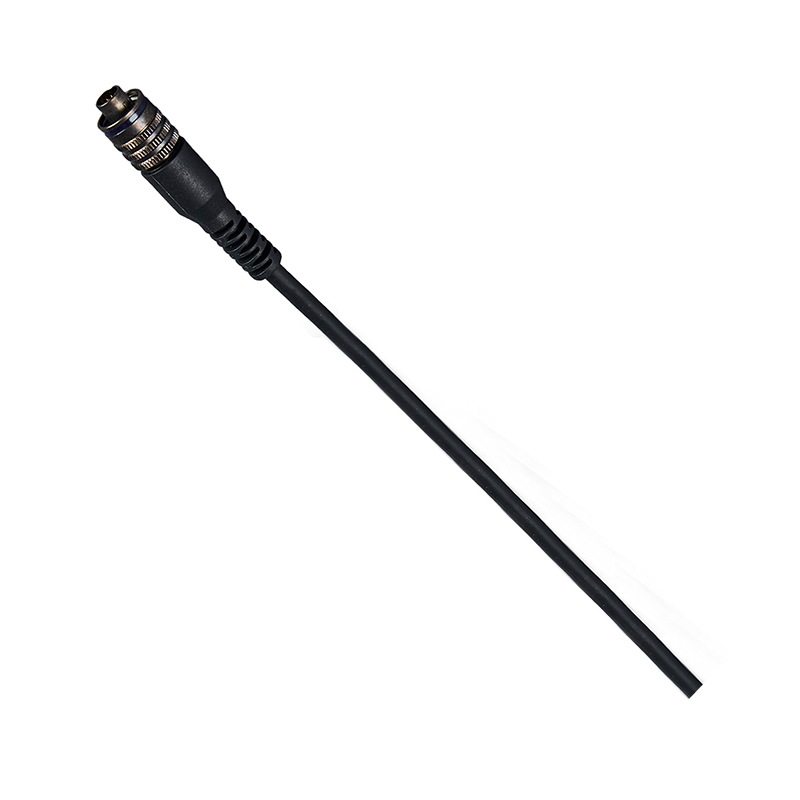

QM.M22.928.106 is finished cable matched flat push-pull TGA.0M.310.XLA connector, designed for miniaturized semiconductor process equipment and portable military shortwave communication terminal, ultra-flat structure solves narrow cabin wiring difficulty of compact defense and semiconductor equipment.
Miniature housing and cable layout break large connector space limitation, fit ultra-narrow gap installation inside mini communication equipment and semiconductor compact chamber without space extrusion.
Integrated full-circle braided shielding suppress external electromagnetic interference, effectively avoid signal disorder of high-frequency semiconductor etching and shortwave radio transmission under complex electromagnetic field environment.
Specially customized low-capacitance anti-static wire for semiconductor workshop, optional medical high-flex fluoroplastic wire and military radiation-resistant cable to satisfy multi-industry customized demands.
Industry standard push-pull self-locking structure realizes one-hand plugging without auxiliary tools, convenient for rapid field overhaul and equipment modular disassembly replacement.
Parameters | Specifications |
Operating Temperature | -55°C~150°C |
Humidity(max) | <=95%[at 60°C/140°F] |
Salt Spray Corrosion | 96hr |
Vibration | 15g[10Hz~2000Hz] |
Mating Cycles | 5000+ times |
Contact Material | Gold Plated Tin Bronze |
Housing Material | PPSU |
Insulator Material | PPS+PTFE |
Hexagon Nut Material | Nickel-plated Brass |
Contact Diameter | 0.9mm |
Length of Welding Cups | 4mm |
Rated Current | 10A |
Rated Voltage | 875V AC |
Insulator Resistance | 5000 mΩ[at 5000V AC] |
Contact Resistance | <=12.5 mΩ |
IP Rate | TIP50 |
Military portable shortwave radio signal interconnection;
Semiconductor glue dispensing & thin-film coating process equipment auxiliary wiring;
Handheld nuclear radiation portable detector harness;
Endoscope host signal transmission cable for minimally invasive medical diagnosis;
Vehicle-mounted industrial measurement & control module connecting wire;
Laboratory high-frequency signal acquisition precision instrument matching cable.
A ISO9001,ISO13485,CE,RoHS ready, GJB test documents can be applied separately.
A Clean workshop supports flat wire extrusion & precision welding according to customer drawings.
A Pin definition,cable spec,cable length,application field.
