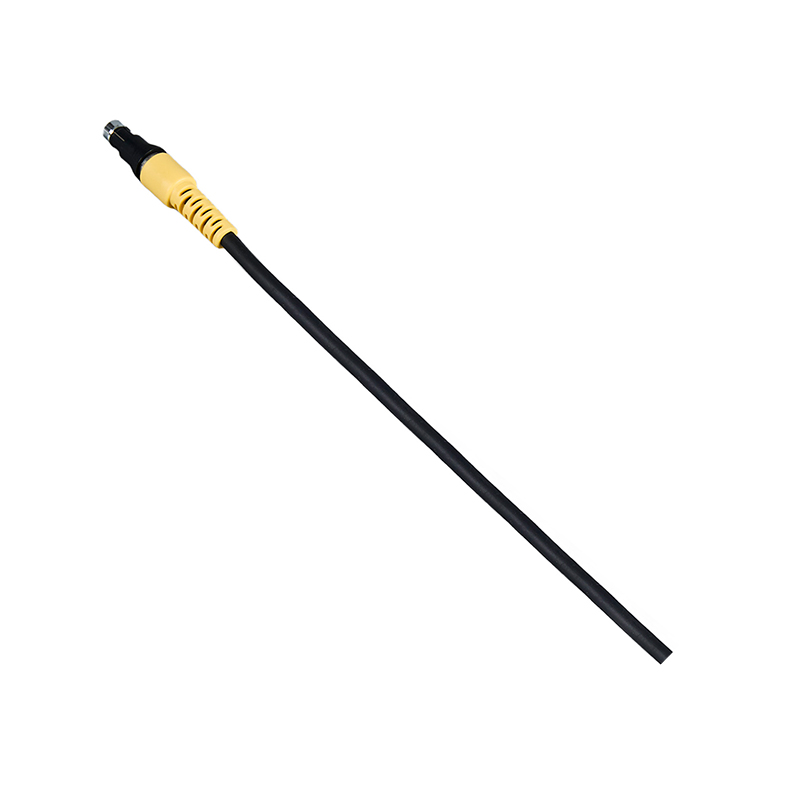

QM.JX22.928.110 is custom single-ended assembled wire harness fitted with IP68 waterproof circular connector JX-DC-4JT, developed for optoelectronic defense equipment, wafer precision inspection and sophisticated clinical testing instruments. All soldering procedures are finished inside thousand-level clean workshops following military manufacturing specifications. Crimp joint plus precise laser spot welding is adopted to build dependable circuit links, adapting to long-run service under drastic temperature fluctuation, damp air and harsh field operating surroundings.
IP68 Full Enclosed Waterproof Structure
JX-DC-4JT connector uses silicone rubber sealing ring for integral tail sealing treatment to reach IP68 protection grade, effectively blocking water infiltration for underwater installation, coastal humid environment and outdoor severe working occasions.
Compact Low-Voltage Terminal Layout
Based on IF.303 low voltage pin arrangement with 1.3mm diameter conductive terminals, compact inner wiring greatly cuts installation space for portable military detection devices and miniaturized semiconductor testing modules.
RoHS-Compliant Corrosion Resistant Raw Material Combination
Conductive terminals adopt gold-coated tin bronze; connector housing is black chromium plated brass, other metal accessories adopt nickel-plated brass and high temperature resistant PPS serves as insulator base. All raw materials satisfy RoHS standard with outstanding high-temperature and salt fog resisting capability.
Diversified Custom High-Speed Differential Cable Matching
Clients can select radiation-proof military wire, high-flex fluorine plastic medical cord or double-braid shielded differential cable. Terminal definition, finished harness length and outer sheath dimension can be tailor-made to fulfill personalized needs of semiconductor, medical and national defense industries.
Military Standard Shock & Vibration Resistant Construction
Designed per military environmental benchmarks with outstanding anti-vibration and anti-collision performance. Complete production test records are filed to realize full-link quality traceability and satisfy incoming check criteria of military research institutes and listed medical manufacturers.
Semiconductor Wafer Test Equipment
Used as high-speed differential signal transmission wiring for wafer probe devices, internal shielding design reduces site electromagnetic interference and keeps test data stable during continuous production.
High-end Minimally Invasive Medical Gear
Serves as internal connection wiring of precision clinical inspection devices, heat-resistant raw materials withstand repeated high-temperature disinfection for regular medical application.
Coastal & Shipborne Military Electronic Devices
Combination of 96-hour salt fog endurance and IP68 sealing fits onboard optoelectronic equipment wiring under high-salinity humid coastal climate.
Airborne & Vehicular Portable Detectors
Shockproof and anti-vibration features guarantee stable high-speed differential signal transmission for vehicle and aircraft carried inspection units under bumpy working status.
Precision Industrial Measuring Devices
Excellent insulation and stable electrical property matches sensor and precision test equipment wiring to ensure accurate high-speed differential signal delivery.
