QM.FX22.928.105 (YLH26N0807J21)
QM (QUANMA)
| Quantity: | |
|---|---|

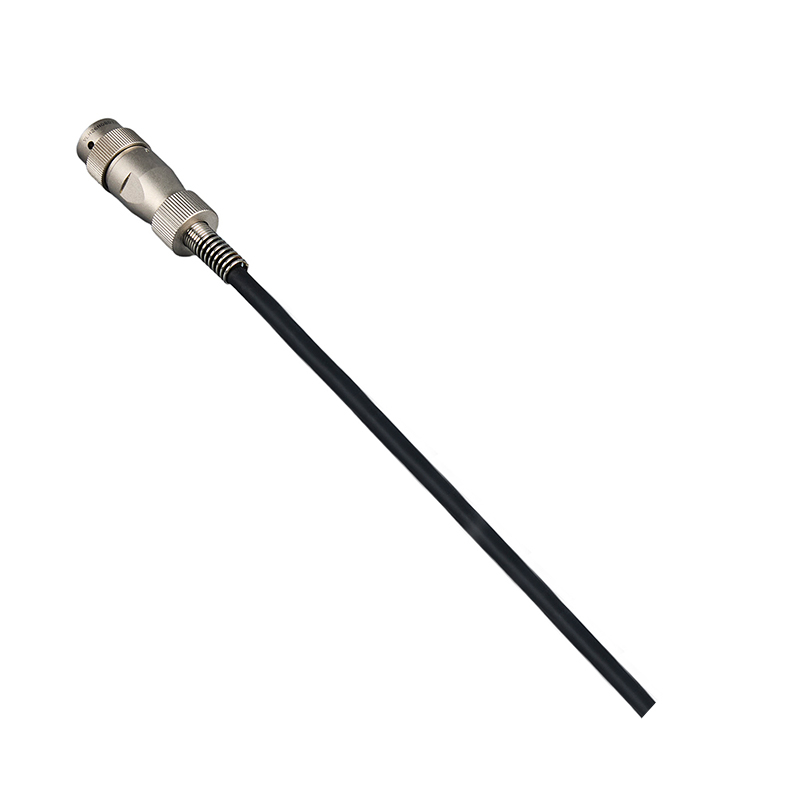

QM.FX22.928.105 is finished harness matched Φ5 spec YLH26N0807J21 threaded circular connector, mainly customized for nuclear environmental monitoring equipment and high-end ablation medical instruments, all assembly implemented per nuclear equipment accessory inspection criterion, screw-type joint improves long-term corrosion resistance in offshore and radiation environment.
Full thread locking structure meets offshore nuclear equipment anti-drop requirement, avoid loose connection under ship sway and long-term salt mist erosion.
Independent partitioning inside harness prevents power crosstalk interfering low-frequency detection signal, ideal for nuclear radiation detector precise data transmission.
Default Φ5 outer diameter cable, alternative radiation-resistant wire and medical high-flex wire, adjust length and shielding according RDN drawing.
PPSU shell plus gold plating contact pass medical biocompatibility test and nuclear low-dose radiation endurance test.
Extra salt spray & damp aging test for nuclear/medical batch before delivery, full test record filing.
Parameters | Specifications |
Operating Temperature | -55°C~150°C |
Humidity(max) | <=95%[at 60°C/140°F] |
Salt Spray Corrosion | 96hr |
Vibration | 15g[10Hz~2000Hz] |
Mating Cycles | 5000+ times |
Contact Material | Gold Plated Tin Bronze |
Housing Material | PPSU |
Insulator Material | PPS+PTFE |
Hexagon Nut Material | Nickel-plated Brass |
Contact Diameter | 0.9mm |
Length of Welding Cups | 4mm |
Rated Current | 10A |
Rated Voltage | 875V AC |
Insulator Resistance | 5000 mΩ[at 5000V AC] |
Contact Resistance | <=12.5 mΩ |
IP Rate | TIP50 |
Nuclear Online Radiation Monitoring Equipment:Matching wiring for online radiation detectors of CGN and Tongfang Industry.
Pulse & RF Ablation Medical Devices:Support wiring for radiofrequency & pulse ablation hosts (Biosense, Merit Medical)
Offshore Marine Environmental Monitoring Sensor:Harness for offshore nuclear pollution monitoring sensors
Semiconductor Plasma Auxiliary Detection Unit:Cabling for semiconductor plasma auxiliary inspection instruments
Rail-mounted Nuclear Inspection Equipment:Wiring of track-type nuclear radiation inspection device
Laboratory Biochemical Precision Analyzer:Cable for lab biochemistry precision analysis apparatus
A We hold ISO9001,ISO13485,CE,RoHS, targeted GJB & nuclear related inspection reports available upon request.
A Our production line supports non-standard wire diameter development to match special ablation and nuclear testing equipment.
A Provide pinout, cable parameter, finished length and application industry.
