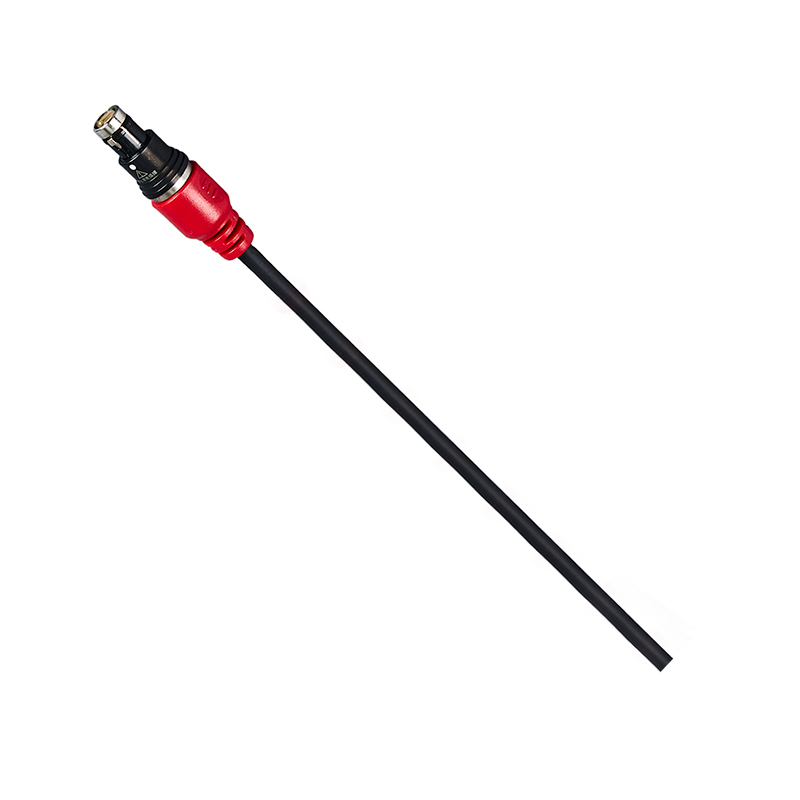

QM.JX22.928.110 (Cable with High Speed Differential Water-proof IP68 Plug JX-AC-3KT)

QM.JX22.928.110 (Cable with High Speed Differential Water-proof IP68 Plug JX-AC-3KT)

QM.JX22.928.110 is customized single-ended finished cable pre-assembled with IP68 waterproof JX-AC-3KT circular plug, specially customized for defense optoelectronics, semiconductor precision testing and high-end medical precision instrumentation equipment. All welding operations are completed in Class 1000 cleanroom following military processing standards, combining crimp connection and precision laser spot welding to construct high-stability circuit connection, suitable for long-term service under alternating temperature, damp and rugged field working environments.

Model:
QM.FX22.928.105 (FX104T02CC038A1N-HS)
Brand:
QM (QUANMA)

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Introduction

QM.JX22.928.110 is custom finished single-end cable assembled with IP68 waterproof JX-AC-3KT circular connectors, tailored for defense optoelectronic systems, wafer precision detection and advanced medical precision instruments. All bonding operations are completed inside thousand-grade dust-free workshops following military fabrication norms, combining crimp assembly and refined laser spot welding to form robust circuit connections, suited for long-term deployment amid drastic temperature shifts, humid surroundings and severe field working surroundings.

Product Advantage

IP68 Fully Sealed Waterproof Construction

The matched JX-AC-3KT connector features integral tail encapsulation with silicone rubber gaskets to attain IP68 ingress protection, blocking water intrusion effectively for submerged, seashore damp and open-air harsh installation scenarios.

RF & Power Hybrid Compact Layout English

Internal pin layout realizes high-frequency coaxial signal and power integration arrangement, optimized for miniaturized optoelectronic sight module internal wiring, effectively save limited cabin installation space of military portable equipment.

Mini 3-Pin Low-Voltage Internal Layout

Built around IF.303 three-core low-voltage layout with 1.3mm-diameter contact terminals, compact internal routing cuts mounting footprint for portable military inspection gear and miniaturized semiconductor detection modules.

RoHS Compliant Environment-Resistant Component Formula

Conductive terminals adopt tin bronze base with gold plating; connector shell uses brass finished with black chromium coating, other metal fittings are nickel-plated brass while insulating components adopt high-temperature tolerant PPS. All constituent materials comply with RoHS directives with outstanding anti-high-temperature and anti-salt-spray corrosion capability.

Diversified Custom Cable Matching for High-Speed Differential Transmission

Clients can select radiation-proof military-grade wiring, high-flex fluoroplastic medical cords or double-braided screened differential cables; terminal allocation, finished cable length and outer sheath dimension are tailor-made to satisfy customized demands across semiconductor, medical and defense sectors.

Military-Grade Anti-Vibration & Anti-Impact Structural Design

Constructed to military environmental criteria with superior shock and vibration endurance. Every production stage implements strict lab testing plus centralized test file archiving to achieve full lifecycle quality traceability, meeting incoming inspection benchmarks of military research institutes and listed medical manufacturers.

Technical Parameters

Parameters	Specifications
Operating Temperature	-55°C~150°C
Humidity(max)	<=95%[at 60°C/140°F]
Salt Spray Corrosion	96hr
Vibration	15g[10Hz~2000Hz]
Mating Cycles	5000+ times
Contact Material	Gold Plated Tin Bronze
Housing Material	PPSU
Insulator Material	PPS+PTFE
Hexagon Nut Material	Nickel-plated Brass
Contact Diameter	0.9mm
Length of Welding Cups	4mm
Rated Current	10A
Rated Voltage	875V AC
Insulator Resistance	5000 mΩ[at 5000V AC]
Contact Resistance	<=12.5 mΩ
IP Rate	TIP50

Product Uses

Semiconductor Wafer Inspection Equipment

Serves as high-speed differential signal transmission cabling for wafer probing equipment; built-in shielding design offsets onsite electromagnetic disturbance to stabilize detection data during continuous production.

Advanced Minimally Invasive Medical Devices

Works as internal connecting wiring for precision clinical testing apparatus; heat-resistant raw materials endure repeated high-temperature disinfection required by medical device operating norms.

Offshore & Coastal Military Electronic Hardware

Combined 96h salt mist tolerance and IP68 sealing makes it ideal for shipboard and shore-based optoelectronic device wiring under high-humidity salt-laden coastal atmosphere.

Vehicle & Airborne Portable Detectors

Anti-shock and anti-vibration structural features fit onboard airborne and vehicular inspection equipment for steady high-speed differential signal delivery under bumpy operating conditions.

Industrial Precision Measuring Instruments

Superior insulation and stable electrical characteristics fit sensor and precision test equipment cabling to guarantee precise high-speed differential data transfer.
