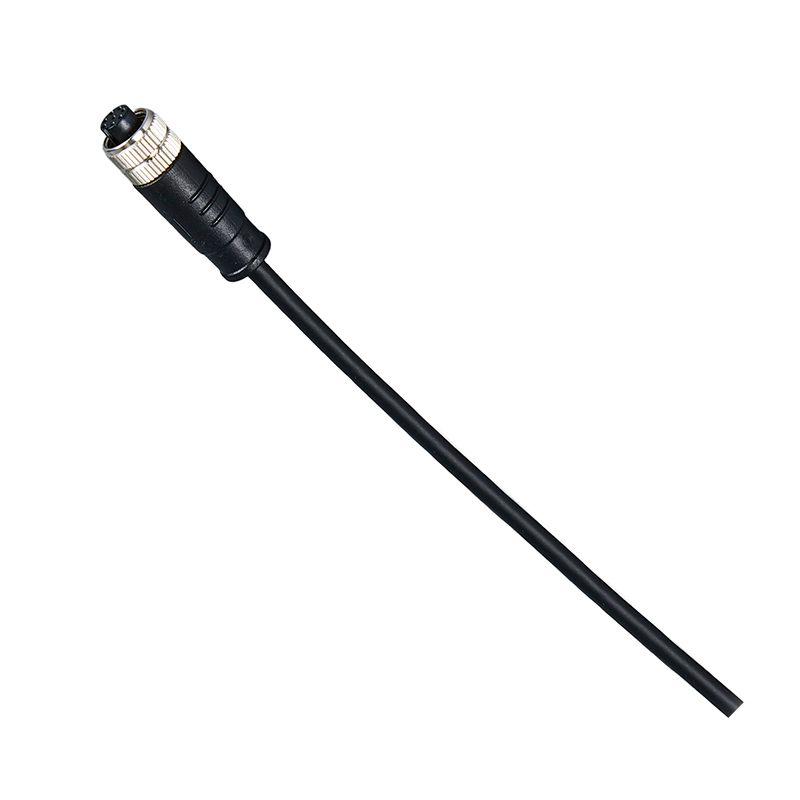

QM.M22.928.107 (Cable with High Speed Differential Plug GMA12FAF08ST)

Product Introduction

QM.M22.928.107 pre-assembled mini circular GMA12FAF08ST connector, specially customized for helmet communication headset, miniature nuclear personal dosimeter and miniature endoscopic probe, ultra-small size fit ultra-compact equipment internal wiring.

Product Advantage

Ultra-small Miniaturized Connector Structure

Miniature circular outline saves over 40% internal installation space compared with standard-size circular connectors, fitting confined inner cavity layout of miniature portable devices.

Lightweight High-density Pin Arrangement

High compact pin layout realizes multi-channel signal transmission within tiny housing, satisfy multi-signal integration demand of miniature OCT detection probes.

Custom Ultra-fine Specialized Cable Option

Extra-fine medical micro wire and lightweight radiation-resistant thin cable are optional to match slim probe and wearable detection hardware structural design.

Biocompatible & Radiation-resist Raw Material

Plating contacts and high-performance insulation material pass medical biocompatibility test and low-dose nuclear radiation endurance verification.

Micro-welding Process in Class1000 Clean Workshop

Micro spot welding finished inside cleanroom, avoid micro short-circuit induced by tiny impurity for ultra-fine circuit connection.

Technical Parameters

Parameters	Specifications
Operating Temperature	-55°C~150°C
Humidity(max)	<=95%[at 60°C/140°F]
Salt Spray Corrosion	96hr
Vibration	15g[10Hz~2000Hz]
Mating Cycles	5000+ times
Contact Material	Gold Plated Tin Bronze
Housing Material	PPSU
Insulator Material	PPS+PTFE
Hexagon Nut Material	Nickel-plated Brass
Contact Diameter	0.9mm
Length of Welding Cups	4mm
Rated Current	10A
Rated Voltage	875V AC
Insulator Resistance	5000 mΩ[at 5000V AC]
Contact Resistance	<=12.5 mΩ
IP Rate	TIP50

Product Uses

Internal connecting wire for military tactical communication headsets;

Signal harness of miniaturized OCT endoscopic detection probes;

Built-in wiring of pocket-sized nuclear radiation pen dosimeter;

Internal cabling for compact semiconductor miniature functional modules;

Connection cable of portable clinical electrocardiogram diagnostic equipment.

FAQ

Q What certifications can you provide for military and medical projects?

A We hold ISO9001,ISO13485,CE,RoHS, relevant GJB test report can be applied for military project as required.

Q Can ultra-fine medical catheter wire be customized?

A Two dedicated production workshops master ultra-fine welding technology, realize customized harness for ICE/OCT minimally invasive medical products.

Q What documents needed for quotation?

A For specific requirements, please contact our technic sales.
