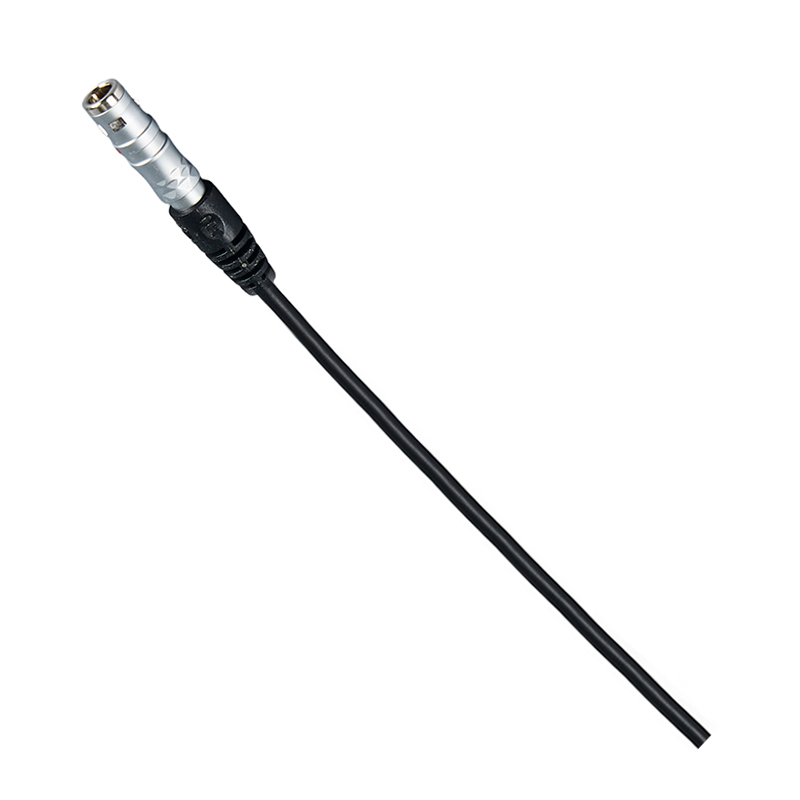

QM.B22.928.108 (Cable with High Speed Differential Plug TGG.0K.302.CLAD52Z)

QM.B22.928.108 (Cable with High Speed Differential Plug TGG.0K.302.CLAD52Z)

Preassembled medical-grade push-pull TGG.0K.302.CLAD52Z, PPSU housing withstands over 200 cycles of 134℃ sterilization, core application covers Class III interventional medical apparatus, semiconductor precision inspection equipment and nuclear laboratory analytical instruments.

Model:
QM.FX22.928.105 (FX104T02CC038A1N-HS)
Brand:
QM (QUANMA)

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Introduction

Preassembled medical-grade push-pull TGG.0K.302.CLAD52Z, PPSU housing withstands over 200 cycles of 134℃ sterilization, core application covers Class III interventional medical apparatus, semiconductor precision inspection equipment and nuclear laboratory analytical instruments.

Product Advantage

PPSU Housing High Sterilization Resistance Property

High-performance PPSU shell resists repeated high-pressure steam disinfection without deformation, fit cyclic sterilization demand of operating-room interventional instruments.

Tool-free Push-pull Quick Disconnect Structure

Self-locking push-pull structure enables one-hand rapid plug separation, convenient for clinical equipment emergency disassembly maintenance.

Medical Grade Biocompatible Inner Conductor Insulation

Inner insulation material passes biological cytotoxicity test, eligible for direct matching with intracavity interventional medical catheter equipment.

Anti-chemical Corrosion Outer Sheath Design

Special fluoroplastic outer jacket resists disinfectant liquid corrosion from hospital clinical environment and chemical solvent from semiconductor workshop.

Cleanroom Full Process Medical Standard Production

Whole assembly and welding implemented under medical-level clean production specification to avoid foreign matter pollution affecting medical equipment safety performance.

Technical Parameters

Parameters	Specifications
Operating Temperature	-55°C~150°C
Humidity(max)	<=95%[at 60°C/140°F]
Salt Spray Corrosion	96hr
Vibration	15g[10Hz~2000Hz]
Mating Cycles	5000+ times
Contact Material	Gold Plated Tin Bronze
Housing Material	PPSU
Insulator Material	PPS+PTFE
Hexagon Nut Material	Nickel-plated Brass
Contact Diameter	0.9mm
Length of Welding Cups	4mm
Rated Current	10A
Rated Voltage	875V AC
Insulator Resistance	5000 mΩ[at 5000V AC]
Contact Resistance	<=12.5 mΩ
IP Rate	TIP50

Product Uses

Coronary interventional consumable harness,semiconductor wafer precision inspection cable,nuclear chemistry lab analytical instrument wiring,high-frequency imaging diagnosis equipment in operating room.

FAQ

Q What certifications can you provide for military and medical projects?

A We hold ISO9001,ISO13485,CE,RoHS, relevant GJB test report can be applied for military project as required.

Q Can ultra-fine medical catheter wire be customized?

A Two dedicated production workshops master ultra-fine welding technology, realize customized harness for ICE/OCT minimally invasive medical products.
