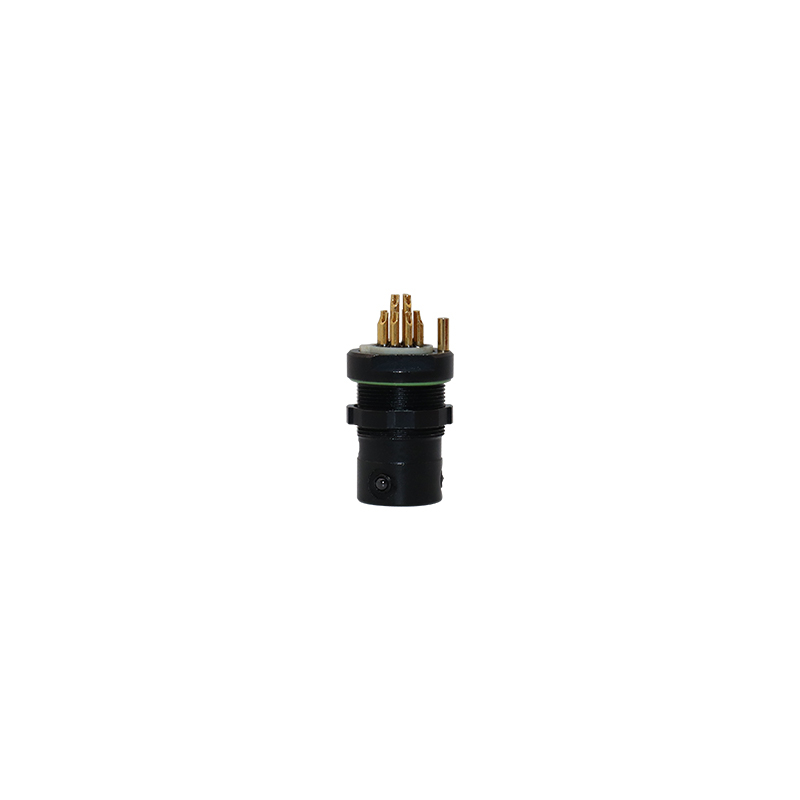

ZLZ2.0Q.0210.GKHL 12-Pin IP68 Waterproof Metal Hermaphroditic Push-pull Connector

Product Introduction

This ZLY hybrid push-pull connector is fabricated with upgraded monolithic injection-molded insulator, featuring separated layout for two kinds of pins with distinct diameters: 0.5mm power contacts and 0.7mm signal pins are physically isolated to restrain crosstalk from power loop to feeble signal channels. Its shell is CNC lathed from brass with black chrome finish alongside nickel-alloy lock nuts, while special low-temperature fused sealing filler delivers ultrahigh airtightness with ultimate leakage rate hitting 10⁻⁶mbar·l/s. Validated via cyclic thermal shock, alternating damp heat and heavy impact reliability tests, the component supports over 5000 reliable mating cycles; optimized wear-resistant push-pull latches effectively prevent unexpected disconnection under bumpy mobile operation. Surrounding annular shielding coating provides excellent wide-frequency EMI attenuation. Gold-plated bronze contacts and heat-resistant PEEK insulator pass 96-hour neutral salt spray assessment, enabling steady long-term operation amid -55℃~125℃, high-humidity sealed cabinet, temporary underwater immersion and other harsh environments. Its multi-function integrated design replaces numerous separate connectors to shrink equipment outline and simplify internal wiring, ideal for reconnaissance optoelectronic devices, field security detectors and aerospace auxiliary equipment; customized pin assignment is available to match clients’ PCB layout demands.

Product Advantage

Miniaturized Integration of Power & Signal

Integrated layout of ten power plus two signal pins realizes combined power and control signal transmission within individual unit, eliminating stacked installation of various discrete connectors and optimizing internal wiring space of end equipment.

Dual Protection: Ultra-high Hermetic Sealing & IP68 Rating

Beyond standard IP68 dust and water resistance, exclusive inner sealing filler achieves superior hermetic performance with max leakage of 10⁻⁶mbar・l/s, perfectly suited for pressure-tight sealed cabins and inert-gas-filled special apparatus with strict airtight requirements.

High Shock & Vibration Resistance with Durable Locking

Reinforced insert positioning and thickened lock plate withstand instantaneous 300g impact load to adapt high-frequency vibration from cruising UAV and mobile vehicle equipment; locking structure stays intact after 5000 insertions to avoid accidental unplugging during service.

Wideband EMI Shielding & Anti-interference Performance

Full circumferential metallic shielding reaches 75dB shielding efficiency at 10MHz and 40dB under 1GHz, filtering EMI generated from RF and variable-frequency peripherals to guarantee distortion-free transmission of high-definition video and low-speed control signals.

Corrosion-resistant Raw Material & Wide Climate Adaptability

Black-chrome brass housing, gold-plated bronze pins and high-temperature PEEK insulator pass 96-hour salt spray testing; electrical indicators remain stable under ≤95% RH @60℃ and fluctuating temperature ranging from -55℃ to 125℃.

Graded Contact Load & Stable Electrical Property

Two-dimension pins feature differentiated current rating: 2A for Φ0.5mm contacts and 7A for Φ0.7mm contacts with 900V AC rated voltage. Graded pins match diverse power loads steadily, while 5000MΩ insulation resistance ensures dependable conduction under continuous full-load operation.

Technical Parameters

Product Uses

UAV Pod Equipment

Matched for reconnaissance and aerial-survey UAV pods to integrate onboard power supply, gimbal control and HD video backhaul wiring. Superior shock and vibration resistance copes with airborne bump, while IP68 rating guards against dampness from high-altitude rain and dew.

Binocular Infrared Optoelectronic Observation Devices

Designed for military & civil night vision, laser ranging and thermal imaging binocular devices. Compact dimension saves inner lens room, and broadband shielding suppresses outside RF interference to realize integrated wiring for ranging power and thermal imaging signals.

Handheld Monocular Detector for Individual Soldier

Applied to individual night vision goggles and portable geological monocular detectors. Fast push-pull lock enables quick field wiring and detachment, and wide temperature adaptability fits desert cold and humid tropical field conditions.

Border Security & Field Command Equipment

Outdoor Industrial Precision Testing Instruments

This connector is a great choice for portable outdoor environmental monitoring, industrial precision testing and geological survey instruments. It offers strong resistance to extreme temperatures and high pressure, making it suitable for demanding outdoor working environments. Hybrid signal transmission supports the unified connection of high-frequency and low-voltage signals in detection equipment.

Aerospace Auxiliary Equipment

Serves as interconnect port for satellite ground auxiliary machines and miniature aerospace control assemblies. Ultrahigh airtightness fits inert-gas sealed cabin, and outstanding thermal & shock endurance meets ground bench test and simulated extreme temperature verification.

FAQ

Q: Can it transmit high-speed data? What types of high-speed data can it support?

A: Please find in the attached table.
